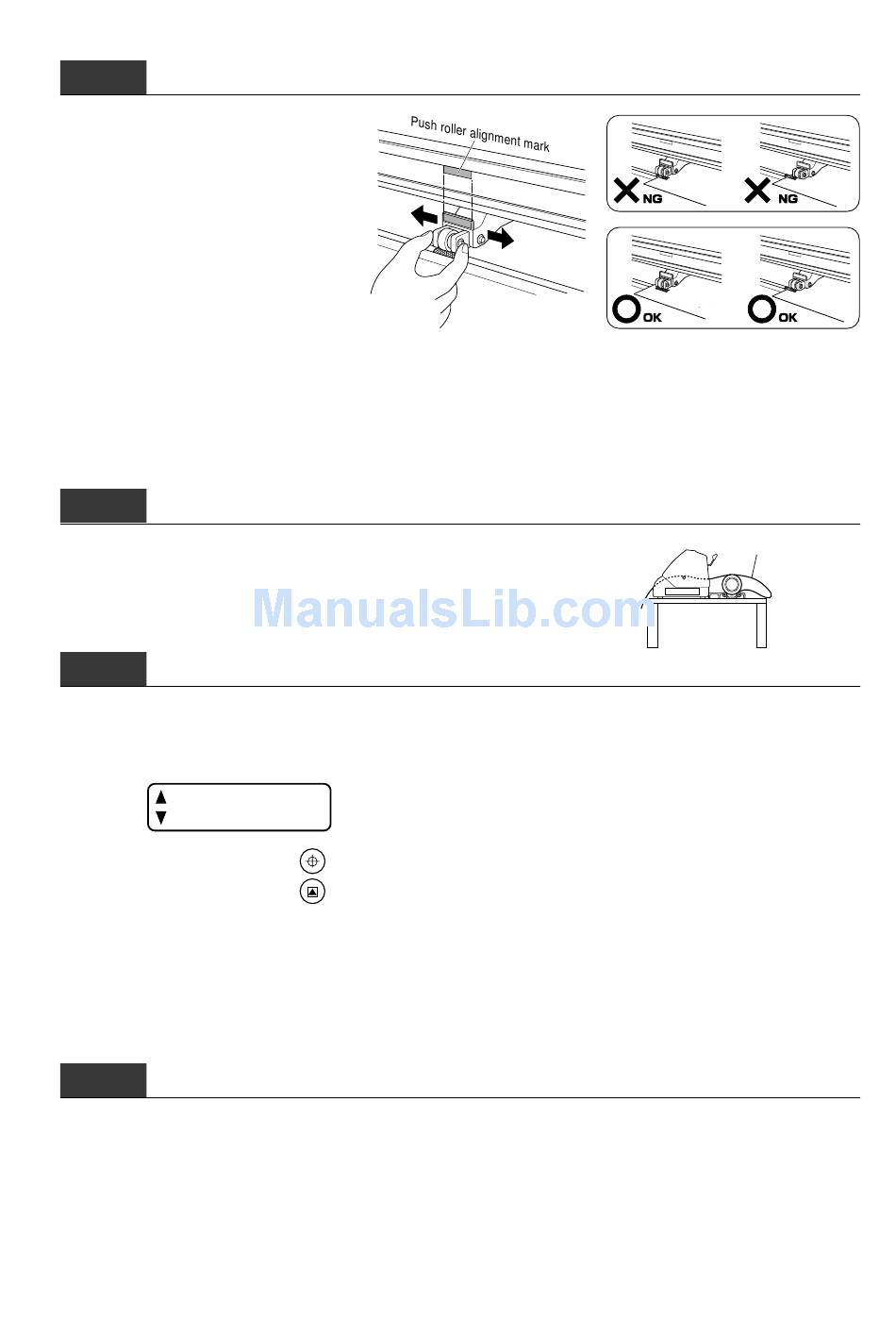

GRAPHTEC CE2000-60 User Manual page 25

4
Step
Adjust the position of the right and left
push rollers to suit the width of the
medium. Position each push roller at
its corresponding edge of the medium
so that it is above the grit roller. Move
the push rollers so that they are po-
sitioned inside the push roller align-
ment marks provided. (To move the
push rollers, the media set lever must
be in lowered position.)
If the "RELOAD MEDIA!" message appears when you lower the media set lever, the right pinch roller
is not positioned over the wider grit roller on the right. This message also appears if the left pinch roller
is not positioned over a grit roller or is positioned over the wider grit roller on the right. Check that
the right pinch roller is positioned over the wider grit roller on the right and that the left pinch roller
is positioned over a grit roller other than the wider one on the right.
5
Step
After ensuring that there is no slack in the medium's conveyance
path, raise the media set lever to lower the push rollers. As shown
in the figure, provide slack in the medium for a length corresponding
to the length of the medium you intend to cut or plot.
6
Step
If the cutting plotter has already been turned on when the push rollers are lowered by raising the media
set lever, a menu for selecting the media mode appears. Select the media mode (ROLL 1 or ROLL
2) to suit the roll medium you have just loaded.
ROLL 1
ROLL 2
To select ROLL 1, press the
To select ROLL 2, press the
When ROLL 1 is selected, the leading edge and side edges of the medium are detected. Select this
mode when you wish to begin cutting from the medium's leading edge. In this case, the origin point
is positioned along the leading edge.
When ROLL 2 is selected, only the medium's side edges are detected. Select this mode when you
wish to begin cutting at a point past the medium's leading edge. In this case, the position of the pen
carriage at the time the medium was loaded becomes the origin point.
7
Step
After the medium size has been detected, the cutting plotter awaits cutting data.
If the INTERFACE conditions and COMMAND mode have not been selected yet, select these settings
at this time (see Section 3.4, "Selecting the COMMAND Mode and INTERFACE Conditions"). If they
have already been set, proceed to adjust the cutter pen. After the cutter pen has been adjusted (see
Chapter 4, "PREPARING FOR A CUTTING OPERATION"), the cutting plotter is ready to perform cutting
so send cutting data from your application software at the computer.
key.
F1/ORIGIN
F2/TEST
key.
3 – 5
Provide slack
