v Ethernet activity LEDs: When these LEDs are lit, they indicate that the server is
v Ethernet status LEDs: When these LEDs are lit, they indicate that there is an
v Ethernet connectors: Use either of these connectors to connect the server to a

Internal LEDs, connectors, and jumpers

The illustrations in this section show the connectors, LEDs, and jumpers on the
internal boards. The illustrations might differ slightly from your hardware.

System-board internal connectors

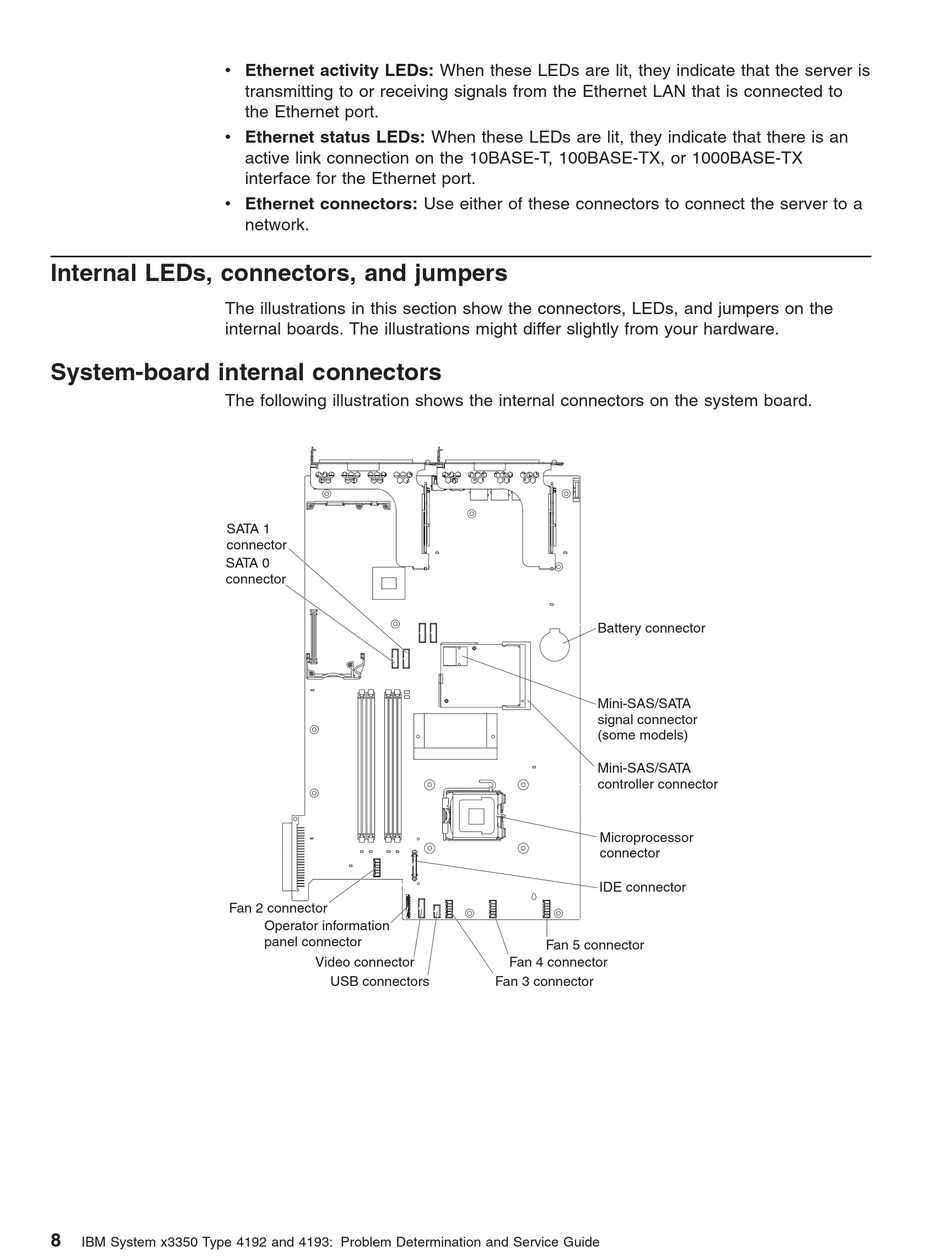

The following illustration shows the internal connectors on the system board.
SATA 1
connector
SATA 0
connector
Fan 2 connector
8
IBM System x3350 Type 4192 and 4193: Problem Determination and Service Guide
transmitting to or receiving signals from the Ethernet LAN that is connected to
the Ethernet port.
active link connection on the 10BASE-T, 100BASE-TX, or 1000BASE-TX
interface for the Ethernet port.
network.
Operator information
panel connector
Video connector
USB connectors
Battery connector
Mini-SAS/SATA
signal connector
(some models)
Mini-SAS/SATA
controller connector
Microprocessor
connector
IDE connector
Fan 5 connector
Fan 4 connector
Fan 3 connector
