STERNDRIVE (MCM) MODELS
2. Install shift cable into remote control. Refer to appropriate remote control instructions.
3. Loosen stud and move it to dimension as shown. Re-tighten stud.
4. Install drive unit shift cable. Tighten locknut until it contacts end guide, then loosen 1/2
turn. Insert cotter pin from the top and spread both ends.
Page 2A-24

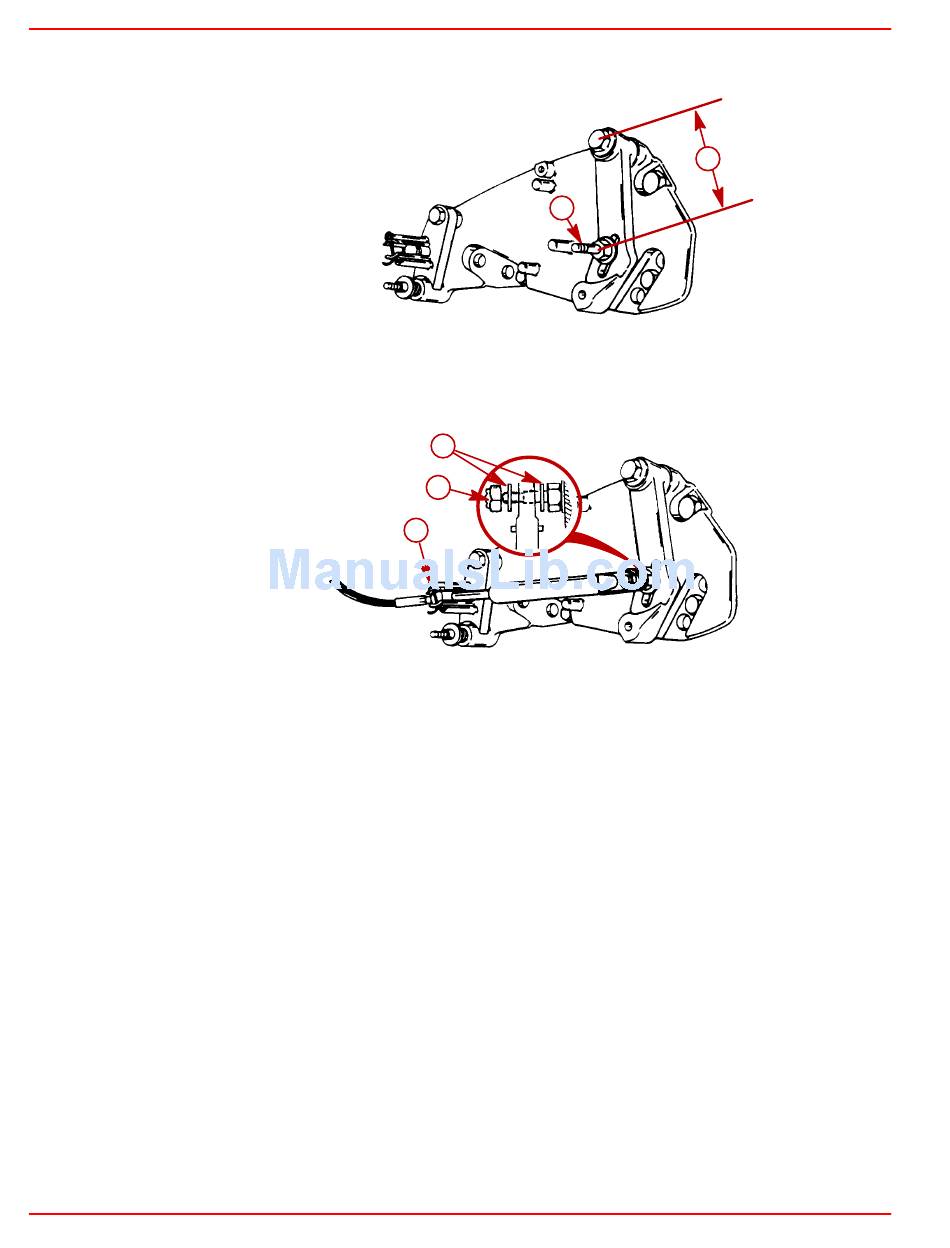

a - Stud
b - 76 mm (3 in.) - Center of Pivot Bolt to Center of Stud
a - Washers (2)
b - Locknut
c - Cotter Pin
a
a
b
c
