SERVICE MANUAL NUMBER 22

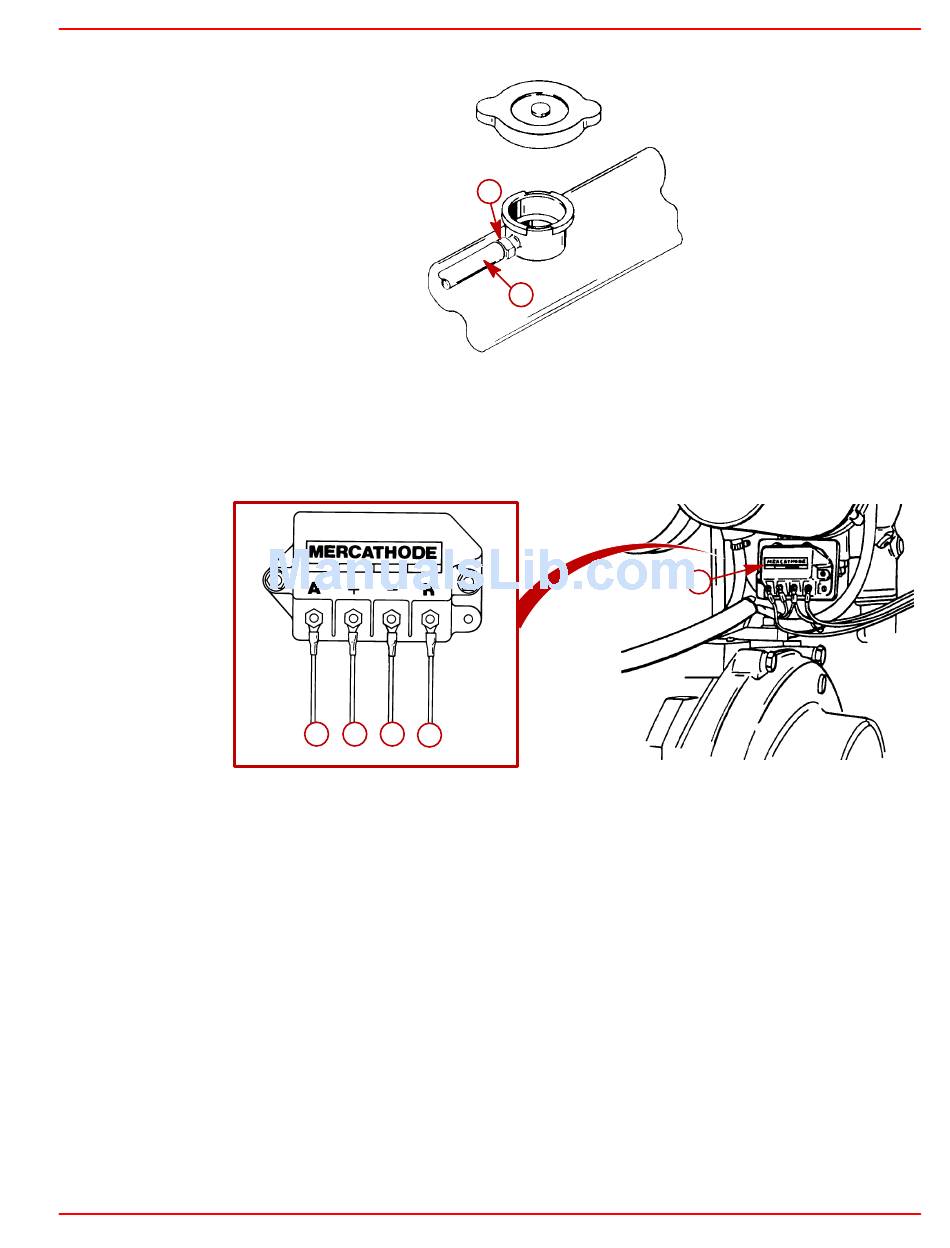

6. Connect coolant recovery bottle hose to heat exchanger and secure with clamp.
7. Connect MerCathode wires to MerCathode controller mounted on engine. Apply a thin
coat of Liquid Neoprene to ALL electrical connections.
90-860074--1 FEBRUARY 2002
a - Hose
b - Clamp
c
a
b
d
a - ORANGE Wire - From Electrode On Transom Assembly
b - RED/PURPLE Wire - Connect (other end) To Positive (+) Battery Terminal
c - BLACK Wire - From Engine Harness
d - BROWN Wire - From Electrode On Transom Assembly
e - Controller Assembly Location
b
a
22232
STERNDRIVE (MCM) MODELS
e
Page 2A-17
70548
71709
