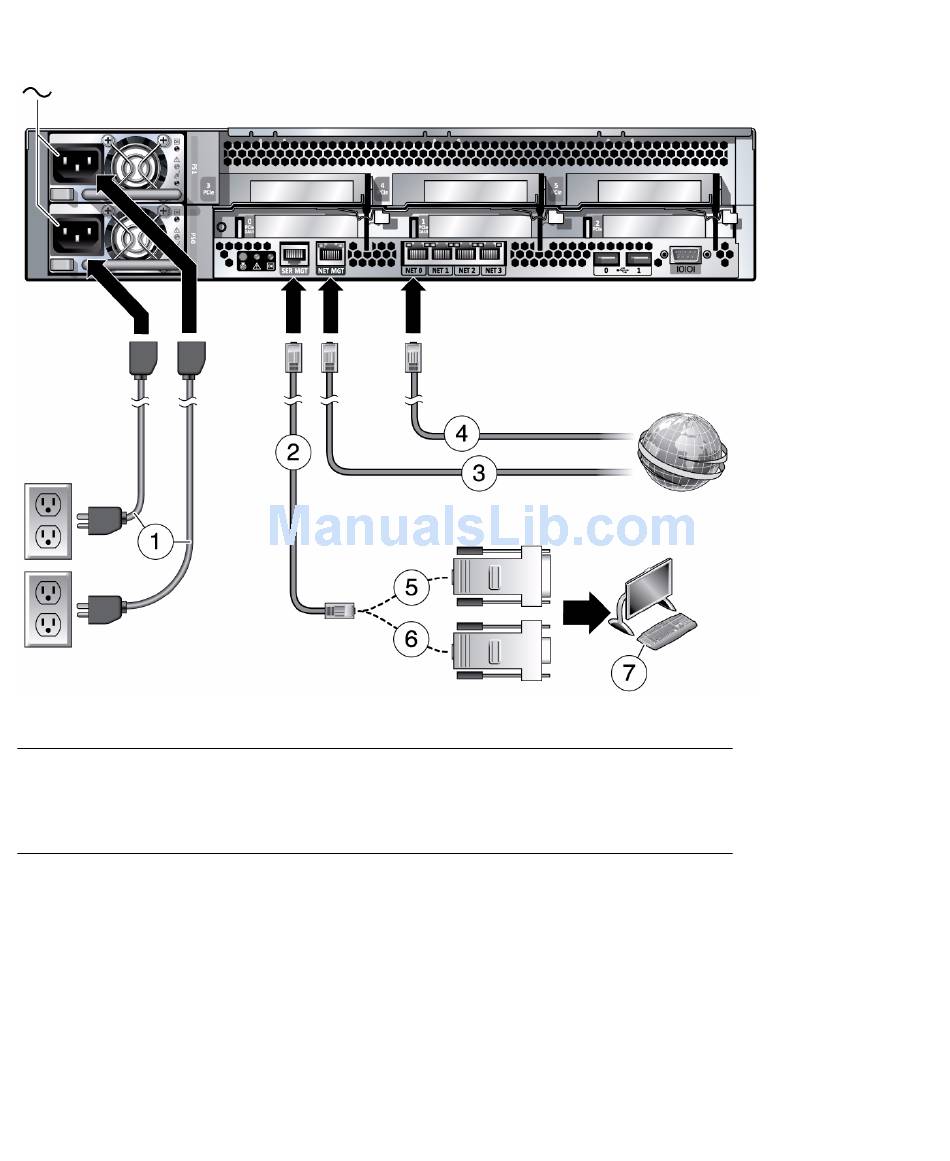

Server Connections
FIGURE:
Figure Legend
1
Power Cables
2
Ethernet cables
3
Service processor to ethernet
4
NET MGT to network (optional)
48
SPARC Enterprise T5120 and T5220 Servers Installation Guide • October 2010
5
RJ-45 to DB-25 crossover adapter
6
RJ-45 to DB-9 crossover adapter
7
Terminal device
