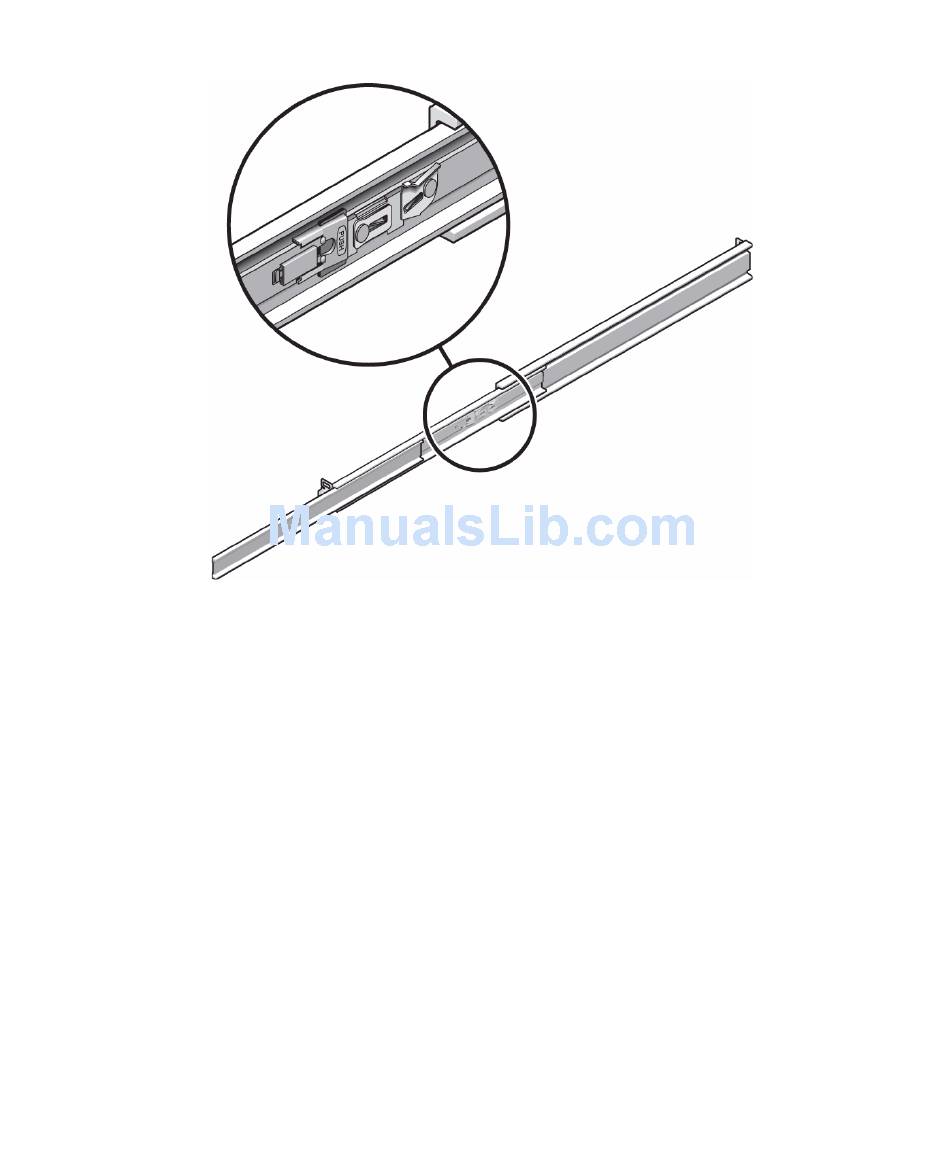

Unlocking the Slide Rail Middle Section (Either Server)

FIGURE:

2. Attach a mounting bracket to the right side of the chassis.

a. Position the mounting bracket against the chassis. Ensure that the slide rail

lock is at the front and the three keyed openings on the mounting bracket are

aligned with the three locating pins on the side of the chassis.

Installing the SPARC Enterprise T5120 and T5220 Servers
