The removable mounting bracket slides 14.5 in. (37 cm) out of the slide rail, then
■
locks in place. If you unlock the mounting bracket at this point, it slides an
additional 14.5 in. (37 cm) before separating from the slide rail. You can then
mount the mounting bracket to the right or left side of the server chassis.
Note that there are six locks in a slide rail assembly. Four are on the mounting
■
bracket. Two locks are on the slide rail.

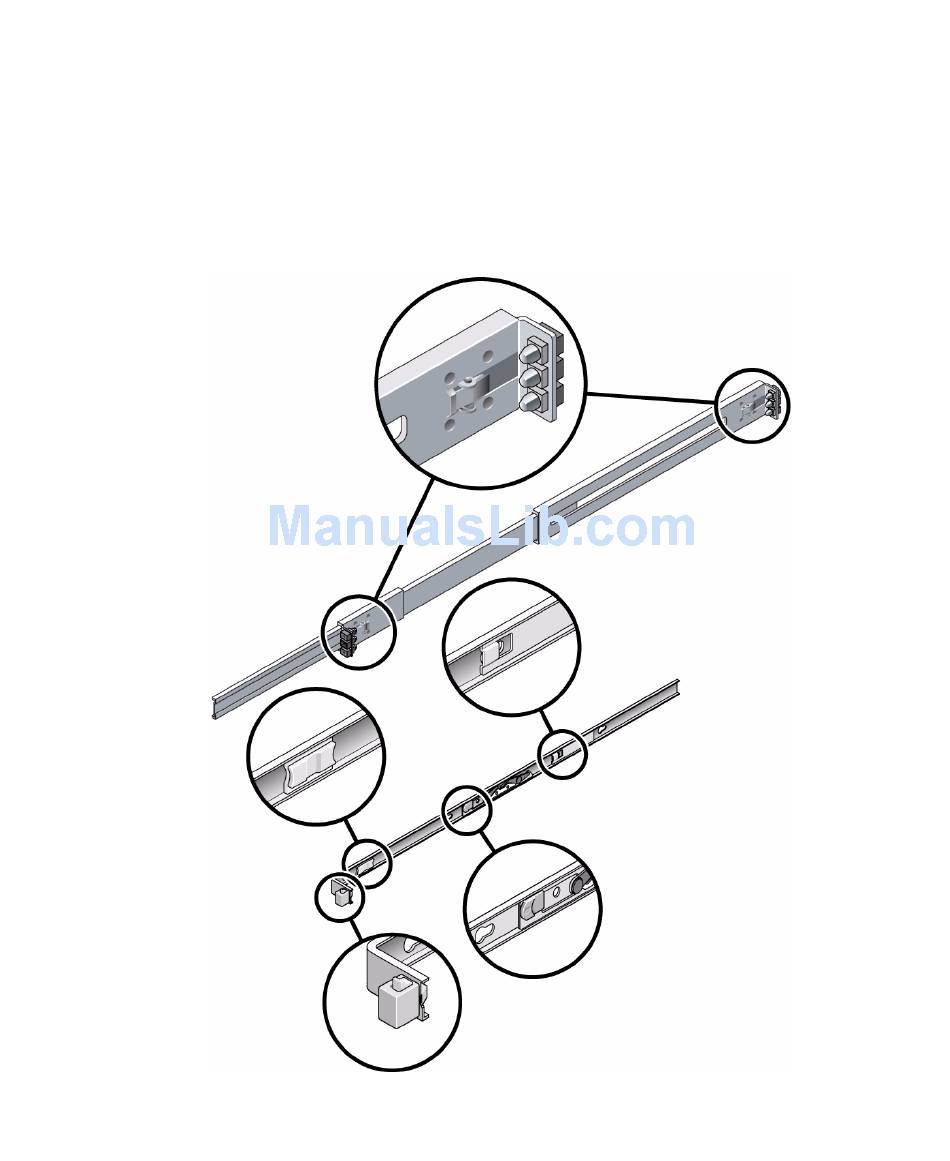

Locating the Locks on the Slide Rail Assembly for the SPARC Enterprise T5220
FIGURE:
Server
Installing the Servers With the Express Rail Rackmounting Kit
77
