FIGURE:
Figure Legend
1
6. Feed the exposed section of the appropriate wire into the round hole in the DC
input plug.
FIGURE:
Figure Legend
1
2
94
SPARC Enterprise T5120 and T5220 Servers Installation Guide • October 2010

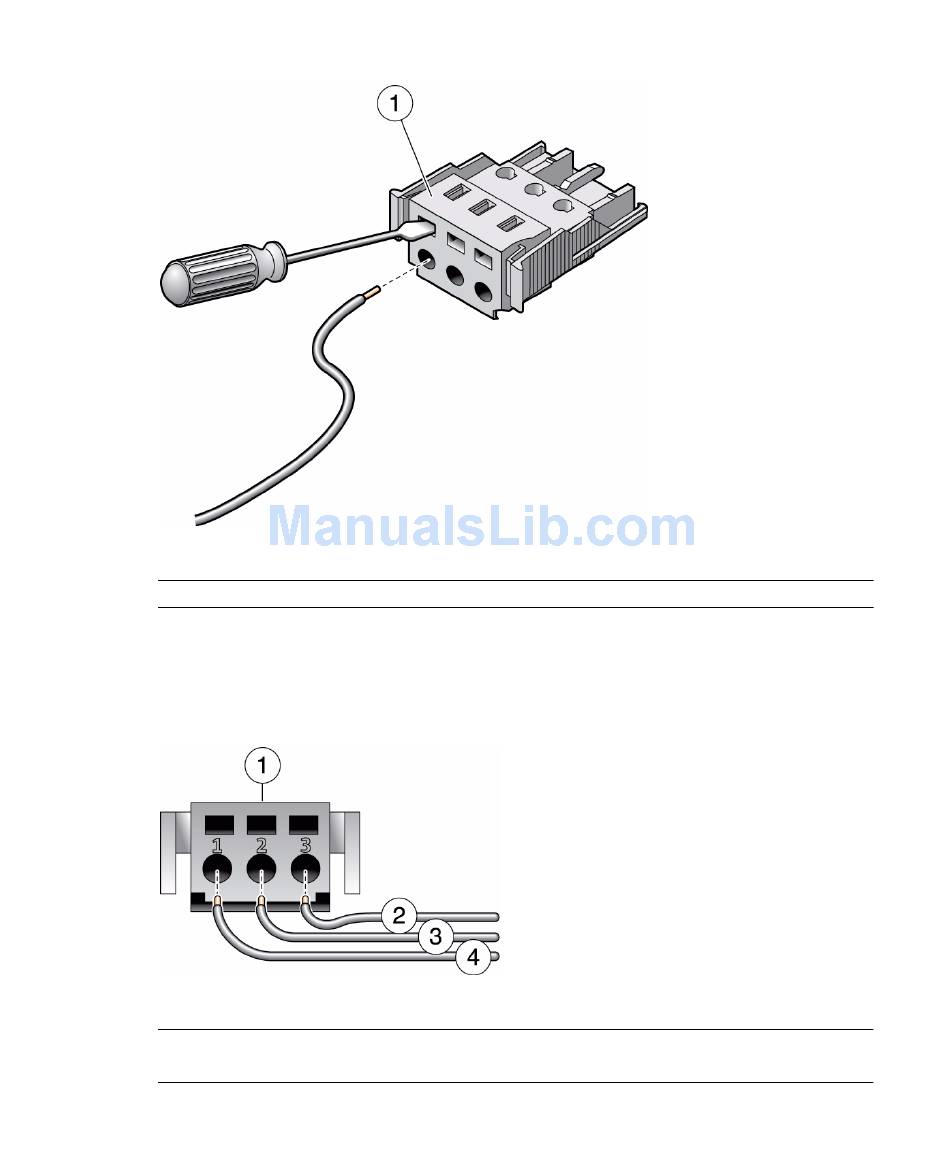

Opening the Cage Clamp Using a Screwdriver
Top of input plug
Connector Wiring Assignments
Top of connector
From -48V or -60V return
3
From chassis ground (green/yellow)
4
From -48V or -60V
