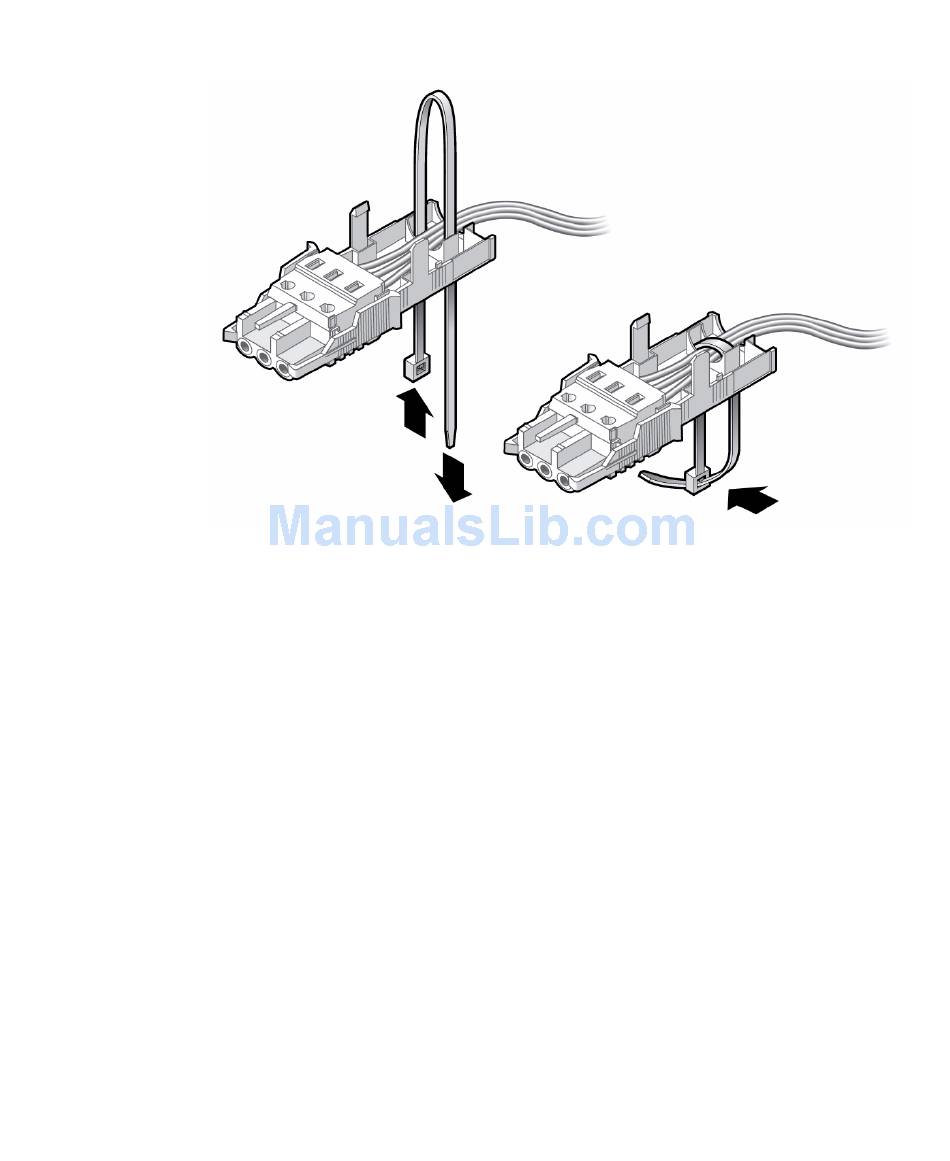

Securing the Wires to the Strain Relief Housing
FIGURE:
4. Loop the tie wrap over the wires and back out of the strain relief housing, and
tightening the tie wrap to secure the wires to the strain relief housing.
5. Lower the top portion of the strain relief housing so that the three prongs on the
top portion insert into the openings in the DC input plug.
Push the top and bottom portions of the strain relief housing together until they
snap into place.
Assembling and Installing DC Power Cables for the Sun SPARC Enterprise T5120 Server
97
