FIGURE:
2. Route the three wires coming from the DC power source through the opening at
the end of the bottom portion of the strain relief housing.
FIGURE:
3. Insert a tie wrap into the bottom portion of the strain relief housing.
96
SPARC Enterprise T5120 and T5220 Servers Installation Guide • October 2010

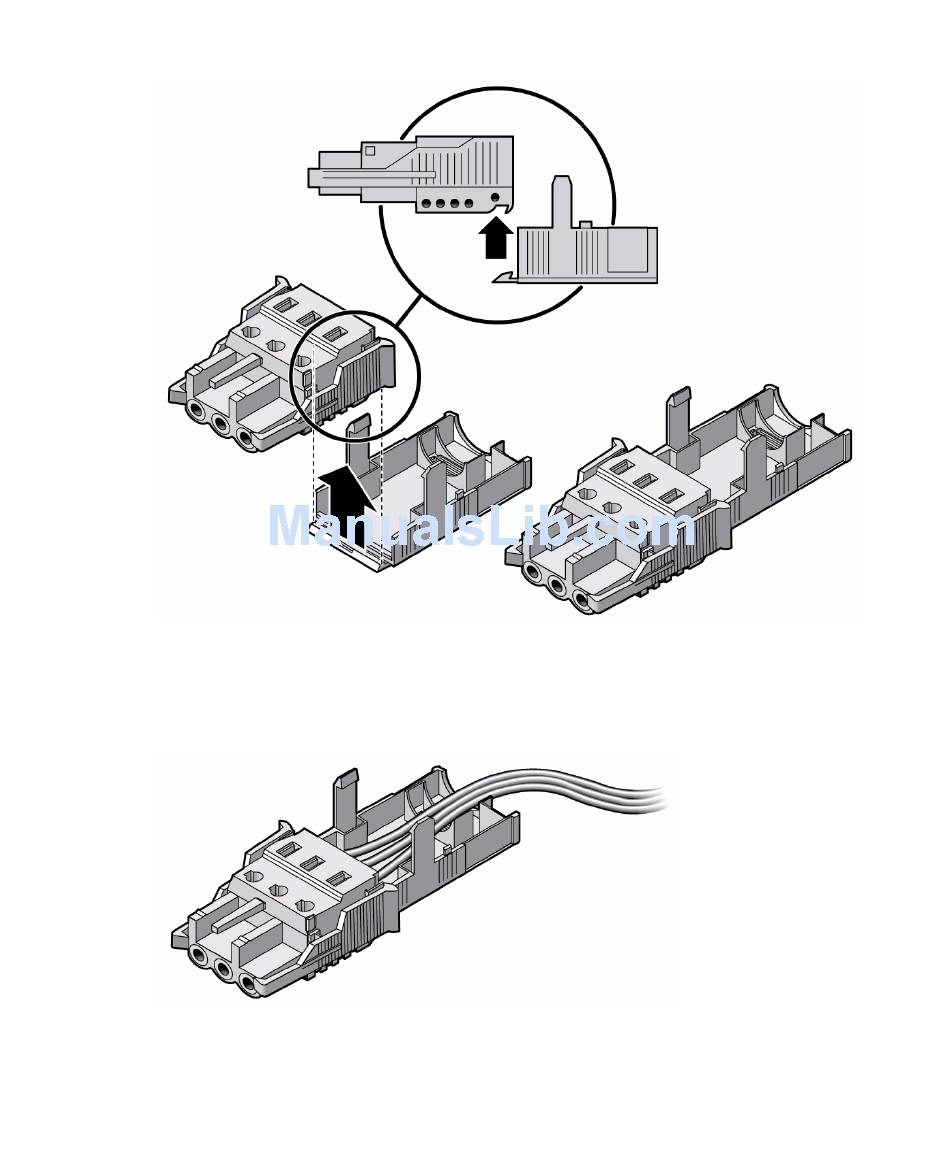

Inserting the Bottom Portion of the Strain Relief Housing
Routing the Wires out of the Bottom Portion of the Strain Relief Housing
