This section contains the following tasks:
"Assemble the DC Input Power Cables" on page 104
■
"Connect the DC Input Power Cords" on page 107
■
▼ Assemble the DC Input Power Cables
1. Turn off power from the DC power source using the circuit breakers.
Caution – Do not proceed with these instructions until you have turned off the
power from the DC power source through the circuit breakers.
2. Identify the parts that you will use to assemble the DC input power cables.

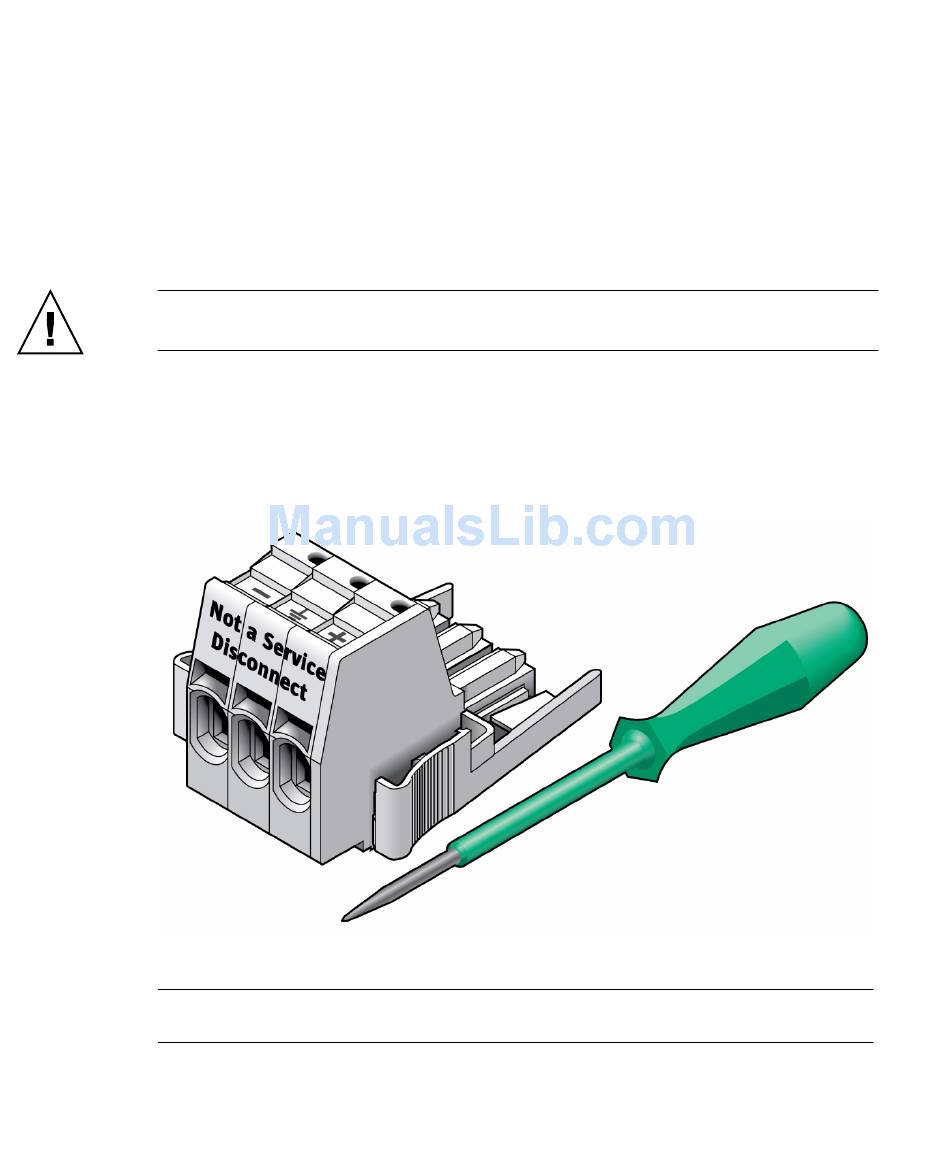

For each cable, you need the three parts shown in the figure below. These items
are provided in the shipping kit that came with your server (DC models only).
FIGURE:
Figure Legend
1
2
104 SPARC Enterprise T5120 and T5220 Servers Installation Guide • October 2010
DC Connection Parts
DC input plug
Cage clamp operating tool or small screwdriver
