Connect The Dc Input Power Cords - Sun Oracle SPARC T5120 Installation Manual

Connector Wiring Assignments

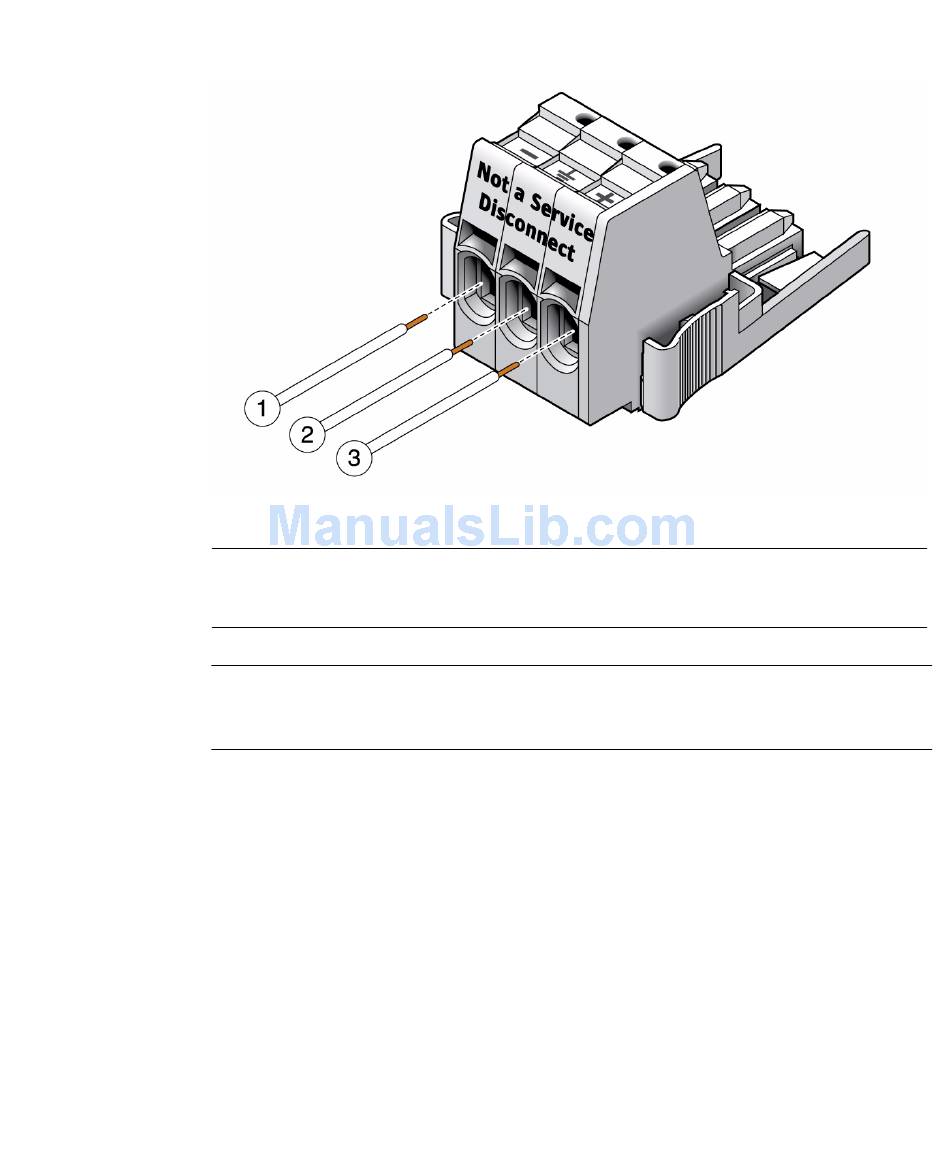

FIGURE:
Figure Legend
1 From -48V or -60V
2 From Chassis ground (green/yellow)
3 From -48V or -60V Return
Note – If you need to remove a wire from the DC input plug, insert the cage clamp
operating tool or a small screwdriver into the slot directly above the wire and push
in. Pull the wire from the DC input plug.
7. Remove the cage clamp tool to secure the wire.
8. Repeat Step 5
DC input power cable.
9. Repeat this procedure to create as many DC input power cables as you need for
your unit.

▼ Connect the DC Input Power Cords

1. Ensure that the circuit breaker to your power source is turned off.
Assembling and Installing DC Power Cables for the Sun SPARC Enterprise T5220 Server
and Step 6 for the other two wires to complete the assembly of the
