2. Insert the ends of the mounting brackets into the sliding rails.
3. Slide the server approximately halfway into the chassis.

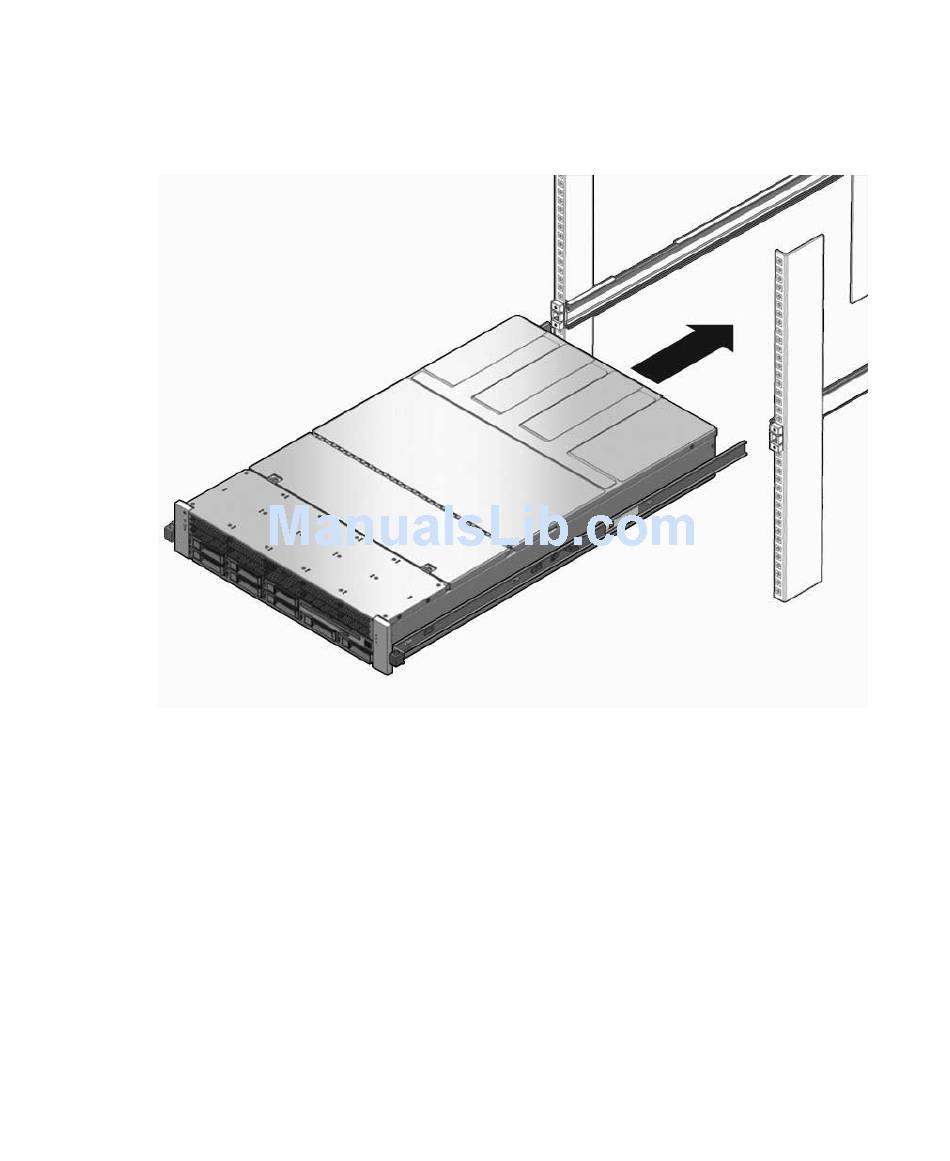

Inserting Express Rail Mounting Brackets Into the Slide Rails
FIGURE:
4. Slide the green release tab.
5. Push the server all the way into the rack until it locks into place.
84
SPARC Enterprise T5120 and T5220 Servers Installation Guide • October 2010
