This kit provides optional side trim pieces for the
original grille panel frame to fit 83-1/2" and 84-1/2"
installation heights.
To change grille panel size:
• Determine the installation height by measuring the
enclosure from the floor to the underside of soffit.
When there is no soffit, measure to the top of the
adjacent cabinets.
• Adjust refrigerator case trim to desired height. See
Product Installation.
• Select the side trim pieces for your installation height.

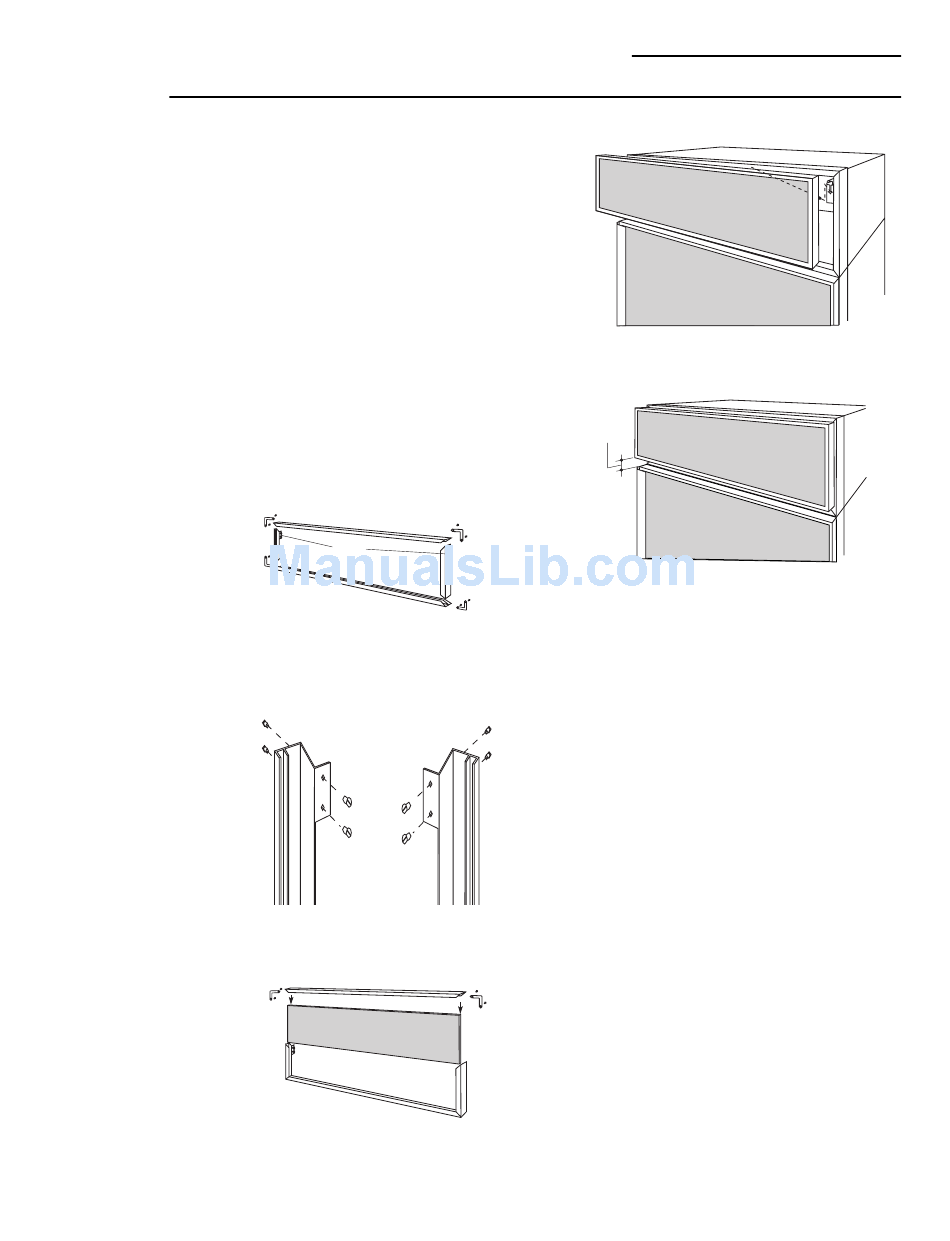

A. Locate original grille panel frame supplied with the
refrigerator.
• Remove 8 screws (two on each corner) and "L"
brackets as illustrated.
B. Select correct set of side trim pieces (2 sets
provided).
• Secure new side trim pieces to original bottom trim.
Barrel
Nuts
C. Remove barrel nuts from original side trim pieces (2
each side).
• Reinstall the barrel nuts on the new side trim pieces
you have selected. Discard original side trim.
D. Slide custom panel into front slots.
• Secure the top trim piece to the frame with "L"
brackets and screws.
ZGC2 Trim Kit
Grille panel frame adjustment
E. Mount the assembled panel by dropping into slots on
the case trim.
1-1/2"
min.
gap
Discard
Side Trim
Pieces
Important: Maintain 1-1/2" min. gap between top of door
and bottom of grille panel.
18
