Zkhc1 Trim Kit (For 1/4" Panels), Support For Custom Handles - Monogram ZIC36N RH Custom Options Manual And Installation Instructions

Tools and materials required:
• #2 Phillips screwdriver
• Drill and appropriate bits
• Custom door panels
• Custom Handles
• Safety glasses
Parts List:

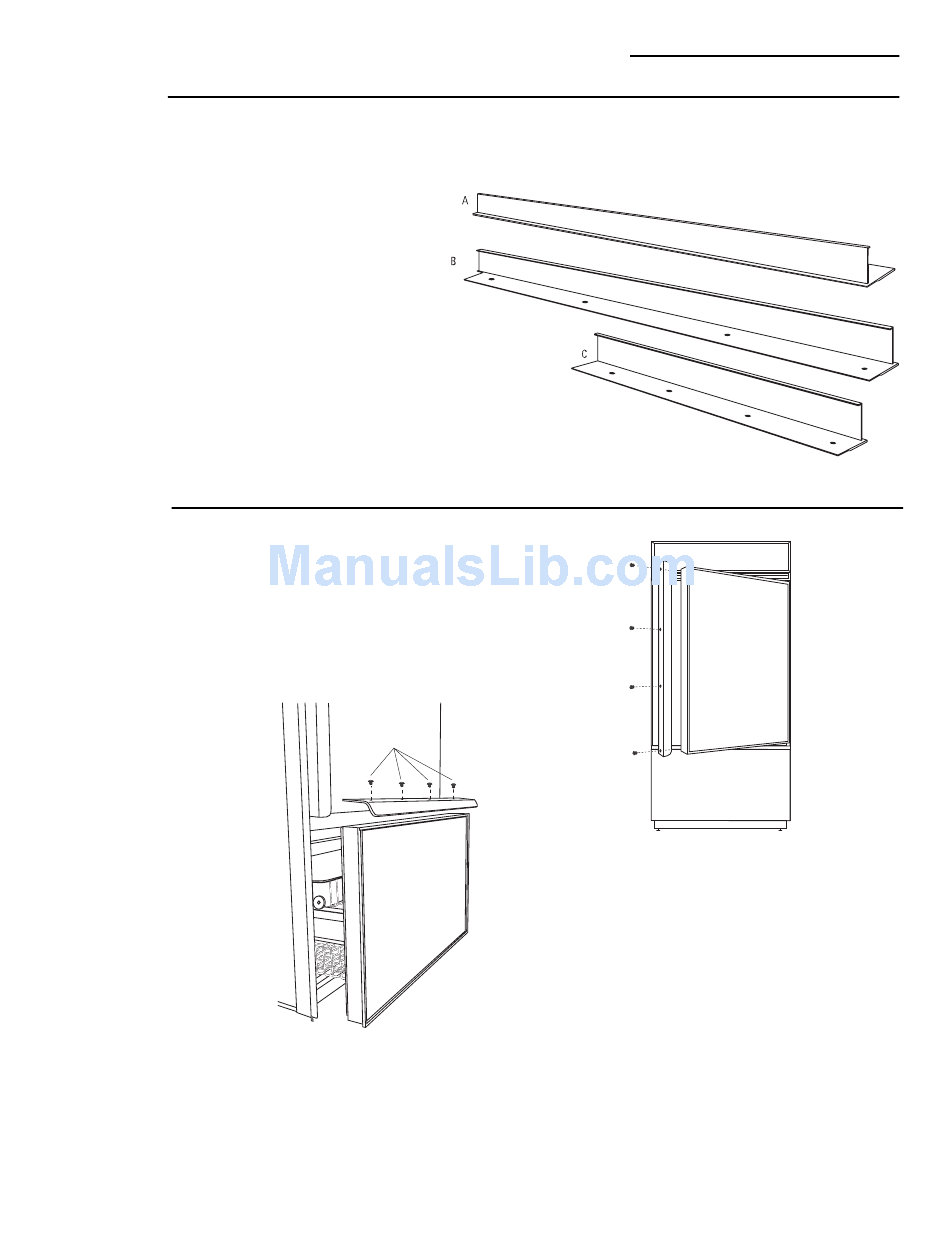

A. Fresh food door extrusion (for left hand models)
B. Fresh food door extrusion (for right hand models)
C. Freezer drawer extrusion
This kit provides the necessary framework to install
custom handles, of your choice, onto 1/4" thick custom
panels. (Handles not included.) The extrusions in this kit
allow the custom handles to be secured to the door
structure, rather than the door panels.
• Select fresh food extrusion for your model, discard
Step 1
Fresh food door:
Remove
• Open door to 90°. Remove the screws from the full
handles
• Retain screws. Discard handle.
Freezer drawer:
• Slide the freezer drawer open, about half way.
• Remove screws from the full-width aluminum handle.
other fresh food extrusion.
length aluminum handle.
Retain screws. Discard handle.
Remove
4 Screws
ZKHC1 Trim Kit (for 1/4" Panels)
Support for custom handles
Right hand door swing models are illustrated in these
instructions. Follow these instructions for left hand
models.
