Kit Contents
Right hand door swing models are illustrated in these
instructions. Follow these instructions for left hand
models.
Tools and materials required:
• #2 Phillips screwdriver
• Drill and appropriate bits
• Custom door panels
• Custom handles
• Safety glasses
Note: This kit must be used in combination with ZKTC36L
or ZKTC36R trim kit for 3/4" panel trim.

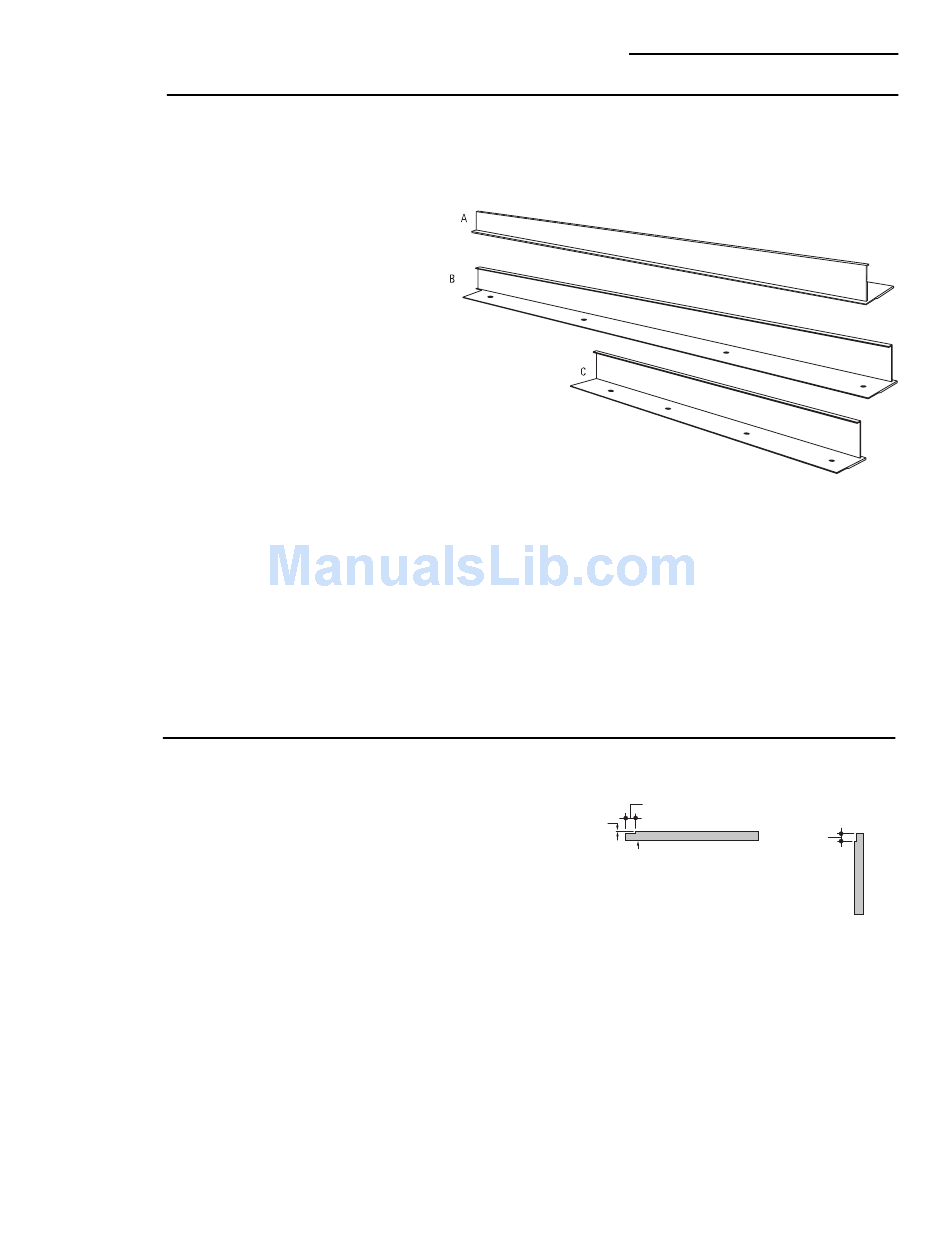

Part List:
A. Fresh food handle extrusion (for left hand models)
B. Fresh food handle extrusion (for right hand models)
C. Freezer drawer extrusion
This kit provides the necessary framework to install
custom handles, of your choice , onto 3/4" thick
decorator door panels. (Handles not included.) The
door extrusions allow the custom handles to be
secured to the door structure, rather than the door
panels.
• Select fresh food handle extrusion for your model,
Before 3/4" custom door panels must be routed to accommo-
you begin
date these door handle extrusions. Rout the panels as
illustrated, 1/4" deep, and 1-13/16" wide on the handle
side of the fresh food panel and the top end of the
freezer panel.
Refer to installation instructions for ZKTC36L or
ZKTC36R trim kit for 3/4" custom panels:
• Follow Step 1 to remove the standard aluminum trim.
• Follow Steps 2 and 3 to attach new 3/4" trim pieces
and to install panel support brackets.
discard other fresh food extrusion.
ZKHTC1 Trim Kit (For 3/4" Panels)
Support for Custom Handles
Fresh Food Panel
1-13/16"
Back Side
1/4" Max.
Handle Side
Caution: Optimal final appearance depends on careful
routing depth. Do not exceed 1/4" routing depth
Freezer Drawer Panel
Handle
End
1-13/16"
Back Side
