Right hand door swing models are illustrated in these
instructions. Follow these instructions for left hand
models.
Note: It is best that 2 people install this kit.
Tools and materials required:
• #2 Phillips screwdriver
• Drill and appropriate bits
• Custom door & drawer panels
• Safety glasses
• Center punch
• Masking tape
• Hammer
• Pencil
• 1/2" thick 12" x 12" min. piece of plywood to protect
• For stainless steel panels, wear gloves to protect
Parts List:
A. Handle extrusion (for left hand models)
B. Handle extrusion (for right hand models)
C. Freezer handle extrusion.
D. Fresh food and freezer door handles
E. 6 Spacer rings (for Stainless Panels ONLY)
F. 4 Handle standoffs
G. 6 Screws for mounting handle standoffs
H. 6 Set screws (4 required, 2 extra)
I. 3/32" Allen wrench for set screws
Step 1
Fresh food door:
Remove
• Open fresh food door to 90°. Remove the
handles
• Retain screws, discard handle.
Freezer drawer:
• Slide the drawer open about half way.
• Carefully remove the Phillips head screws
• Retain screws, discard handle.
floor when drilling
against sharp edges.
(4 required, 2 extra)
(4 required, 2 extra)
screws from the full-length handle.
from the top trim. Lift off handle.
ZKHCSS1 Trim Kit (For 1/4" Panels)
Tubular Stainless Steel Handles
This kit provides for the installation of Stainless Steel
handles on 1/4" thick decorator door panels. The door
extrusions allow these custom handles to be secured
to the door structure, rather than to the custom panels.
• Select fresh food extrusion for your model, discard
other fresh food extrusion.

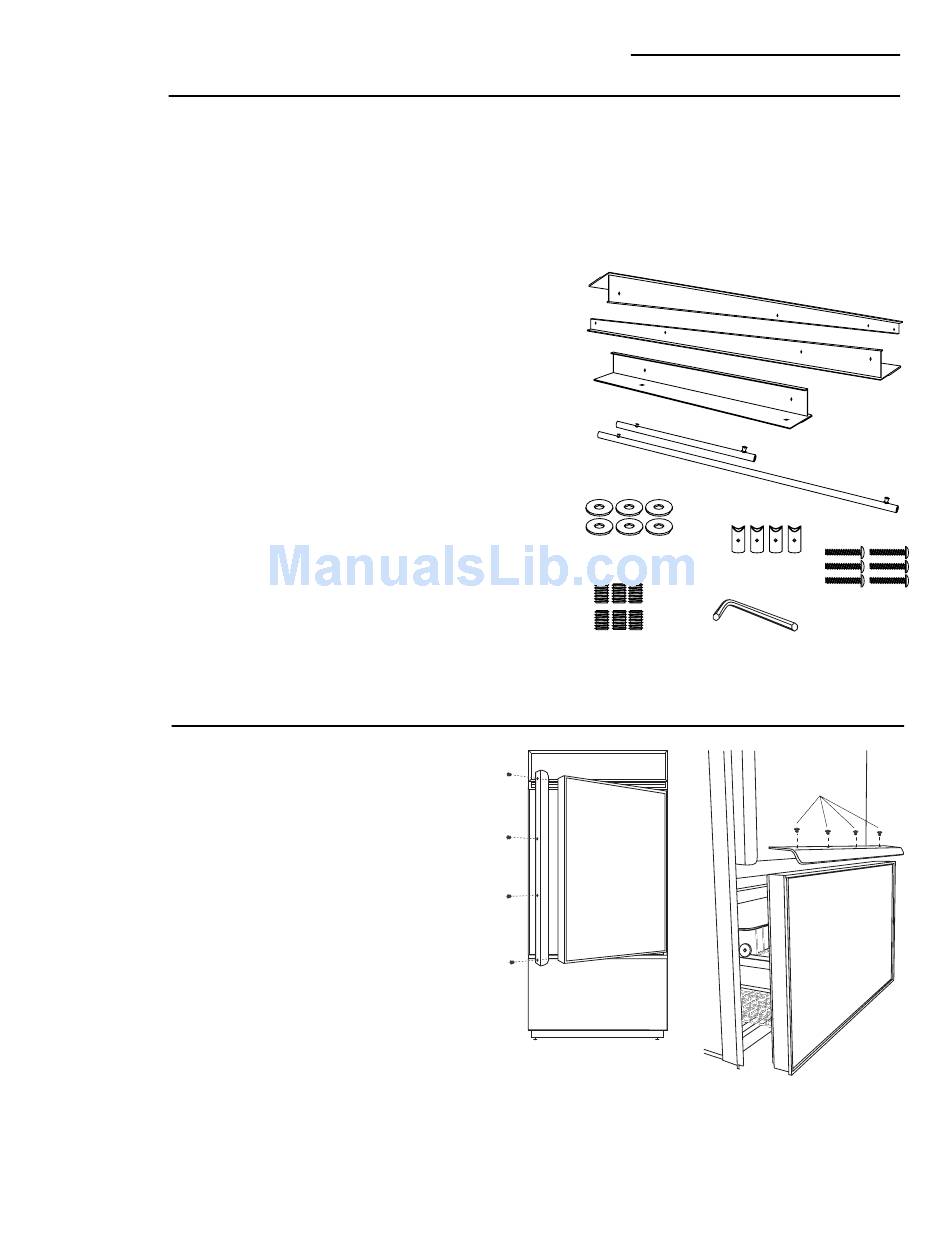

A
B
C
D
E
H
F
G
I
Remove
4 Screws
32
