Installation Examples
Installation
Between
Base &
Wall Cabinets
Note: 1/4" thick side panels can be
inserted into the case trim, making the
rough-in the same as the outside trim
width, 36".
Installation
At End-of-Run
Note: 1/2" thick side panels shown. Side panels can
be any thickness. Add side panel thickness to outside
trim width (36") to calculate the rough-in dimension.
The leading (front) edge must be finished to match
surrounding cabinetry.
Frameless
Cabinets
These refrigerators require field installed door and grille
Accessory
panels.The factory installed trim will accept accessory
Panel Kits
panel kits. White or black Lexan
kits are available. Panels are cut to size and ready to
install. These panel kits must be ordered separately.
ZWBC36, Black Lexan
ZWWC36, White Lexan
ZWSC36, Stainless Steel Panels
Side panels are required whenever the sides of the refrigera-
tor will be exposed.
1/2" to 3/4" side panels are normally set into place and
fastened to adjacent cabinetry or to the back wall before
rolling the refrigerator into the opening.
Roughed-In Dim.
Roughed-In Dim.
Side panels, 1/2" minimum thickness are required when
using frameless cabinets. The side panel acts as a
spacer between the cabinet and the case trim and
prevents interference with cabinet door swing. The
leading (front) edge must be finished to match
surrounding cabinetry.
®
Panels
®
Panels
Design Information
Therefore, the rough-in dimensions must allow for side panel
thickness. In both a flush and semi-flush installation, the
finished dimension, (the width of the opening after side panels
are installed), must accommodate the full width of the
refrigerator.
See page 11 for side panel sizes.
Flush and Semi-Flush
Installations
1/4" Thick
Side Panels
Finished Dim.
35-1/2"
36"
Flush and Semi-Flush
Installations
1/2" Thick
Side Panels
36"
Finished Dim.
37"
1/2" To 3/4" Side Panels. Leading
Edge Flush With Cabinet
A wide range of custom appearance options can be
created with optional trim kits. See page 6 for examples
®
and stainless steel and trim kit descriptions.

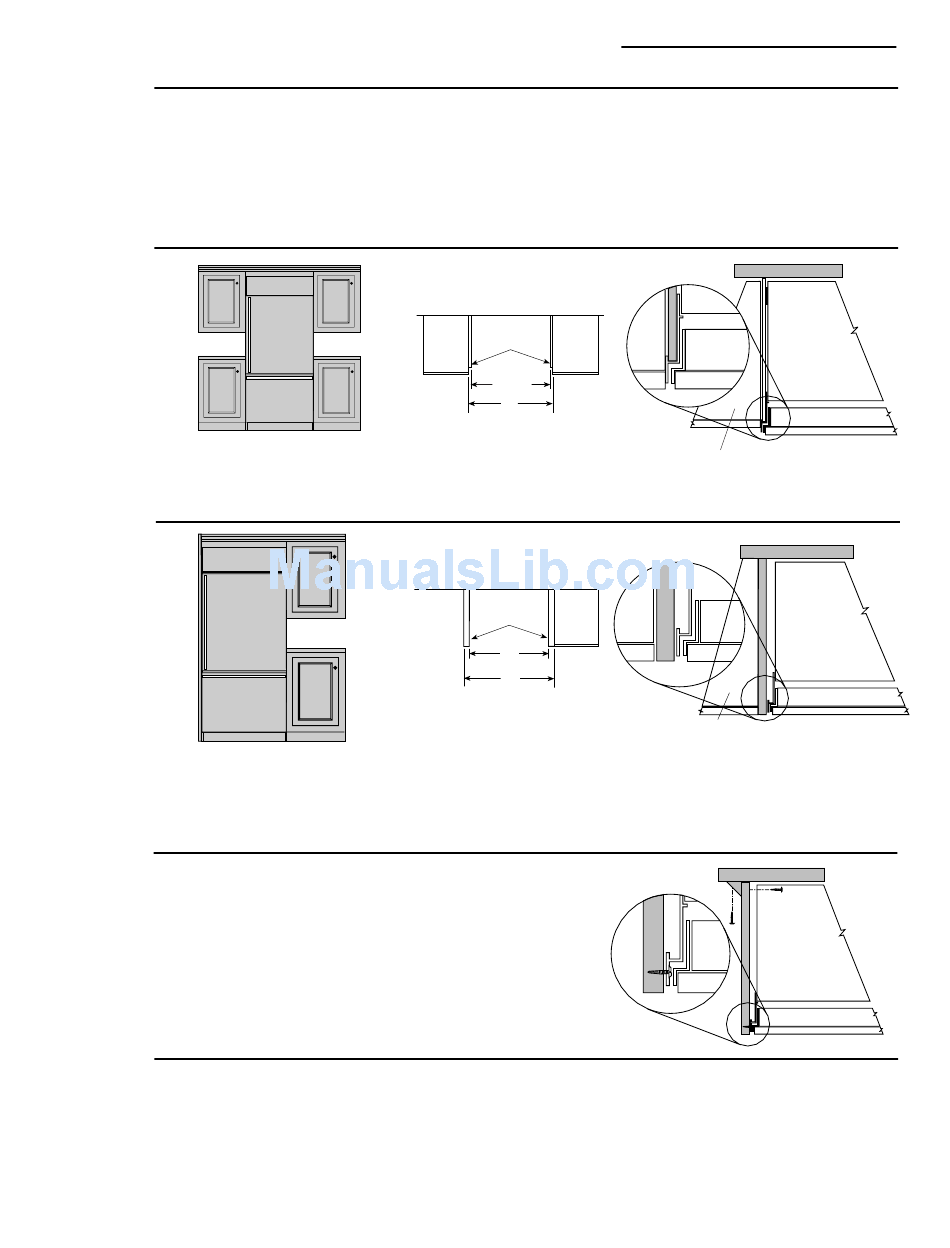

36" Bottom Mount Refrigerators
Refrigerator
Cabinet
Refrigerator door
Cabinet
1/4" Side Panels. Insert end of
side panel into trim
Refrigerator
Cabinet
Refrigerator door
Cabinet
1/2" To 3/4" Side Panels. Leading
Edge Flush With Cabinet
Refrigerator
Cabinet
Refrigerator door
