3/4" Thick Panels With Supplied Handle, Zktc36L Or Zktc36R - Monogram ZIC36N RH Custom Options Manual And Installation Instructions

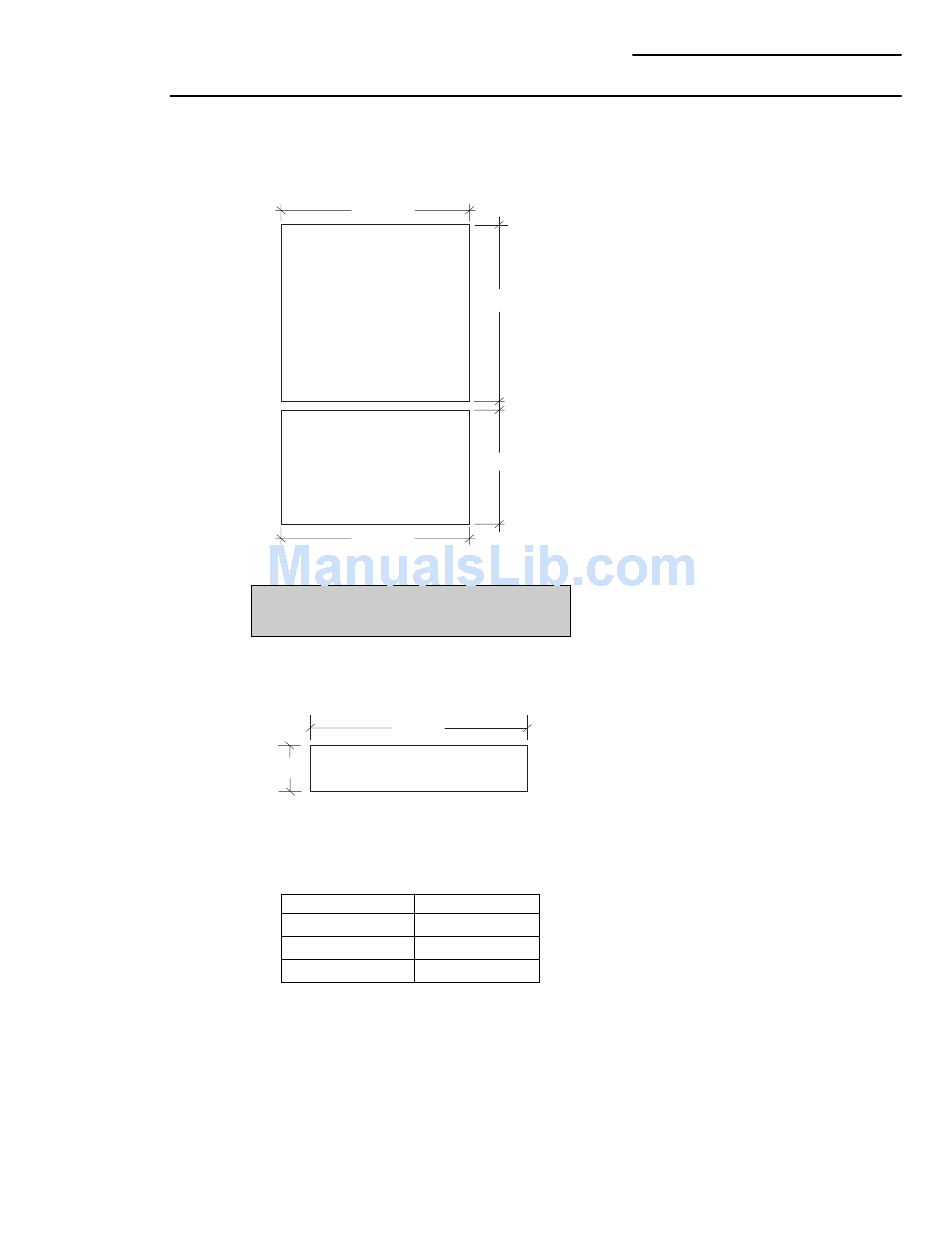

Custom Door Panel Dimensions
Using Trim Kits ZKTC36L or ZKTC36R
3/4" thick panel with kit supplied handle
35 -1/16"
Fresh Food Panel
Freezer Panel
35 -1/4"
Caution: Maximum weight for fresh food panel is
50 pounds and 30 pounds for freezer drawer panel.
Custom Grille Panel
35 1/4"
A 3/4" Thick Panel
Grille Panel height can vary to fill installation
height.
Installation Height
83-1/2"
84"
84-1/2"
Important: Maintain 1-1/2" min. gap between
top of door and bottom of grille panel.
Custom Panel Dimensions
ZIS36N Bottom Mount Refrigerator
• The ZKTC36L (or ZKTC36R) trim kit provides for the
installation of 3/4" thick custom door and grille panels,
using the supplied handle. Cut panels to size and
install.
45-9/16"
21-11/16"
Dimension A
7-3/4"
8-1/4"
8-3/4"
36" Bottom Mount Refrigerator
9
