Polycom VSX 3000 Administrator's Manual page 50

Administrator's Guide for the VSX Series
VSX 5000
VSX 6000
VSX 7000
VSX 7000s
50 ft (15 m)
2457-20910-050
or 30 ft (9 m)
2457-20910-001
The ferrite bead
must be at the
end connected
to the system.
VSX 5000
VSX 6000
VSX 7000
50 ft (15 m)
2457-20910-050
or 30 ft (9 m)
2457-20910-001
The ferrite bead
must be at the end
connected to the
system.
2 - 28

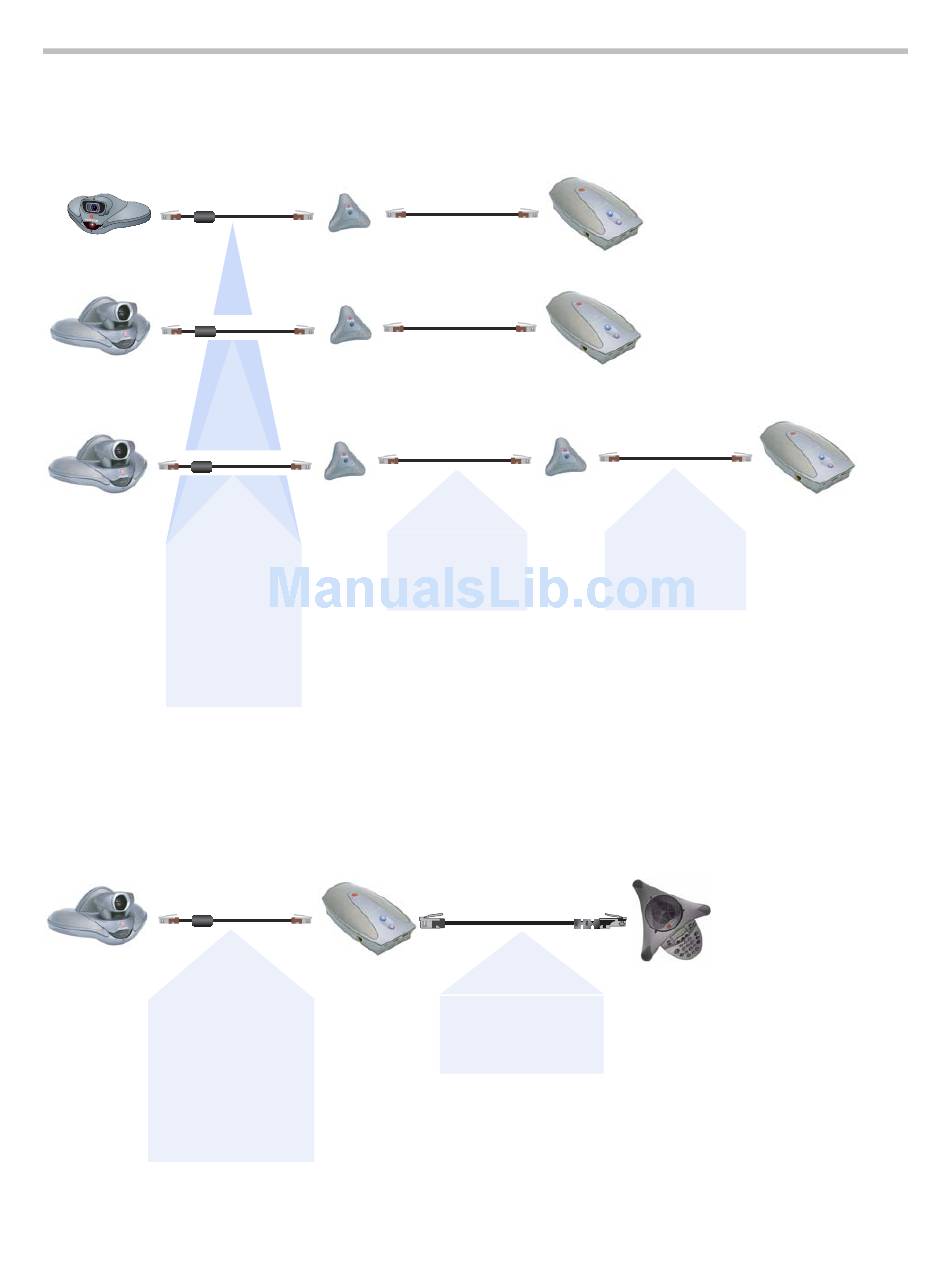

The following diagram shows supported cable configurations for connecting
a Visual Concert VSX with one microphone or two microphones.
30 ft (9 m)
2457-20910-003
or 10 ft (3 m)
2457-20910-002
The following diagram shows supported cable configurations for connecting
a Visual Concert VSX with a SoundStation VTX 1000 conference phone.
10 ft (9 m)
2457-21624-001
or 3 ft (0.9 m)
2457-21625-001
.
The Visual Concert VSX
or microphones may be
connected in any order.
30 ft (9 m)
2457-20910-003
or 10 ft (3 m)
2457-20910-002
The Visual Concert VSX and
the SoundStation VTX 1000
must be connected in this
order.
