32
Concord 4
Installation Manual
SuperBus 2000 8Z input and SuperBus 2000 4-relay output module
Connect the modules to the panel as shown in Figure 22. Connect all necessary input and output wiring using
the documentation that accompanies the module.

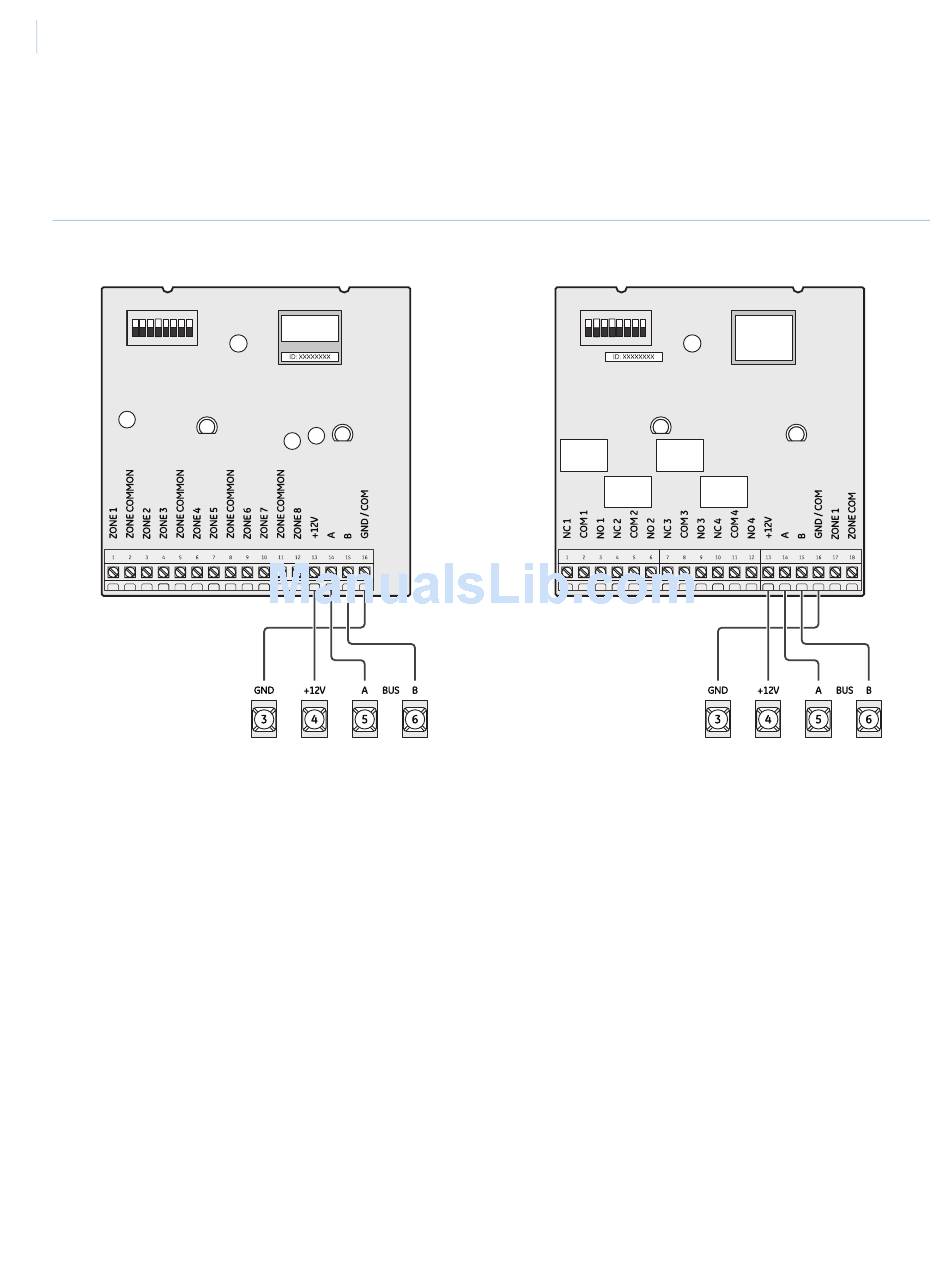

Figure 22. Wiring input and output modules to the panel
Input module
Output module
