Figure 12. Connecting an interior siren

Connecting an Interrogator 200 audio verification module

Connect the Interrogator 200 audio verification module (AVM) to the panel terminals as shown in Figure 13.
Partition 1 use only.

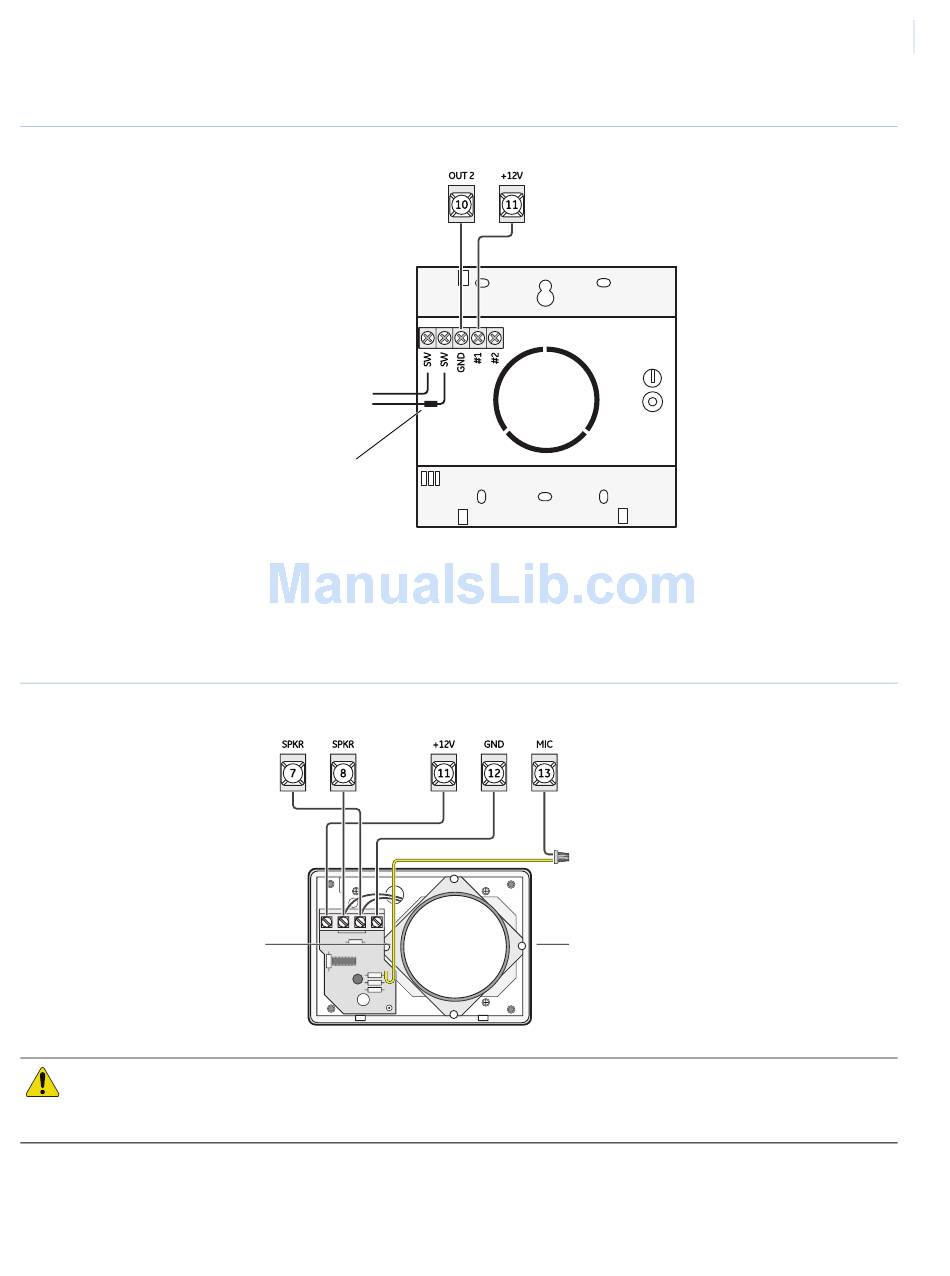

Figure 13. Connecting an Interrogator 200 audio verification module
Panel terminals
CAUTION: If a speaker is already connected to panel terminals 7 and 8, the Interrogator 200 speaker must be hooked
up in series with that speaker to provide a 16-ohm load. Hooking up speakers in parallel to panel terminals
7 and 8 creates a 4-ohm load that can cause permanent damage to the panel.
Panel terminals
To zone input
2 kohm resistor
Yellow
Splice
Audio verification module
