28
Concord 4

Installation Manual

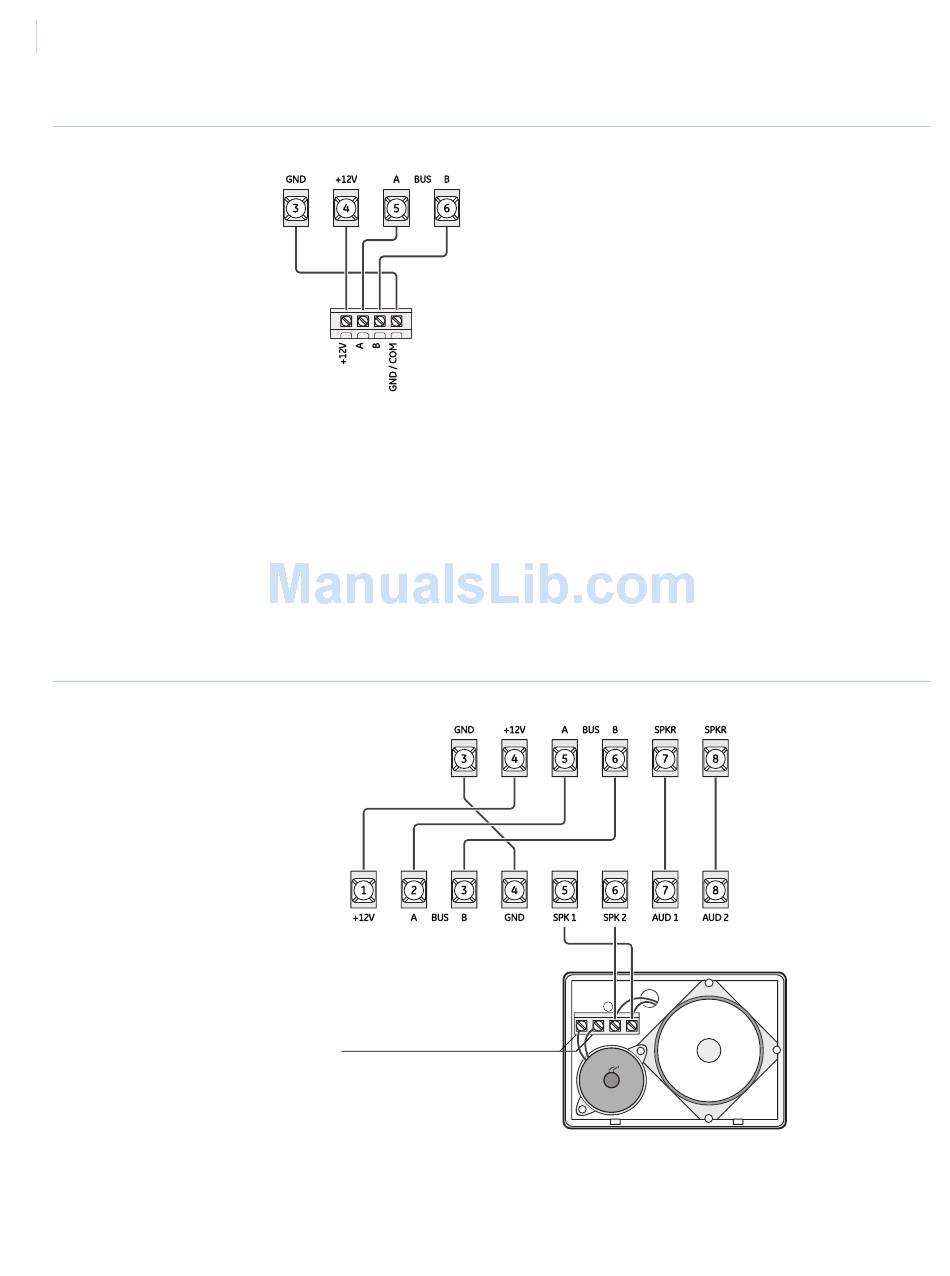

Figure 17. Wiring transceivers and receivers to the panel

SuperBus 2000 voice-only module

The module can be mounted inside or outside of the control panel cabinet. Refer to the SuperBus 2000 Voice
Only Module Installation Instructions included with each module, for complete mounting instructions.For
RJ-31X connections, see Installing an RJ-31X Phone Jack (13-081).
Note:
In UL listed installations, the voice-only module is for supplementary use only.
The module requires panel power and bus connections, and speaker connection through panel terminals as
shown in Figure 18.
Figure 18. Wiring for the voice-only module
Panel terminals
Module terminals
Not used
Panel terminals
Transceiver/receiver terminals
