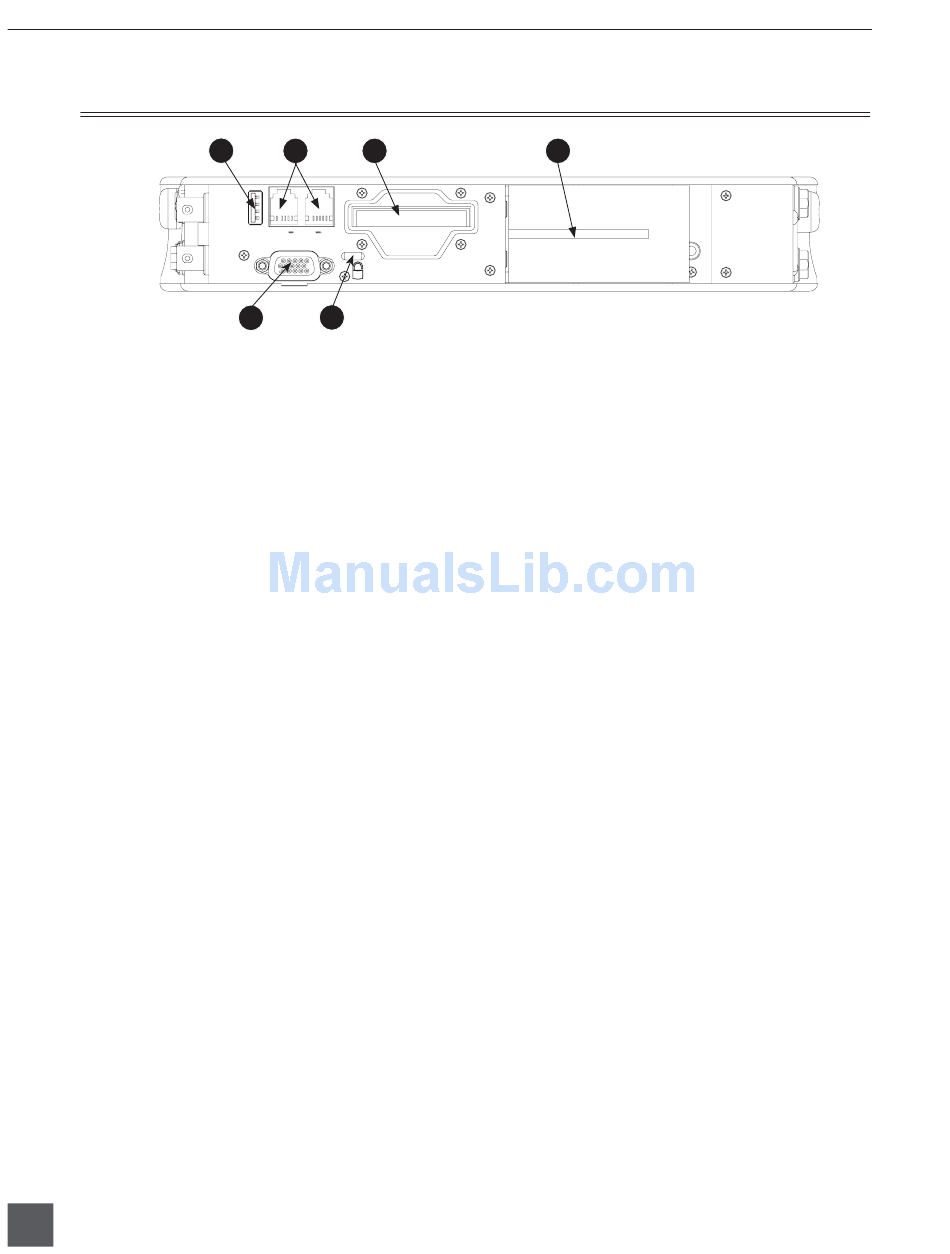

Rear Panel Descriptions

USB Keyboard Input
1)
USB A Female Connector for USB key-
board and CL-8 Controller
Control for more details regarding Keyboard
and CL-8 setup and functionality.
C. Link In/Out
2)
6-pin modular ("RJ-12") connectors. Not
a telephone jack! For connection to CL-1
Keyboard and Remote Control Interface.
See Remote Control for more details on the
CL-1.
CompactFlash Slot
3)
Accepts CompactFlash media with the
label-side up. Compatible with Type I,
Type II, and MicroDrives. High-speed
UDMA cards are recommended for
higher track count recording.
Battery Mount
4)
Accepts Sony
teries. Also accepts batteries conforming
to this mount. Numerous capacities,
from 1500 to 7000 mAh are available.
14
v. 1.71 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
1 2 3
KEYBD
OUT C.LINK IN
AES I/O, GPIO, PWR
COMPACT FLASH
6
5
See Remote
® InfoLithium L-Series bat-
4
Multi-Function DE-15 Connector
5)
Multi-function DE-15 connector acts as
AES3 Inputs 1-8, AES3 Outputs 5-6, and
Logic In and Out. Analog and digital
inputs can be used simultaneously.
Connector Pin Assignments.
Sample Rate Converters are enabled
on each AES input when Setup Menu
REC: SYNC SOURCE is set to Internal.
See Sample Rate Converters.
AES inputs support AES42 Mode 1 oper-
ation, supplies +10 V of digital phantom
power. See AES42 Digital Microphones.
Security Slot
6)
Compatible with the Kensington
rity Slot specifi cation. Used to secure the
recorder to a fi xed object with a compat-
ible computer lock.
See
®
Secu-
