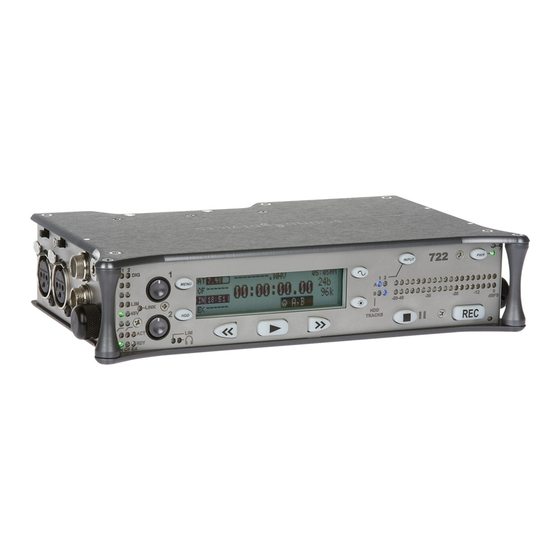

722
High Resolution Digital Audio Recorder
User Guide and Technical Information
rev. 1.15
Sound Devices, LLC
300 Wengel Drive • Reedsburg, WI • USA
+1 (608) 524-0625 • fax: +1 (608) 524-0655
Toll-Free: (800) 505-0625
www.sounddevices.com
1.8" HDD
2.5" HDD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 722 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sound Devices 722

Summary of Contents for Sound Devices 722

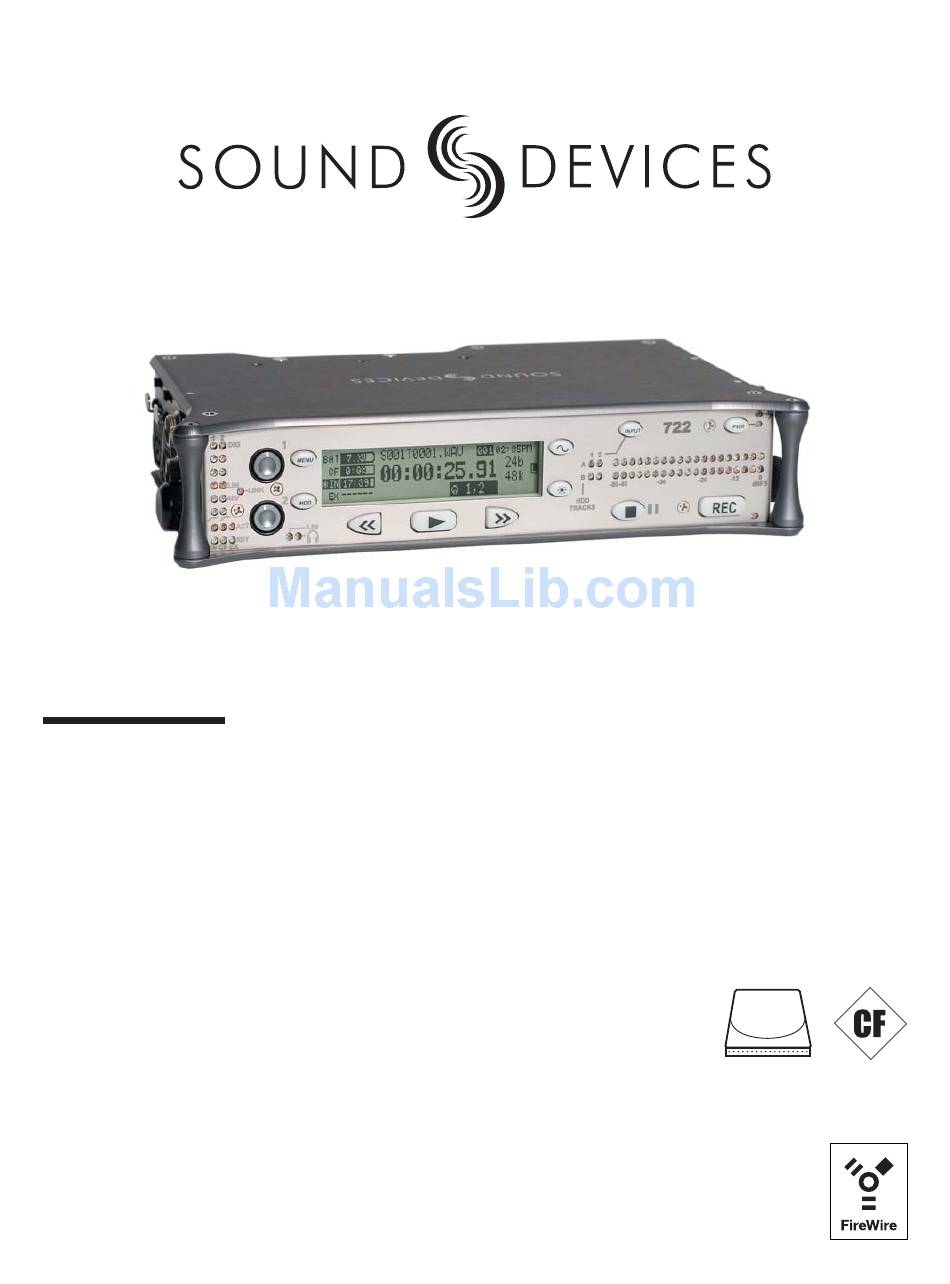

  • Page 1 High Resolution Digital Audio Recorder User Guide and Technical Information rev. 1.15 1.8" HDD 2.5" HDD Sound Devices, LLC 300 Wengel Drive • Reedsburg, WI • USA +1 (608) 524-0625 • fax: +1 (608) 524-0655 Toll-Free: (800) 505-0625 www.sounddevices.com...

  • Page 3: Table Of Contents

    Introduction Table of Contents Quick Start Guide ......3 Drive Repair Drive Type Powering the Unit Drive Failure Menu Navigation Basics Drive Replacement...
  • Page 4 LLC. SOUND DEVICES is not responsible for any use of this information. SOUND DEVICES, LLC shall not be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifi cations, repairs, or alterations to this product, or failure to strictly comply with SOUND DEVICES, LLC’s operating and installation instructions.

  • Page 5: Quick Start Guide

    Quick Start Guide Quick Start Guide The 722 is an extremely powerful and fl exible portable audio recorder. Before recording, familiarity with the product is essential. Several settings should be verifi ed or set based on individual recording needs. Powering the Unit Apply power to the unit by connecting the (included) removable, rechargeable Li-ion (lithium ion) bat- tery to the back panel battery mount.

  • Page 6: Routing Inputs To Tracks

    Select the storage medium (internal hard drive, Compact Flash, or both) for recording. Recording Now that fi le basics are set, you are ready to begin recording. The 722 is a record-priority box. Press- ing the record key cancels all functions—except fi le operations—and immediately starts recording a new fi...

  • Page 7: Recording

    fi les, including renaming fi les, copying, and playing directly from the 722 storage medium. No driv- ers are required with operating systems meeting the specifi cations. In general, it is good practice to copy all needed audio fi les from the 722 to a computer before any process- ing is performed on the fi les.

  • Page 8: Front Panel Descriptions

    722 User Guide and Technical Information Front Panel Descriptions All settings of the 722 can be accessed and monitored through the front panel LCD and navigation keys. This allows the unit to be placed in a production bag along with fi eld mixers and wireless transmitters and receivers.
  • Page 9 Fast Forward Key Used to power up and power down the Performs fast-forward (FF) scrubbing 722. When off, press and hold (150 ms) through the played fi le when pressed in to power. When on, press and hold (1 playback and play-pause mode. Play- second) to power down.
  • Page 10 722 User Guide and Technical Information Link LED Indicates that channels 1 and 2 are linked as a stereo pair. In link mode the channel 1 potentiometer controls gain, channel 2 potentiometer controls left- to-right balance. Inputs can be linked as either a stereo L/R pair or as a a Mid- Side (MS) pair.

  • Page 11: Lcd Display Descriptions

    Alternating display between the set date of number of record tracks, sample fre- and time of the 722. This information is quency, bit rate, and fi le type. written as the creation date for gener- ated audio fi...
  • Page 12 LCD when the pot is turned with digital inputs, and with line inputs with menu control. External Digital Clock Indicator The 722 is locked to a valid external digital or word clock source when the L is in the display. Cue Marker Display (not shown) In record mode, indicates when cue markers are set.

  • Page 13: Left Panel Connectors And Controls

    Dual function input connection. Input Adjusts the headphone volume. NOTE: type set with switch (see #3). Active-bal- the 722 is capable of producing ear-dam- anced analog microphone- or line-level aging levels in headphones. input for input 1. Transformer-balanced Tape Output two-channel AES3 input (1 and 2).

  • Page 14: Right Panel Connectors And Controls

    722 User Guide and Technical Information Right Panel Connectors and Controls AES3id Input AES3id Output Bus 2 Unbalanced digital input accepta two Unbalanced digital output, two-channel, channel AES3 (or S/PDIF) on BNC con- for Output Bus 2. Signal source is menu- nectors.

  • Page 15: Back Panel Descriptions

    Hardware Descriptions Back Panel Descriptions Security Slot Compatible with the Kensington ® Secu- rity Slot specifi cation. Useful for secur- ing the recorder to a fi xed object with a compatible computer lock. Compact Flash Slot Accepts Compact Flash medium with the label-side up.

  • Page 16: Input Setup And Control

    722 User Guide and Technical Information Input Setup and Control The 722 has two inputs and two record tracks. Inputs are selectable between analog or digital sourc- es. Analog inputs are connected with the balanced XLR connectors; digital inputs can be connected to either XLR Input 1 (AES3) or the BNC input (AES3id).

  • Page 17: Analog Inputs

    Input Setup and Control amp. The front panel LIM LED ( ) shows that the limiter is engaged. Limiter activity is indicated by additional front panel LEDs, one for each input channel ( ). The input limiters activate only with mic-level inputs. The limiters are engaged by (factory) default. −...

  • Page 18: Digital Input - Aes3

    722. The 722 clocks itself to the fi rst digital signal presented to it. If the 722 detects a digital signal on the BNC inputs and locks to that signal, a digital signal applied to the XLR input will be ignored until the fi...

  • Page 19: Clock Master

    If the 722 is slaved to external word clock, be certain that the source is stable. Loss of the word clock signal during recording can cause the 722 to revert back to its internally set sampling frequency. If this occurs, the portion of the fi...

  • Page 20: Input-To-Track Routing

    Serious damage could result. Input-to-Track Routing The 722 uses a simple, yet powerful routing scheme. The routing matrix allows each input to be routed to any track. Inputs can be routed to a single track to create mono-mixed recordings.

  • Page 21: Outputs - Analog And Digital

    Outputs – Analog and Digital The 722 has two discrete output buses , the Analog Output Bus (Bus 1) and the Digital Output Bus (Bus 2). Each of these two-channel buses are assigned their audio sources independently, enabling the 722 to feed multiple sources with unique two-channel program.

  • Page 22: Digital Output Bus

    1 dB increments by 40 dB. Headphone Output The 722 headphone output is a fl exible tool for monitoring audio in the fi eld. The 722 allows the user to monitor inputs, tracks, or post-record tracks. The headphone output is independent of the Master Output Bus and Output Bus 2—audio sources can be routed to headphones independent of routing...

  • Page 23: Multi-Function Controller (Encoder) Behavior

    You can exit the selection process by pressing the stop or cancel (backlight) key at any time. If DONE is pressed in the fi rst headphone slot, the 722 will select a single option (Tracks A, B) for head- phone monitoring. The 10 factory presets will be erased.

  • Page 24: Headphone Playback Mode

    While giving a very good visual indication of perceived loudness, VU meters gives poor information on actual signal peaks and are virtually useless for tracking to the 722. In VU mode, the front panel meter labeling is in volume units with –20 dBFS cooresponding to 0 VU.

  • Page 25: Peak Leds

    In addition to the main LED output meter, peak LEDs show input peaks, track peaks, and head- phone peaks. Input Peak The 722 has a peak LED associated with each input. These LEDs illuminate when input signal reaches –3 dBFS. There is no user-adjustment to the Input Peak LEDs. Track Peak The 0 dBFS LED on each track can also function as a track peak indicator.

  • Page 26: Lcd Contrast & Backlight, Led Brightness

    Bit Depths The 722 records at bit depths of either 16 or 24 bit. 24 bit recording provides greater dynamic range and addition headroom for signal peaks relative to 16 bit recordings. 24 bit acquisition is a signifi cant benefi...

  • Page 27: Audio File Formats

    16 bit, meaning the least signifi cant 8 bits are discarded. Once a fi le is recorded its sample rate and bit depth can not be changed in the recorder. The 722 does not perform sample rate conversion or bit depth changes. File conversion must be done in another environ- ment, such as an audio workstation.

  • Page 28: Recording

    AutoPlay The 722 can be set to play back all (playable) audio fi les in a directory. Files will play back in their order in the directory. Autoplay can be set with the following options: • Disabled – auto playback is off •...

  • Page 29: Storage Medium - Internal Drive

    fi les present on the medium. This reduces possibility of directory corruption and reduces the possi- bility of fragmented data fi les. Be certain that all fi les on the 722 drive have been backed up to another media before formatting. Once formatted, all data on the drive will be erased.

  • Page 30: Drive Failure

    The mechanical construction of the 722 is designed to minimize the transmission of shock to the hard drive. The drive is isolated from the chassis using special shock-reducing closed-cell foam. This material increases the amount of shock the hard drive can withstand.

  • Page 31: Storage Medium - Compact Flash

    Compact Flash (CF) is a practical, portable storage medium for audio recording. Its speed, reliability, and price continue to evolve to the benefi t of portable recorders. The 722 can write to and read from CF as either its sole recording medium or simultaneously with the internal hard drive.

  • Page 32: Testing

    If the 722 detects a fi le with a duplicate name in the destination directory, the letter suffi x, starting with “A” is added to the fi le name after the take number with poly fi les and after the track firmware v.

  • Page 33: File Management And Copying

    File Management and Copying The 722, like a computer, writes its audio recordings to a fi le system. That system is FAT32. The 722 formats its internal hard drive and Compact Flash medium as single volumes named “722”. All fi les generated by the 722 are placed in the folder (directory) named SOUNDDEV.

  • Page 34: File Directory Screen

    File names are listed in the order they were recorded. Data fi les not native to the 722 will show in the fi le directory view but no detail will be available. They will report as “Invalid File Format.”...

  • Page 35: File Time And Date

    File Time and Date Similar to a computer fi le system, all fi les recorded by the 722 are stamped with the time and date of fi le generation. To ensure that accurate time and fi le generation date are written with each fi le, make certain that the system time and date are accurately set.

  • Page 36: File Transfer - Firewire

    Error Conditions: If a fi le is to large for the destination medium, the 722 will give you the option to skip the it or cancel copying. If an error occurs during fi le copying, the 722 will prompt to cancel the transfer. When the destination medium is full, the 722 will report the error and end the transfer.

  • Page 37: Powering

    722 will power down—any recordings in-process will automatically stop. External Powering The 722 can be powered from clean DC power sources within a range of 10–18 VDC, 12 watts mini- mum. Connection to the 722 is through the 4-pin Hirose connector (Part # HR10-7P4P). Pin-1 of the −...

  • Page 38: Charging

    722 User Guide and Technical Information The 722 has a battery charger for the Li-on battery. The charger is active when 10–18 VDC is applied to pins 2 (–) and 3 (+) of the Hirose connector. When power is applied, the charging circuit evaluates the battery condition and supplies charging current, if necessary.

  • Page 39: Firmware Upgrades

    Transfer the fi rmware fi le (it will be named version_number.prg) to the 722 internal hard drive via FireWire or onto a CF card. If there are multiple fi rmware fi les on the media, the 722 will select the fi rst fi...

  • Page 40: Setup Menu Presets

    The 722 has four built-in presets and unlimited user presets. Built-In Presets The 722 is shipped from the factory with the factory preset applied. Its settings are listed below. Three additional presets, fi lm, reporter, and music presets allow for quick setup of typical param- eters for the defi...

  • Page 41: User Setups

    All of the set parameters in the table above can be saved in a fi le to internal hard drive or to CF card. By entering the Get/Save Setup Menu, the user can save or retrieve parameters to a data fi le. This binary fi le is named 722.SUP and is saved in the SOUNDDEV directory on the selected medium.

  • Page 42: Setup Menu

    722 User Guide and Technical Information Setup Menu The setup menu controls a wide range of parameters for the 722, including all audio routing and re- cording settings. The setup menu is a single, fl at architecture with no sub-menus, easing navigation.
  • Page 43 Setup Menu Setup Name Setup Description Setup Parameters Rec: Error Handler Sets the behavior when a hard drive • Stop recording write error occurs. • Create New Take • 1 ➞ A Input: Routing Allows the user to setup their routing •...
  • Page 44 File: Max Size Selects the file size where the 722 will • OFF (4 GiB) close, then start a new file. The 722 will • 4 GB not record a file larger than the selected • 2 GB size.
  • Page 45 • yyyy/dd/mm Time/Date: Set Sets the internal date and time of the <time, date> 722. Clock is not set until <done> is selected Resetting the time re-jams the inter- nal time code generator to the set time. Setting the internal clock during a production day will require time code devices to be re-jammed.
  • Page 46 722 User Guide and Technical Information Setup Name Setup Description Setup Parameters off, −60 to –12 dBFS in 1 dB steps HP: Warning Bell Level Set the output level of the multi-function warning bell. Tone: Level Set the output level of the reference tone –40 to 0 dBFS in 1 dB steps...

  • Page 47: Specifi Cations

    Specifi cations Specifi cations System Sampling Frequency internal: 32, 44.1, 48, 48.048, 88.2, 96, 96.096, 176.4, 192 kHz external: 32–192 kHz via word clock input Internal Data Path and 32 bit, 192 dB dynamic range Processing A/D, D/A Converters 24 bit, 192 kHz sample rate maximum. A/D converters on socketed, field-upgradeable daughter board A/D Dynamic Range 114 dB, A-weighted bandwidth...

  • Page 48: Dimensions And Weight

    722 User Guide and Technical Information Inputs/Outputs – Digital AES3-id 75 ohm, 0.5 V p-p, S/PDIF compatible with RCA adapter Digital Storage Internal hard drive ATA-5 interface 1.8-in or 2.5-in hard drive 4200–7200 RPM supported, FAT32 formatted, up to 2 TB...

  • Page 49: Connector Pin Assignments

    Specifi cations Connector Pin Assignments Each connector type, electrical characteristics, and pin assignment is shown below. Connector Pin Assignments Notes 1 – ground 4000 ohm input impedance, mic level (Analog Inputs) 2 – signal (+) 20k ohm input impedance, line level 3 –...

  • Page 50: Power Consumption Variables

    The best determination of your run time is to experiment with a given record- ing setup. The 722 power consumption varies over a range between 4 W to 20 W, depending on active func- tions. The following functions have the most signifi cant affect on power consumption: Inputs Active analog inputs increase power consumption.

  • Page 51: Mp3 Compressed Record Time In Hours

    1422 1185 The chart above shows recording time available with the 722 when recording to an MP3 fi le. Time is expressed in hours at the specifi ed MP3 supported by the 722. Note that all recordings are two-chan- nel recordings.

  • Page 52: Accessories

    Li-ion battery; 1500 mAh battery; it’s good to have several spare XL-BNC • BNC to BNC cable, to connect word clock from external sources to the 722 for synchronizing; also used to sync external devices from the word clock of the 722 XL-H •...

  • Page 53: Menu Navigation Shortcuts

    Menu Shortcuts Menu Navigation Shortcuts To speed navigation the 722 has numerous navigation “shortcuts”. The following is a complete list. acts as an escape key and exits from most menus and functions immediately drops all functions except fi le copy and begins recording press simultaneously to enter the time code jam menu press backlight then tone to lock all front panel buttons except for Record, Stop and Play.

  • Page 54: Warranty And Technical Support

    Fax: +1 (608) 524-0655 Sound Devices cannot guarantee that a given computer, software, or operating system confi gura- tion can be used satisfactorily with the 722 based exclusively on the fact that it meets the minimum system requirements. firmware v. 1.15...

  • Page 55: Software License

    Sound Devices, LLC product, even if Sound Devices, LLC has been advised of the possibility of such damages.
  • Page 56 722 rev. 1.15...

  • Page 57: Packing List

    722 Packing List Thank you for purchasing the 722 Portable High-Resolution Digital Audio Recorder. Please make certain that the package contains the listed items below. 722 Digital Audio Recorder Removeable Lithium Ion Battery Carry Case Power Supply AC, 100–240 VAC input, 12 VDC, 24 watt output C.
