Track Setup Window

The Track Setup Window allows a user to record enable or disable tracks, route inputs-to-tracks,
adjust master gain levels, and route tracks-to-media. Press the front panel INPUT key to access the
Track Setup Window. There are four views of the Track Setup Window, Track Level Meters View,
Track Routing View, Master Gain Levels View, and Media-to-Track View. The Track Meters View is
always the fi rst view to appear upon entry of the Track Setup Window. Items that appear in all views
have identical functionality.

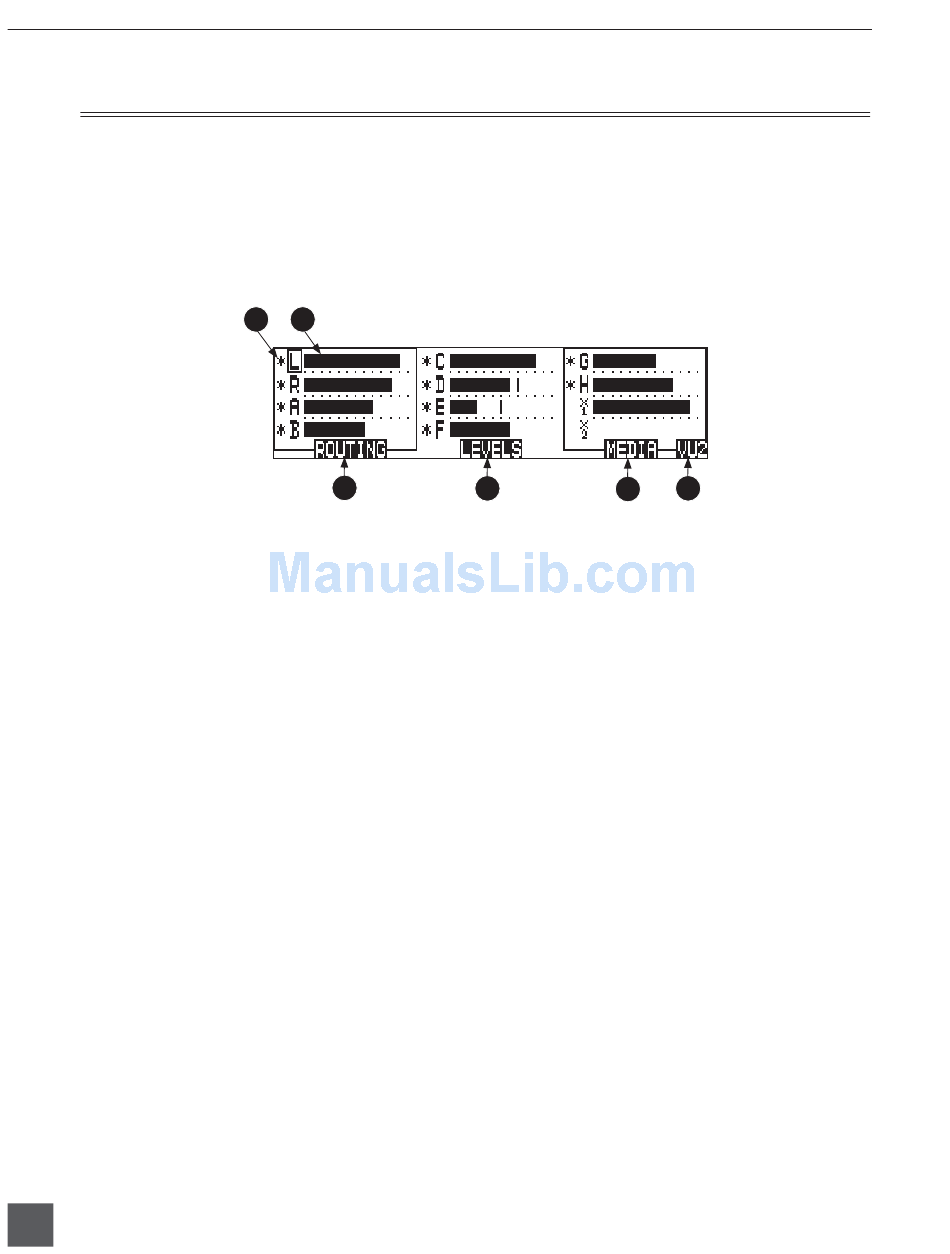

Track Level Meters View

Track Enabled Indicator
1)
An * (asterisk) next to a Track indicates
that the track is record enabled. Tracks
that are enabled and have at least one
active input routed to them are consid-
ered armed. A track must be armed in
order to record. Armed Tracks are indi-
cated by the blue Track Arm LEDs on
the 788T front panel. In record mode the
asterisk will fl ash if the track is armed.
Navigate through the Tracks using
the Multifunction Rotary Switch. The
selected track has a box around it (Track
G in the example above). To enable/
disable the track, press in on the Multi
Function Rotary Switch.
Track Level Meters
2)
Displays all twelve available track Level
Meters. Meter ballistics settings are
identical to the front panel Track Level
Meters and are adjustable within the
Setup Menu.
20
v. 1.71 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
1 2
3 4
5
Track Routing View
3)
Press the Rewind key to access the Track
Routing View.
Master Gain Levels View
4)
Press the Play key to access the Master
Levels View.
Track-to-Media View
5)
Press the Fast Forward key to access the
Track-to-Media view.
VU Toggle
6)
Press the soft VU (LCD Backlight) key
to toggle between VU1 and VU2 views.
VU1 displays Tracks C, D, E, F on the
second column of Front Panel Level
Meter LEDs, and VU2 displays Tracks G,
H, X1, X2.
6
