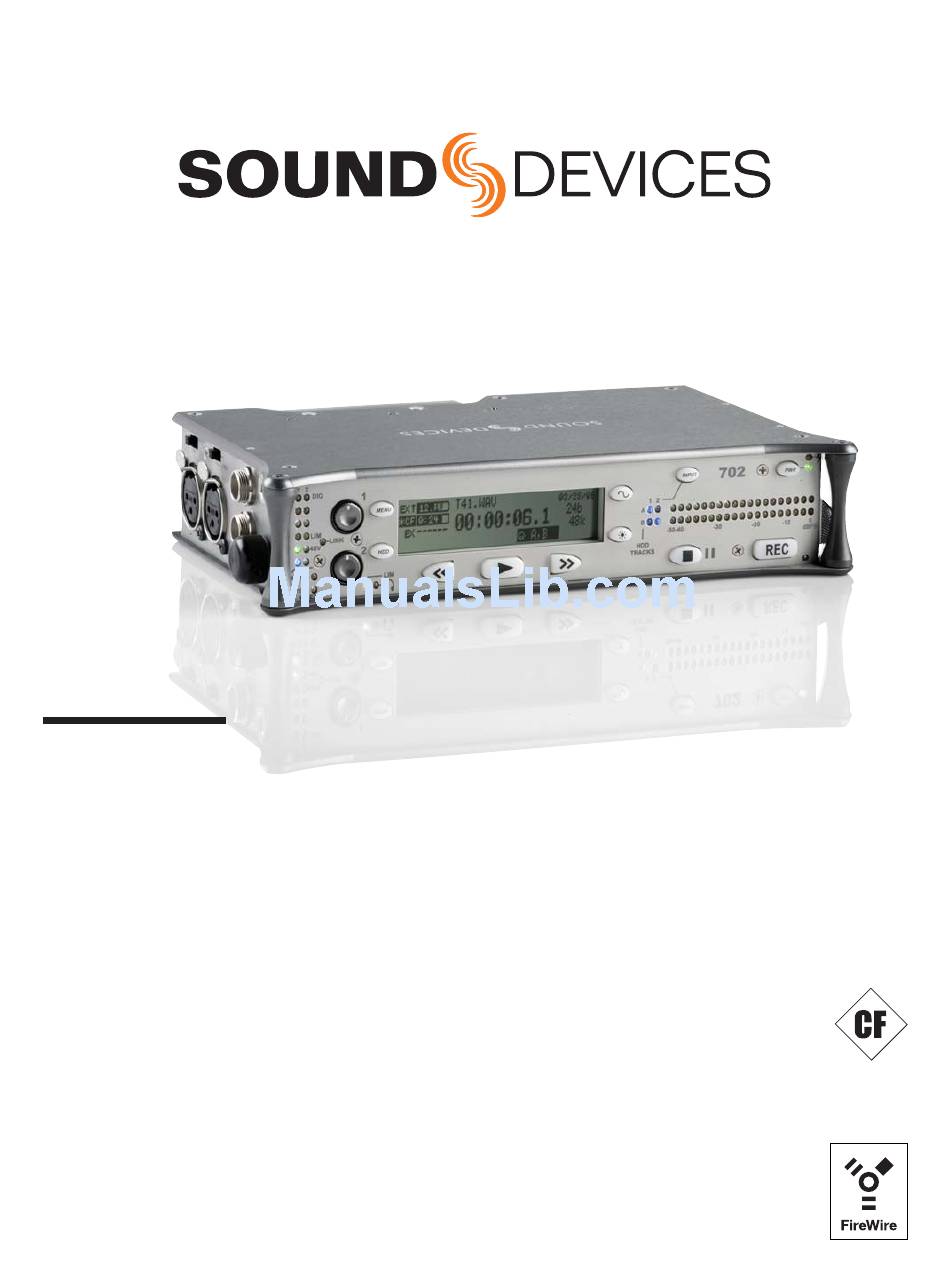

702
High Resolution Digital Audio Recorder
User Guide and Technical Information
fi rmware rev. 2.67
Sound Devices, LLC
300 Wengel Drive • Reedsburg, WI • USA
+1 (608) 524-0625 • fax: +1 (608) 524-0655
Toll-Free: (800) 505-0625
www.sounddevices.com
support@sounddevices.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 702 and is the answer not in the manual?

Questions and answers

Related Manuals for Sound Devices 702

Summary of Contents for Sound Devices 702

  • Page 1 High Resolution Digital Audio Recorder User Guide and Technical Information fi rmware rev. 2.67 Sound Devices, LLC 300 Wengel Drive • Reedsburg, WI • USA +1 (608) 524-0625 • fax: +1 (608) 524-0655 Toll-Free: (800) 505-0625 www.sounddevices.com support@sounddevices.com...
  • Page 2 backside - front cover...

  • Page 3: Table Of Contents

    Record Indication 702 Setup Presets ......56 24-Hour Time Counter ..... . . 28 Built-In Presets Recording .
  • Page 4 LLC. SOUND DEVICES is not responsible for any use of this information. SOUND DEVICES, LLC shall not be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifi cations, repairs, or alterations to this product, or failure to strictly comply with SOUND DEVICES, LLC’s operating and installation instructions.

  • Page 5: Quick Start Guide

    702 User Guide and Technical Information Quick Start Guide The 702 is an extremely powerful and fl exible portable audio recorder. Before recording, please familiarize yourself with the product. Several settings should be verifi ed or set based on individual recording needs.

  • Page 6: Routing Inputs To Tracks

    Routing Inputs to Tracks Before recording, inputs must be assigned to tracks. Each 702 input (1 and 2) can be assigned to the two recorded tracks (A and B). These 16 possible routing combinations are shown on the front panel with 4 blue LEDs.

  • Page 7: Firewire File Transfer

    FireWire cable (6-pin to 4-pin or 6-pin to 6-pin) for interconnection. From the computer fi les on the 702 CF card can be treated as if they are local fi les, including renaming fi les, copying, deleting and playing directly through the 702.

  • Page 8: Front Panel Descriptions

    702 User Guide and Technical Information Front Panel Descriptions All 702 settings can be accessed and monitored through the front panel LCD and navigation buttons. This allows the unit to be placed in a production bag along with fi eld mixers, wireless transmitters, and wireless receivers.
  • Page 9 Play-pause indicated by fl ash- Power Button ing A-time on LCD. Fast forward rate Press and hold to power up the 702. increases the longer the button is held. Press and hold to power down. In play-stop mode (indicated by fl ashing fi...

  • Page 10: Panel Button Lock

    Panel Button Lock Press and hold the backlight button then the tone button to bring up the Button Lock screen. Button Lock prevents accidental changes to settings or record status. The 702 displays any button lock op- tions enabled. select the soft buttons to...

  • Page 11: Lcd Main Display Descriptions

    For both media types, an asterisk in front of Alternating display between the set date the media indicates that it is selected for re- and time of the 702. This information is cording. Highlighted volume indicates media written as the creation and modifi cation selected for record monitoring, playback or date for recorded sound fi...
  • Page 12 Time Counter for details. External Digital Clock Indicator Input 1/2 Level The 702 is locked to a valid external When input 1 or 2 gain is turned this digital or word clock source when the L indicates the gain level in dB for inputs is in the display.

  • Page 13: Left Panel Connectors And Controls

    AES3 input (1 and 2). Headphone Level XLR Input 2 Adjusts the headphone output level. Active-balanced analog microphone- or NOTE: the 702 is capable of producing line-level input for input 2. ear-damaging levels in headphones. Mic-Line Input Switch Tape Output Selects the input level and mode of the Unbalanced tape (–10 dBv nominal)

  • Page 14: Right Panel Connectors And Controls

    Also used to attach for Output Bus 2. Signal source is menu- external FAT32-formatted FireWire selected. drives to the 702 for direct recording and Rotary Switch copying. When in the Setup Menu, the Rotary C. Link In/Out Ports Switch moves among menu items;...

  • Page 15: Back Panel Descriptions

    702 User Guide and Technical Information Back Panel Descriptions Security Slot Battery Mount Compatible with the Kensington ® Secu- Accepts Sony ® InfoLithium L- or M- rity Slot specifi cation. Useful for secur- Series removable batteries. Also accepts ing the recorder to a fi xed object with a batteries conforming to this mount.

  • Page 16: Input Setup And Control

    702 User Guide and Technical Information Input Setup and Control The 702 has two inputs and two record tracks. Inputs are selectable between analog or digital sourc- es. Analog inputs are connected with the balanced XLR connectors; digital inputs can be connected to either XLR Input 1 (AES3) or the BNC input (AES3id).
  • Page 17 702 User Guide and Technical Information Input Limiters (mic-level only) Microphone inputs 1 and 2 each have a limiter circuit designed to prevent input overload. In nor- mal operation, with proper gain settings, the limiters should rarely engage. When activated, these limiters will prevent unusually high input signal levels from clipping the analog input stage of the preamp.

  • Page 18: Input Linking (Stereo Or Ms Decoding)

    702. The 702 clocks itself to the fi rst digital signal presented to it. If the 702 detects a digital signal on the BNC inputs and locks to that signal, a digital signal applied to the XLR input will be ignored until the fi...

  • Page 19: Signal Presence And Peak Indicator

    LEDs illuminate when signal levels reach –3 dBFS or greater. Input Delay A digital delay is selectable on each channel of the 702. Delay time per input is selectable in tenths of a millisecond (0.1 msec) steps. The Rotary Switch and menu arrows are accelerated. The more you press or spin, the faster the time setting will increase or decrease.

  • Page 20: Selective Input Muting

    702 User Guide and Technical Information lighted input and track combination are displayed in white text. The two inputs are shown on the left; the two record tracks are shown on the right. To assign custom input routing: Press and hold the Stop button, then press the INPUT button successively until INPUT ROUTING is displayed in the LCD display.

  • Page 21: Sampling Rate And Bit Depth

    • 48.048kF -fi le stamped at 48 kHz Bit Depths The 702 records at bit depths of either 16 or 24 bit. 24 bit recording provides greater dynamic range and addition headroom for signal peaks relative to 16 bit recordings. 24 bit recording (versus 16 bit) is a signifi...

  • Page 22: Word Clock

    Once a fi le is recorded its sampling rate and bit depth can not be changed in the recorder. The 702 does not perform sample rate conversion or bit depth changes. File conversion must be done in another en- vironment, such as an audio workstation.

  • Page 23: Link - Multi-Unit Linking

    702 User Guide and Technical Information C. Link – Multi-Unit Linking The proprietary C. Link (control link) connection allows multiple 702, 702T, 722, and 744T record- ers to be connected and clocked together. The C. Link connection also provides for connection to the CL-1 Remote Control and Keyboard Interface.

  • Page 24: Outputs - Analog And Digital

    Outputs – Analog and Digital The 702 has two independent output buses , the Analog Output Bus (Bus 1) and the Digital Output Bus (Bus 2). Each side (left and right) of the two-channel buses are assigned audio sources indepen- dently, allowing the 702 to feed multiple audio devices with unique program content.

  • Page 25: Headphone Output

    702 User Guide and Technical Information Headphone Output The 702 headphone output is a fl exible tool for monitoring audio in the fi eld. The 702 allows the user to monitor inputs, tracks, and post-record tracks in a number of combinations. MS stereo monitoring is also available in headphones.

  • Page 26: Ms Stereo Monitoring

    (backlight) button at any time. If DONE is pressed in the fi rst headphone slot, the 702 will select a single option (Tracks A, B) for head- phone monitoring. The 10 factory presets will be erased.

  • Page 27: Headphone Favorite Selection

    Headphone Warning Tones The 702 can generate an audible beep, or warning “bell”, in the headphones when an error has oc- curred. The specifi c error will be reported on the LCD. The output level of the warning bell is menu- selectable from off to –12 dBFS in the Setup Menu.

  • Page 28: Meter Ballistics

    300 mS. While giving a very good visual indication of perceived loudness, VU meters gives poor information on actual signal peaks and are virtually useless for tracking to the 702. In VU mode, the front panel meter labeling is in volume units.

  • Page 29: Peak Leds

    Input Peak The 702 has a peak LED associated with each input. These LEDs illuminate when input signal reaches –3 dBFS. There is no user-adjustment to the Input Peak LEDs. These LED’s also function as indicators of input mute activity (see Input-to-Track Routing).

  • Page 30: Lcd Contrast & Backlight, Led Brightness

    (Setup Menu selected) the LEDs are toggled on and off with the LCD backlight button. LCD Gain Display By default, the 702 displays the set Bit Depth and Sampling Rate in the right-hand side of the Main LCD Display. The gain level for inputs 1 and 2 temporarily override the Bit Depth and Sampling Rate display while the input gain pots are in use.

  • Page 31: Recording

    Record Pause is not available when set to 24-Hour Time Counter Mode. Recording The user interface of the 702 has been designed to be very similar to a “tape recorder”. Recording and playback functions are quite similar to that of tape-based machines.

  • Page 32: Pre-Record Buffer

    FAT corruption as well. Pre-Record Buffer To prevent missing record cues or up-cutting takes, the 702 has pre-record (or pre-roll) buffering available. When active, pre-record begins recording at a set number of seconds PRECEDING the record button being pressed.

  • Page 33: Record Timer

    AutoPlay The 702 can be set to play back all valid sound fi les in a folder. Files will play back in their order they were placed in the folder. Autoplay can be set with the following options: •...

  • Page 34: Wav

    702 User Guide and Technical Information .WAV The 702 has two fi le type options for recording WAV fi les, mono and poly. Select the fi le type in the Setup Menu option REC: FILE TYPE. Monophonic When WAV Mono is selected, the 702 will generate a separate audio fi le for each recorded track.

  • Page 35: Mp3

    The 702 includes iXML (revision 1.5) data in addition to the broadcast wave extension data. For iXML-aware software applications this data is available. For applications that don’t recognize iXML, this information is ignored.

  • Page 36: Recording Time Calculation

    The chart above shows recording time available with the 702. Time is expressed in hours per track (track-hours) at the specifi ed data rate supported by the 702. If recording two tracks, divide the track hours fi gure by two. Similarly for four-track recording, divide track-hours by four. Note that the 702 supports additional sampling rate / bit depth combinations, however, only the most common are included below.

  • Page 37: Mp3 Compressed Record Time In Hours

    The chart above shows recording time available with the 702 for storage of MP3 fi les. Time is ex- pressed in hours at the specifi ed MP3 supported by the 702. Note that all MP3 fi les are two-channel recordings with the 702.

  • Page 38: Scene Name/Numbering

    “-” or “T”. Take numbers can be overridden and a new take number can be set in the Setup Menu. If the 702 detects a fi le with a duplicate name in the destination folder, a letter suffi...

  • Page 39: Mono Track Name Designators

    Duplicate File Names When the 702 detects that a duplicate fi le name is going to be generated in a specifi c folder, the 702 changes the fi le name by adding of a letter suffi x before the extension. For instance, if take numbers are reset but fi...

  • Page 40: File Management

    Folder, a Daily Folder, or a Scene Folder. Folder Actions All fi les generated by the 702 can be saved to the Root directory, a Project Folder, a Daily (Roll) Folder, or a Scene Folder (Files are saved to the Root directory by default). File organiza- tion is managed in the Setup Menu option FILE: FOLDER OPTIONS.

  • Page 41: File Finder Navigation

    File Viewer by either selecting FILE:VIEW FILES fi le in the Setup Menu or by pressing the front panel HDD button. By default the folder with the last recorded or played audio fi le will be opened. The 702 knows this fi le name by reading a text fi...

  • Page 42: File Time And Date

    FAT32 has a maximum individual fi le size limitation of 4 GB. While it is possible to have thousands of fi les on the 702 CF card, the largest any single fi le may be is 4 GB. The 702 automatically splits audio fi...

  • Page 43: Setting/Clearing Flag Bits

    Error Conditions: If a fi le is to large for the destination medium, the 702 will give you the option to skip the it or cancel copying. If an error occurs during fi le copying, the 702 will prompt to cancel the transfer. When the destination medium is full, the 702 will report the error and end the transfer.

  • Page 44: False Take Control

    702 User Guide and Technical Information Press the HDD button to enter the File Viewer. Navigate to the fi le to be deleted. Press the soft key marked OPTIONS. Select DELETE. You will be prompted to verify fi le deletion.

  • Page 45: Take List

    Take Status Takes recorded by the 702 can be marked as Circled or as No Good. Take Status is used to mark the quality of the take so that post can quickly identify which takes to use. The Take Status of the last take recorded can be quickly changed in the Take Status Menu.

  • Page 46: Compactflash Recording Media

    Press the soft Circle (Menu) key to mark the take as Circled or press the soft No Good (HDD) key to mark the take as No Good. The check mark appears in the selected box and the 702 automatically re- turns to the Main Display.

  • Page 47: Formatting

    The 702 can format and use Compact Flash cards with a minimum capacity of 64 MB. There is no practi- cal limit to the maximum Compact Flash card capacity (2 TB).

  • Page 48: Qualifi Ed Cf Cards

    Lexar Media, SanDisk, and Kingston Technolo- gy—cards in capacities from 128 MB and above will successfully operate in the 702. The unit will support up to 2 TB of data. Small capacity cards may not format as FAT32 and may not be usable.

  • Page 49: Firewire Bus Powering

    702 User Guide and Technical Information After recording to an external drive has stopped, it may take several seconds for the 702 to fi nish “house- keeping” on drive. This is especially true when recording to DVD-RAM disks, which generally have slower throughput than hard drives.

  • Page 50: File Transfer - Firewire

    The 702’s FireWire (IEEE-1394) port makes transfer of recorded fi les to a computer quick and easy. When connected, the CompactFlash card of the 702 will mount to a Mac OS X or Windows computer as a local, removable mass storage devices. Using Mac Finder, Windows Explorer, or any other fi le utility, fi...

  • Page 51: Powering

    In Windows, right-click the drive icon and select “eject.” The cable between the computer and 702 can now be disconnected. If a future connection is going to be made the cable can be left connected.

  • Page 52: Time Of Day Battery

    AA is charged from the Li-ion battery when the unit is powered on. With a fully charged AA battery, accurate time code is held for two hours after power down. The 702 can be powered down and the removable battery can be removed and replaced without worry of time code jumps or inaccuracy.

  • Page 53: Power-Up Messages

    The best determination of your run time is to experiment with a given record- ing setup. The 702 power consumption varies over a range between 4 W to 20 W (12 volts), depending on ac- tive functions. The following functions have the most signifi cant affect on power consumption: Inputs Active analog inputs increase power consumption.

  • Page 54: Upgrading Firmware

    Transfer the fi rmware fi le (it will be named VERSION _ NUMBER.PRG) to a CompactFlash card in the 702 via FireWire. If there are multiple fi rmware fi les on the media, the 702 will indicate the fi rmware fi le listed to apply.

  • Page 55: Connecting The

    702 User Guide and Technical Information Connecting the CL-1 Connect the included C. Link cable to the 702’s C. Link Input connector. Connect the opposite end of the C. Link cable to the CL-1’s C. Link connector. Connect a PS/2 keyboard to the PS/2 connector on the CL-1.
  • Page 56 Goes to the end of the string being edited Assignable Shortcuts Keyboard shortcuts can be programmed to control nearly every function on the 702. Shortcuts can select and change menu items with a simple key strokes. Combinations of computer keyboard func- tion keys, along with Control-, Alt-, and Shift- can also be programmed.

  • Page 57: Logic Inputs And Outputs

    Confi gured as a switch-closure input, a pin can be connected to a switch that a user has wired to assigned contact. This switch can then trigger the 702 to begin recording. Other functions can be as- signed as well from the Setup Menu. The switch-closure on a given pin of the CL-1 can be thought of as just another key on the keyboard.

  • Page 58: Logic Outputs

    The 702 has four built-in presets and one user preset per media. Built-In Presets The 702 is shipped from the factory with the factory preset applied. Its settings are listed below. Three additional presets, fi lm, reporter, and music presets allow for quick setup of typical param- eters for the defi...
  • Page 59 702 User Guide and Technical Information Film Reporter Music 702 Presets Factory Preset Preset Preset Preset Mic Input 2: Low Cut 40 Hz, 12 dB/oct 40 Hz, 12 dB/oct 40 Hz, 24 dB/oct 40 Hz, 12 dB/oct Frequency Mic Input 1: Gain Range...

  • Page 60: User Setup Data File

    All of the set parameters in the table above can be saved to a date fi le on the CompactFlash card. By entering the Get/Save Setup Menu, the user can save or restore parameters to and from this data fi le. This binary fi le is named 702.SUP and is saved in SOUNDDEV folder on the CompactFlash card Setup Menu The chart below describes the available setting for the 702.
  • Page 61 • Either scene or daily - takes reset on either change Rec: Pre-Roll Time Selects the amount of pre-roll time the 702 will 0–10 sec. @ 48 kHz add to the beginning of each file. 0–5 sec. @ 88.2–96.096 kHz 0–2 sec.
  • Page 62 File: Max Size Selects the file size where the 702 will close, • 4 GB CF (3.6 GB) then start a new file. The 702 will not record a • 2 GB CF (1.8 GB) file larger than the selected size.
  • Page 63 Selects the date syntax of the recorder. • mm/dd/yy • dd/mm/yy Time/Date: Set Sets the internal date and time of the 702. <time, date> Resetting the time re-jams the internal time Clock is not set until <done> is selected code generator to the set time. Setting the internal clock during a production day will require time code devices to be re-jammed.
  • Page 64 702 User Guide and Technical Information Setup Name Setup Description Setup Options LCD: Scrolling Direction Defines the direction in which the Multi-Func- • Normal tion Rotary Switch will navigate throughout • Reverse the 702. Meter: Ballistics Selects among five different meter ballistics •...
  • Page 65 CL-1. • German • French CL-1: Re-program The CL-1 has its own firmware which is supplied from the 702. This utility updates the CL-1 firmware. CL-1: Logic Out Assign Each logic output pin can be assigned to go • Undefined high when the unit is in the selected mode.

  • Page 66: Setup Menu Shortcuts

    702 User Guide and Technical Information Setup Name Setup Description Setup Options Update Software Upgrade tool used to apply new firmware. It will search all connected storage for the firmware file and prompt to update. Setup Menu Shortcuts The Setup Menu can be quickly navigated using the Rotary Switch to move up and down through the menu.

  • Page 67: Front Panel Button Shortcuts

    702 User Guide and Technical Information Front Panel Button Shortcuts To speed navigation the 7-Series has numerous navigation “shortcuts”. For combinations, hold down the fi rst identifi ed key and continue to hold while pressing the next keys. Function Key Sequence...

  • Page 68: Specifi Cations

    702 User Guide and Technical Information Specifi cations System Sampling Frequency internal: 32, 44.1, 47.952, 48, 48.048, 88.2, 96, 96.096, 176.4, 192 kHz external clocking: 32–192 kHz via word clock input Internal Data Path and 32 bit, 192 dB dynamic range...

  • Page 69: Dimensions And Weight

    702 User Guide and Technical Information Output Analog Line Output Clipping +20 dBu minimum, 10k ohm load Level Attenuation & Resolution 0–40 dB, 1 dB increments Output Topology Line: fully electronically-balanced, RF, ESD, short, and overload protected; pin-2 driven hot, pin-3 driven cold;...

  • Page 70: Connector Pin Assignments

    702 User Guide and Technical Information Connector Pin Assignments Each connector type, electrical characteristics, and pin assignment is shown below. Connector Pin Assignments Notes 1 – ground 7.5k ohm input impedance, mic level (Analog Inputs) 2 – signal (+) 20k ohm input impedance, line level 3 –...

  • Page 71: Accessories

    7-Series recorders. The fi lter is powered by the 7-Series XL-1B TA3F to TA3F cable, used to connect the line outputs of the 702 to other TA3 input sources, 12-inch. XL-2 TA3F to XLR-M cable, used to connect analog outputs to third-party devices with XLR-F inputs, 25-inch;...
  • Page 72 NP-type battery cup with 24-inch cable terminated in Hirose 4-pin locking DC connector (HR10-7P-4P) at equipment end. XL-RJ RJ-12 to RJ-12 for C.Link to C.Link 702, 702T, 722, and 744T recorder linking, 12-inch. XL-WPH3 AC to DC Power Supply (in-line) 100 - 240V 50/60 Hz input, 12 VDC 3.75 A (45 W) output, Hirose 4-pin DC plug.

  • Page 73: Ce Declaration Of Conformity

    According to ISO/IEC Guide 22 Sound Devices, LLC 300 Wengel Drive Reedsburg, WI 53959 USA declares that the product, 702 Professional Digital Audio Recorder is in conformity with and passes: 89/336/EEC EMC Directive EN55103-1, 1997 EMC-product family standard for audio, video, audio- visual and entertainment lighting control apparatus for professional use.

  • Page 74: Software License

    Sound Devices, LLC product, even if Sound Devices, LLC has been advised of the possibility of such damages.

  • Page 75: Warranty

    Sound Devices cannot guarantee that a given computer, software, or operating system confi gura- tion can be used satisfactorily with the 702 based exclusively on the fact that it meets our minimum system requirements. Please check with your software editing application to make certain that it is compatible with the fi le...
  • Page 76 702 rev. 2.67 - Printed in U.S.A.
