788T/788T-SSD User Guide and Technical Information

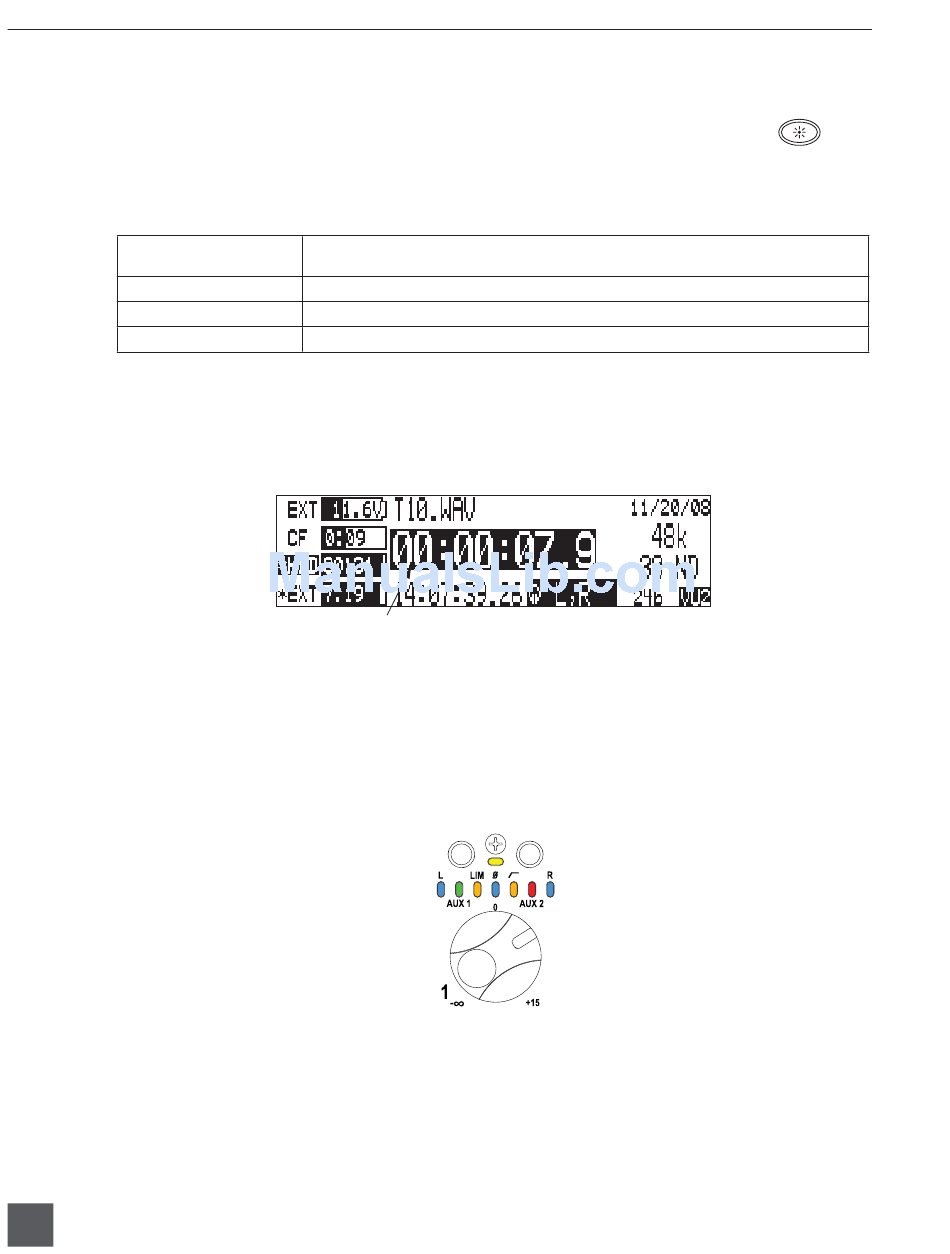

LCD Backlight

To toggle the LCD and Front Panel Soft Key backlight press and hold the LCD Backlight
and press in on the Multi-Function Rotary Switch. Backlighting is suitable in low or no ambient light
situations. By Factory Default the LCD backlight will be White in Standby, Green in Playback, and
Red in Record Modes. The user can defeat the LCD backlight by color in the Setup Menu option
LCD: BACKLIGHT MODE.
White/Green/Red
Red on Record Only
Green on Play Only
White Only

Time Display and Record Indication

The position of the A-time numbers and time code numbers can be exchanged in the Setup Menu op-
tion TIME CODE: DISPLAY MODE. When Big Time Code is selected, the time code value is displayed
in the main numeric display. If time code is turned Off, the A-time is displayed as large numbers,
even when Big Time Code is selected.
To provide for additional visual indication that recording is in process, the big numerals can
be set to reverse contrast or to fl ash during record. This is selected in the Setup Menu option
REC: RECORD INDICATOR.

CL-8 Metering and Display

The CL-8 is an optional mixing control surface for the 788T. The CL-8 displays Post Fade Signal
Activity, Left/Right track routing, Aux 1/Aux 2 track routing (pre or post fade), Input Limiter status,
Input Polarity status, High-Pass Filter status, and Solo status.
50
v. 1.71 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
This is the Factory Default setting. The backlight will illuminate White in Standby, Green during
Playback, and Red during Recording.
The LCD backlight will illuminate Red during Recording and White for Standby and Playback..
The LCD backlight will illuminate Green during Playback and White for Standby and Record..
The LCD backlight will remain White at all times.
reversed numbers indicating that recording is active
See CL-8 Controller for more details.
key
