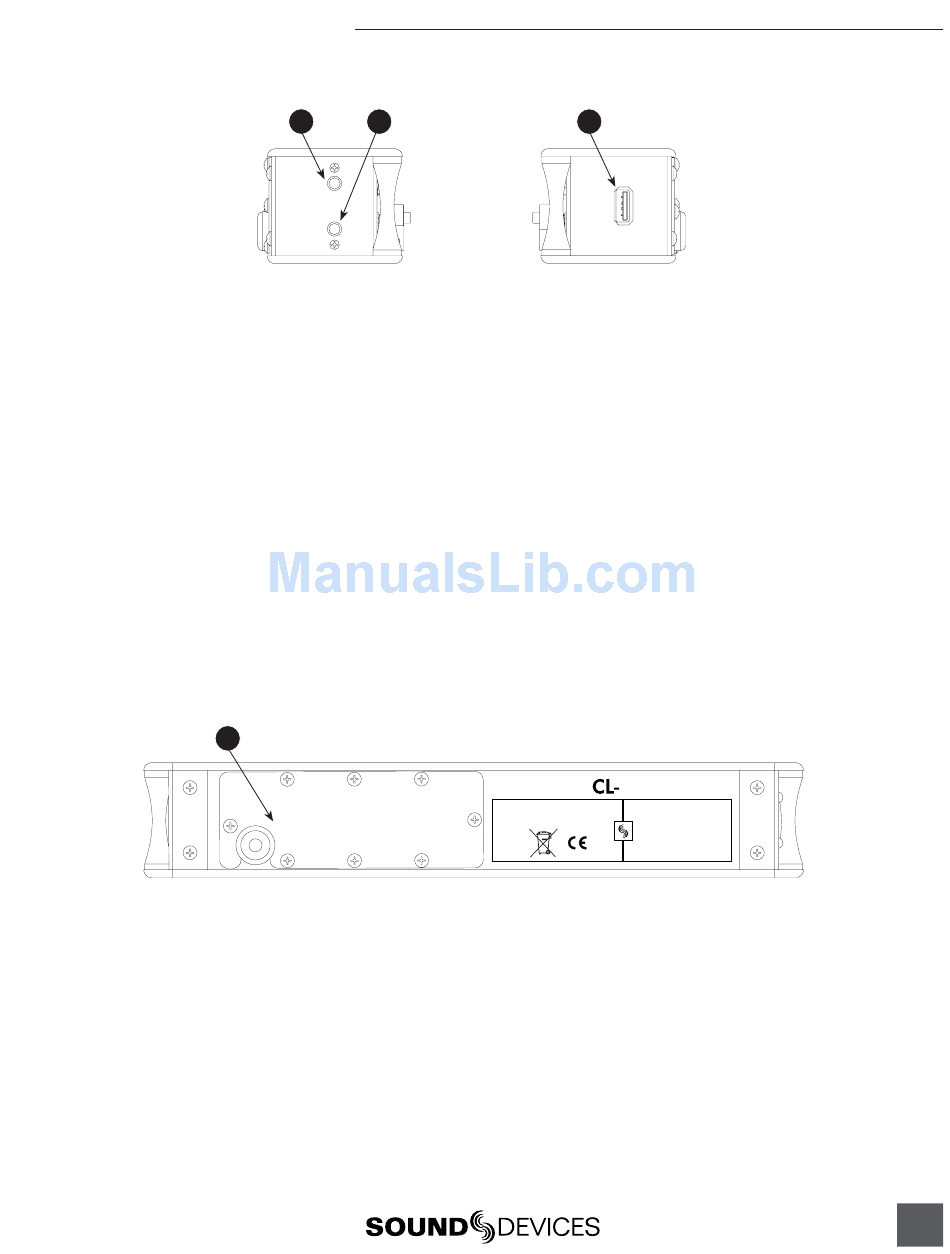

CL-8 Side Panel Descriptors

Alt Button
1)
Press to toggle between the CL-8 Views
(Main, Aux Routing, and Input Settings).
See CL-8 Views for more details.
Slate Mic Button
2)
Press and hold to activate the 788T
Slate Mic. To attenuate the Slate Mic
gain, activate the Slate Mic while turn-
ing the Multi Function Rotary Switch.
Gain is adjustable from -46 to 6 dB in
1 dB increments. Slate Mic gain is only
adjustable from the 788T Main LCD
Screen, the gain level is displayed mo-
mentarily in the Sampling Rate fi eld of
the Main LCD screen. The Slate Mic can
be disabled in the Setup Menu option
SLATE MIC: MODE.

CL-8 Back Panel Descriptors

USB Cable Bay
1)
Remove the eight screws to access the
17-inch USB A to USB B cable. Adjust
cable length as needed. Replace this
ALT
cable as needed. For CL-8 operation,
connect the USB A Male connector to the
788T USB Keyboard Input.
SLATE
1 2
ALT
SLATE
1
788T/788T-SSD User Guide and Technical Information
3
KEYBOARD
USB Keyboard Input
3)
USB A Female Connector for USB
keyboards. This acts as a thru port to
the 788T USB Keyboard Input, which
is used to connect the CL-8 to the 788T.
This connector allows for simultaneous
keyboard and CL-8 control.
8
This device complies with the
FCC Rules, Part 15, Class B.
Reedsburg, Wisconsin
www.sounddevices.com
Made In
USA
KEYBOARD
93
