788T/788T-SSD User Guide and Technical Information

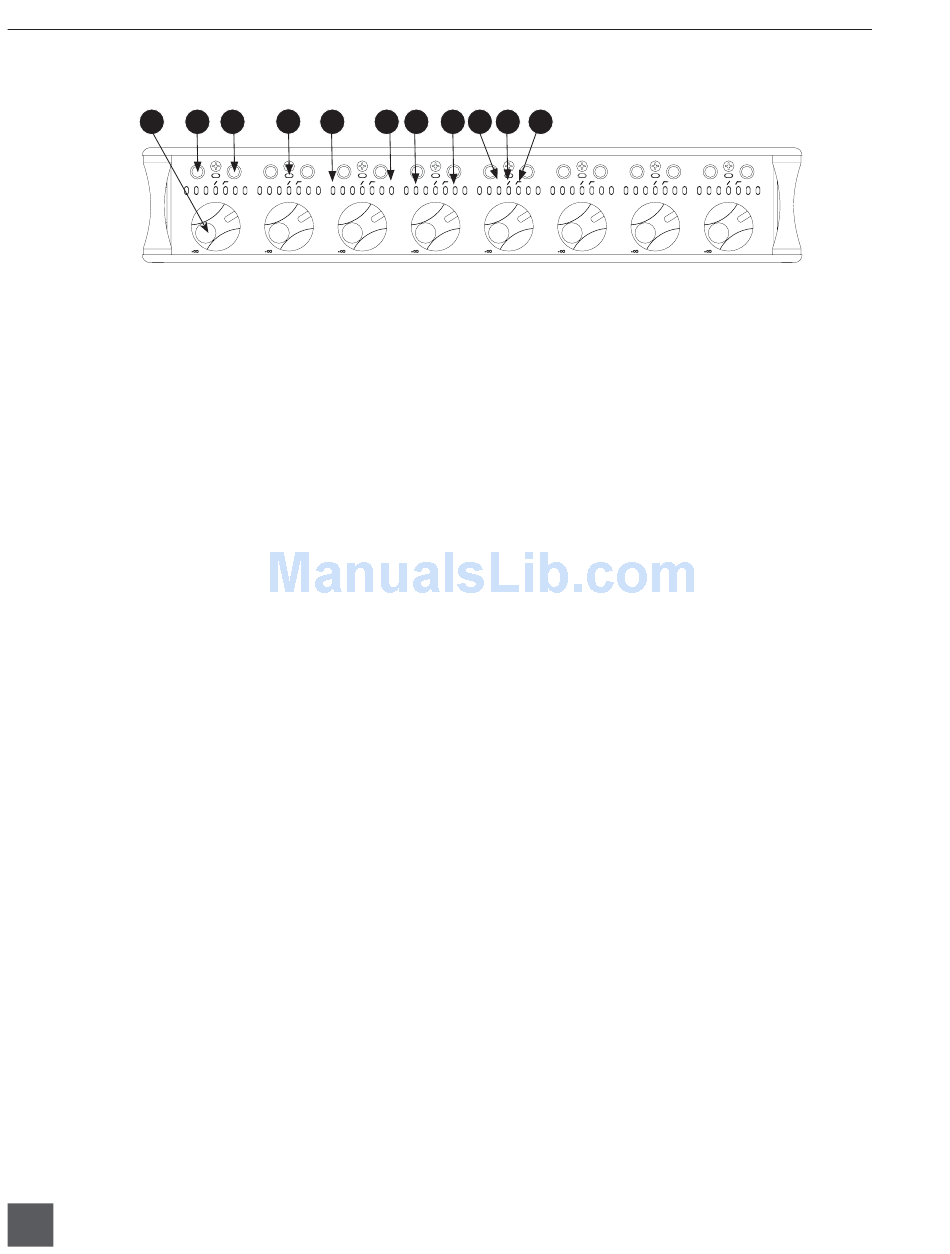

CL-8 Front Panel Descriptors

1
ALT
L
SLATE
1
Fader
1)
Attenuates the level of each respective
input sent to the Left and Right tracks.
Faders will also attenuate the level of
the Aux 1 and Aux 2 bus if selected to be
post fade. Level is adjusted from -infi n-
ity (off) to +15 dB relative to the trim
level of the inputs. Nominal level or
unity gain (0 dB) is at 12 O' Clock.
A Button (A)
2)
Selects various parameters depending
on the CL-8 View currently loaded.
B Button (B)
3)
Selects various parameters depending
on the CL-8 View currently loaded.
Multipurpose LED
4)
Displays post fade signal level in vari-
ous colors and intensities to represent
the state of each channel. Green = signal
activity, Yellow = limiter activity, Red =
signal overload (clipping).
Illuminates solid red when the Input has
been muted. Inputs are muted from the
Input Settings Window.
Illuminates solid yellow when the chan-
nel has been selected for Pre Fade Listen
(PFL) in the headphone monitor. For
input PFL control, press A and B buttons
simultaneously while in the Main View.
Track L Indicator
5)
Illuminates Blue when the respective In-
put has been routed to Track L. To route
the respective Input to Track L, press the
A button while in the CL-8 Main View.
Track R Indicator
6)
Illuminates Blue when the respective In-
put has been routed to Track R. To route
the respective Input to Track R, press the
B button while in the CL-8 Main View.
92
v. 1.71 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
2 3 4 5
LIM R L LIM R L LIM
0 0 0
AUX 1 AUX 2 AUX 1 AUX 2 AUX 1
0 0 0
2 3
+15 +15
6 7 8 9 10 11
R L LIM R L LIM R L
0 0
AUX 2 AUX 1 AUX 2 AUX 1 AUX 2
0 0
4 5 6
+15 +15 +15
7)
8)
9)
10)
11)
LIM R L LIM R L LIM
0 0 0
AUX 1 AUX 2 AUX 1 AUX 2 AUX 1
0 0 0
7 8
+15 +15
Aux 1 Indicator
Illuminates green when the respective
input is routed to the Aux 1 (x1) track
pre-fade. Illuminates red when the re-
spective input is routed to the Aux 1 (x1)
track post-fade. To route the respective
Input to Aux 1, press the A button while
in the CL-8 Aux Routing View. Press and
hold the A button to toggle between pre-
and post-fade routing.
Aux 2 Indicator
Illuminates green when the respective
input is routed to the Aux 2 (x2) track
pre-fade. Illuminates red when the re-
spective input is routed to the Aux 2 (x2)
track post-fade. To route the respective
Input to Aux 2, press the B button while
in the CL-8 Aux Routing View. Press and
hold the B button to toggle between pre-
and post-fade routing.
LIM Indicator
Illuminates yellow when the Limiter
is engaged for the respective Input. To
engage the limiter, press the A button
while in the CL-8 Input Settings View.
Input Polarity
Illuminates blue when the Input Polar-
ity has been inversed. To toggle between
normal and inverse input polarity, si-
multaneously press the A and B buttons
while in the CL-8 Input Setting View.
High-Pass Filter Indicator
Illuminates yellow when the High-
Pass Filter is engaged for the respective
Input. To engage the High-Pass Filter,
press the B button while in the CL-8 Iput
Settings View.
