Sound Devices 788T User Manual And Technical Information

High resolution digital audio recorder with time code
Hide thumbs Also See for 788T:
Table of Contents

Advertisement

Quick Links

See also: User Manual

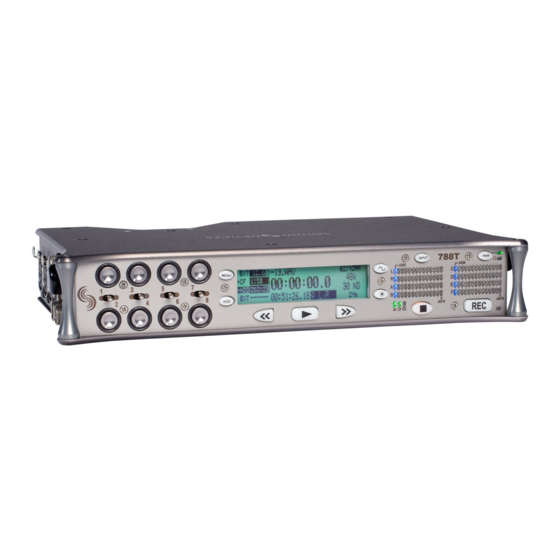

788T
High Resolution Digital Audio Recorder with Time Code
User Guide and Technical Information
for 788T and 788T-SSD Recorders
Version 3.01
Sound Devices, LLC
E7556 State Rd. 23 and 33 • Reedsburg, WI • USA
+1 (608) 524-0625 • fax: +1 (608) 524-0655
Toll-Free: (800) 505-0625
www.sounddevices.com
support@sounddevices.com
SATA
2.5"
UDMA
USB
2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 788T and is the answer not in the manual?

Questions and answers

Related Manuals for Sound Devices 788T

Summary of Contents for Sound Devices 788T

  • Page 1 788T High Resolution Digital Audio Recorder with Time Code User Guide and Technical Information for 788T and 788T-SSD Recorders Version 3.01 SATA 2.5" UDMA Sound Devices, LLC E7556 State Rd. 23 and 33 • Reedsburg, WI • USA +1 (608) 524-0625 • fax: +1 (608) 524-0655 Toll-Free: (800) 505-0625 www.sounddevices.com...

  • Page 3: Table Of Contents

    788T/788T-SSD User Guide and Technical Information Chapter 1: Quick Start Guide Chapter 2: Panel and LCD Descriptions ....8 ....18...
  • Page 4 788T/788T-SSD User Guide and Technical Information ..... 47 ......54...
  • Page 5 788T/788T-SSD User Guide and Technical Information ... 85 . . 92 The Drive Directory (File Viewer) Storage Medium – Removable CompactFlash ......86 .
  • Page 6 It writes and reads uncompressed PCM audio at 16 or 24 bits with sam- pling rates between 32 kHz and 192 kHz. The time code implementation makes the 788T ready for any recording job—from over-the-shoulder to cart-based production.

  • Page 7: Limitation Of Liability

    Windows and Mac OS computers for convenient data transfer and backup. The 788T is available in two models, The standard 788T ships with an internal hard drive. The 788T- SSD ships with an internal solid state drive. Throughout this document both models will be referred to as the 788T, except when information is specifi...

  • Page 9: Chapter 1: Quick Start Guide

    788T/788T-SSD User Guide and Technical Information Quick Start Guide This Quick Start Guide provides a brief overview for fi rst use of the 788T/788T-SSD. The Quick Start Guide walks through the steps of getting signal into the 788T and making a recording. Many opera- tional and relevant technical and operational details are not mentioned in these steps.
  • Page 10 788T/788T-SSD User Guide and Technical Information Connect headphones Connect to either the 1/4-inch or 1/8-inch headphone output on the Right Panel. WORD / VID IN DC IN 10-18V MENU 788T Right Panel SELECT FW800 FW400 ANALOG BAL LINE OUTS SYNC...
  • Page 11 788T/788T-SSD User Guide and Technical Information Access the Input Settings Window To access, momentarily move the Input Selector Switch in the direction of the Input. This action also sends the input signal to the headphone monitor (solo). MENU Left for odd inputs...
  • Page 12 788T/788T-SSD User Guide and Technical Information INPUTS MUST BE ROUTED TO TRACKS TO RECORD. From the Input Settings Window, press the PLAY key to enter Input-to-Track Routing. An Input can be assigned to any Track. The Rewind and Fast-For- ward keys route inputs to Track L and R, respectively. Turn the Rotary Switch to select a Track from A to X2.
  • Page 13 To enable/disable the track, press in on the Rotary Switch. Track Status is indicated by the asterisk and by the blue Track Status LEDs on the 788T front panel. When the LED and asterisk is solid the track is armed and will be re- corded.
  • Page 14 788T/788T-SSD User Guide and Technical Information HEADPHONE MONITOR. Press the STOP key to return to the Main Display. Turn the Rotary Switch to select the headphone preset best suited for the particular setup. Active headphone routing. Track L in the left ear, Track R in the right ear.
  • Page 15 FW800 FW400 To avoid any possible directory corruption on the 788T, do not interrupt the connection process. Always properly dismount the drives from the operating system. On Mac OS platforms, drag the drive icons to the trash. On Windows platforms, use the “Safely Remove Hardware” icon in the system tray.

  • Page 16: Chapter 2: Panel And Lcd Descriptions

    (will be recorded). MENU Key A fl ashing blue LED indicates that the Accesses the 788T Setup Menu. When in Track is enabled but there is no active the Setup Menu use the MENU key to input routed to it (will not be recorded).
  • Page 17 Fast forward rate increases the Power Key longer the key is held. In play-stop mode, To turn the 788T on or off, press and hold selects the next fi le in the record folder. the Power (PWR) Key for one second.
  • Page 18 IN CF EX Media Activity LEDs Record Key Indicates storage media activity. IN Press to begin recording. The 788T is a (internal drive), CF (CompactFlash), EX record-priority device; pressing this key (external FireWire device). The LED illu- starts recording and discontinues all other minates green when the storage media is functions, except fi...

  • Page 19: Panel Lock

    LCD backlight key then the TONE key to bring up the front panel But- ton Lock Screen. Button lock prevents unintentional setting changes and/or record status. The 788T displays any button lock options currently enabled. select the soft keys to...

  • Page 20: Right Panel Connectors And Controls

    CompactFlash volumes as mass stor- age devices or for extended display and Word Clock Output control of the 788T using Wave Agent. Provides a word clock output running at Wave Agent for details. the sample rate of the 788T.

  • Page 21: Rear Panel Descriptions

    788T/788T-SSD User Guide and Technical Information Rear Panel Descriptions KEYBD C.LINK AES I/O, GPIO, PWR COMPACT FLASH USB Keyboard Input Multi-Function DE-15 Connector USB A Female Connector for USB key- Mates with Sound Devices XL-88 Multi- board and CL-8 Controller See Remote Pin Breakout Cable.

  • Page 22: Lcd Display Descriptions

    Indicates voltage level of the removable Alternating display between the set date battery or external power sources. If and time of the 788T. This information is present, external power overrides battery written as the creation and modifi cation power. Graphical bar for relative level date for generated audio fi...
  • Page 23 Shows the set record bit depth. In play- time code generated or received by the back, shows the fi le bit depth. 788T. In Playback mode, displays the the Meter Toggle time code information of the fi le currently Press the soft VU (LCD Backlight) key selected for playback (if available).
  • Page 24 788T/788T-SSD User Guide and Technical Information Input Level Headphone Gain Level When input gain is adjusted, gain level When the headphone gain is adjusted, is indicated in dB for the input being this will appear and indicate the gain adjusted and its neighboring input. The level in dB.

  • Page 25: Input Settings Window Descriptions

    788T/788T-SSD User Guide and Technical Information Input Settings Window Descriptions To access the Input Settings Window press the Input Selector Switch into the position of the desired input. Pushing the Input Selector Switch to the left will select the odd numbered inputs and push- ing it to the right will select the even numbered inputs.

  • Page 26: Track Setup Window

    788T/788T-SSD User Guide and Technical Information Mix Assist The highlighted selection shows whether or not the input is automixed. This option will be crossed out when MIXASSIST: MODE is set to Off. Automix is toggled on and off using the Rewind key.

  • Page 27: Track Level Meters View

    To enable/disable the track, press in on the Rotary Switch. Track Status is indi- Track-to-Media View cated by the asterisk and the 788T Front Press the Fast Forward key to access the Panel Track Status LEDs. When the LED Track-to-Media view.

  • Page 28: Track Routing View

    788T/788T-SSD User Guide and Technical Information Track Routing View The screen below is the Track Routing View, it appears if the ROUTING (Rewind) Key is selected. Track Routing Track Level Meters View Displays all inputs currently routed to the Press the Rewind key to return to the given track.

  • Page 29: Master Gain Levels View

    788T/788T-SSD User Guide and Technical Information Master Gain Levels View The screen below is the Master Gain Levels View, it appears if the LEVELS (Play) Key is selected. L/R Meters Meters Displays real time metering of Left and Press the soft METERS (Play) key to re- Right Track Levels.

  • Page 30: Take List Descriptions

    This is a sequential list of Takes recorded Notes, Rename, Circle, Project, Scene, by the 788T fi rmware revision 1.5+. Take, Tape (Roll), Set/Clear Copy, Delete (sends fi le to the Trash), and Rename Next File Destination Tracks.
  • Page 31 788T/788T-SSD User Guide and Technical Information The following screen appears if the next (n) fi le is highlighted. Take +/- Scene +/- Appears when the next take, indicated by Appears when the next take, indicated by the “n” is highlighted. Pressing the soft the “n”...

  • Page 32: Drive Directory (File Viewer) Descriptions

    788T/788T-SSD User Guide and Technical Information Scene - Scene + Appears when the Scene +/- is selected in Appears when the Scene +/- is selected. the above window. Pressing the Scene - Pressing the soft Scene + (Fast Forward) (Rewind) key will decrement the scene.

  • Page 33: Root Directory

    788T/788T-SSD User Guide and Technical Information Root Directory The following screen appears if the Root Directory (1) is selected. Media Select Highlight desired media to view or per- form drive functions. Free Space Displays the amount of free space avail- able on the highlighted media.

  • Page 34: Chapter 3: Inputs And Outputs

    Inputs and Outputs Input Setup and Control The 788T has eight inputs and twelve record tracks. Inputs can be analog or digital sources. Analog inputs 1 through 4 are on 3-pin XLR connectors; inputs 5 through 8 are on 3-pin TA3 connectors.

  • Page 35: Input Settings Window

    788T/788T-SSD User Guide and Technical Information When the CL-9 is attached to the 788T, the trim and fader levels are adjusted only from the CL-9. The 788T Front Panel Gain Controls simply activating/deactivating inputs. When the CL-8 is attached to the 788T and the Setup Menu option INPUT: FRONT PANEL CONTROLS is set to Trim Controls or Fader Controls, the behavior of the front panel Input Gain Control adjusts trim levels and the CL-8 rotary potentiometer controls the Input Fader level.

  • Page 36: Input Gain

    The 788T is equipped with 16 Input Limiters, a pre-fade and a post-fade limiter for each input. Limit- ing is applied only at the stage of the signal path where the level exceeds the set Limiter Threshold.
  • Page 37 The Input Activity LEDs illuminate yellow when an input is being limited at either stage. When a fader accessory is connected, the 788T will indicate pre-fade limiting and the fader accessory will indicate post-fade limiting. The Input Limiters are active for both mic- and line-level inputs.

  • Page 38: Analog Inputs

    788T/788T-SSD User Guide and Technical Information Analog Inputs Analog inputs 1-4 on XLR connectors and analog inputs 5-8 on TA3 connectors, are the primary con- nections into the recorder. These inputs accept balanced or unbalanced mic- or line-level inputs. Gain is controlled by the front panel Input Gain Pots.

  • Page 39: Digital Inputs

    To use a digital input, the Input Type switch located in an input’s Input Settings Window must be set to Digital. Although a digital input signal contains a pair of inputs, the 788T is able to select just one of the pair as an input, so for example, it is possible to select line or mic for Input 1 and digital for Input 2.

  • Page 40: Deactivate Inputs

    Input Settings Window. Outputs – Analog and Digital The 788T has six analog and six digital outputs. Each of these outputs is assigned an audio source independently, enabling the 788T to feed multiple outputs with unique program. Although there are only six outputs, it is possible to output all eight inputs individually by using the Headphone Out- put together with the six outputs.

  • Page 41: Output Types

    Setup Menu Option TIMECODE: FRAME RATE. Output Delay is a processor-intensive feature. Sound Devices recommends using fast media, avoiding re- cording to more than two media, and to refrain from using MixAssist when any amount of Output Delay...

  • Page 42: Chapter 4: Routing And Mixing

    Routing and Mixing Input to Track Routing The 788T offers a great deal of routing fl exibility. Any input can be routed to any track. With this powerful routing, iso tracks and sub-mixes can be recorded simultaneously. Input to track routing is managed from any of four screens/controls: •...

  • Page 43: Routing Using The Input Settings Window

    788T/788T-SSD User Guide and Technical Information Without a CL-2, CL-8, or CL-9 attached and with the front panel gain controls set to Trim Controls, fader levels are fi xed at unity gain. Routing Using the Input Settings Window The Input to Track Routing in the Input Settings Window allows the user to quickly view and edit the input-to-track routing for the selected input.

  • Page 44: Routing Using The Setup Menu

    788T/788T-SSD User Guide and Technical Information 5. The image below indicates that Input 1 is now routed to Track L post fade and Track A pre fade. Once changes have been made, the sett ings will be saved in the INPUT: TRACK ROUTING Setup Menu option under the “Edited”...

  • Page 45: Routing Using The Track Setup Window

    The Track Routing View within the Track Setup Window provides a useful global overview of all input to track routing of the 788T. From this view, route any input to any track using the Rotary Switch. Pre- or post-fade routing is applied as it is defi ned in the Input Settings Window or the Setup Menu.

  • Page 46: Routing Using The

    Mix Assist™ Mix Assist™ is a powerful feature of the 788T which can automatically attenuate the level of any microphone which is not active, reducing the background noise level in the mix. This function is commonly referred to as “automix”. The 788T’s MixAssist™ feature automixes post-fade signals to the L and R tracks.

  • Page 47: Last Mic Lock-On

    788T/788T-SSD User Guide and Technical Information Last Mic Lock-On When talking stops, the last input to be active will remain open. This maintains a consistent level of natural sound and avoids a dramatic transition to silence on the track, even when no inputs are in use.

  • Page 48: Chapter 5: Recording And Playback

    This ensures fi le integrity in the unlikely event of a total loss of power. If no tracks are armed to record, the 788T will not enter Record Mode. Make certain that at least one record track is armed for recording.

  • Page 49: Failure During Recording

    Slow status. Record Timer The 788T is equipped with a record start and stop timer. This allows a user to record a take at a specifi c time from an unattended recorder. Set the start time in the Setup Menu op- tion REC: TIMER START then set the record stop time in the Setup Menu option REC: TIMER STOP.

  • Page 50: Track Enabling Using The

    Track Status Indication Track status is indicated by the blue Track LEDs located on the 788T front panel and by the asterisks in the Track Setup Window. The LED and asterisks are solid when a track is ready to record (Armed).

  • Page 51: Master Gain Levels

    788T/788T-SSD User Guide and Technical Information To assign tracks-to-media perform the following steps. 1. Enter the Track Setup Window by pressing the INPUT key. 2. Press the soft MEDIA (Fast Forward) key to enter the Track-to-Media View. 3. Use the Rotary Switch to navigate through the track-to-media routing. If media is displayed the corresponding track will be writt en to that media, that is, if the media has been selected in the Setup Menu and the track is armed.

  • Page 52: Track Limiters

    Linear Fader Controller section for more details. Sampling Rate and Bit Depth The 788T generates uncompressed PCM audio WAV fi les in the Broadcast Wave File format at the user-selected sampling rate and bit depth. The 788T LCD displays the remaining available record- ing time based on the sampling rate, bit depth, number of assigned tracks, and the selected storage media’s available capacity.

  • Page 53: Sampling Rate

    Sampling rates are selected among common rates from 32 kHz to 192 kHz. Additionally, non- standard sampling rates can be applied when the 788T is word clocked from an external source (clock sources between 32 kHz and 192 kHz). When recording off-speed sampling rates, fi les will be stamped with the rate closest to the internally generated frequency.

  • Page 54: Bit Depth

    7. Access the Setup Menu option REC: SAMPLE RATE and choose the desired sampling rate. Bit Depth The 788T records at bit depths of either 16 or 24 bits. 24-bit recording provides greater dynamic range and addition headroom for signal peaks relative to 16-bit recordings. 24-bit recording (versus 16-bit) is a signifi...

  • Page 55: Audio File Formats

    File Type The 788T has two fi le type options for recording, WAV mono and WAV poly. Select the fi le type in the Setup Menu option REC: FILE TYPE. Monophonic When WAV Mono is selected, the 788T will generate a separate audio fi...

  • Page 56: Scene Name/Numbering

    fi le, its name is the same as the fi le’s name. In the 788T, a polyphonic take/fi le name consists of a scene name, take number, and a fi le extension. For example, for scene S01, take T01, the polyphonic fi le name and take name are both S01T01.wav.

  • Page 57: Scene Name Incrementing/Decrementing

    788T/788T-SSD User Guide and Technical Information 2. Use the REWIND (<<) and FAST FORWARD (>>) soft keys to move among characters. Use the PLAY key to delete characters. Characters are entered from left to right and deleted from right to left.
  • Page 58 788T/788T-SSD User Guide and Technical Information 2. Scroll to the top of the Take List and highlight the next take, which is indicated by the lett er n. 3. Press the soft Scene +/- (Fast Forward) key to enter the Scene increment/decrement screen.

  • Page 59: Take Numbers

    REC: TAKE NAME/NUMBER. Take numbers can be incremented and decremented in the Take List. If the 788T detects a take/fi le with the same name in the destination folder, a letter suffi x, starting with “A” is added to the take/fi le name, before the extension.

  • Page 60: False Take Control

    788T/788T-SSD User Guide and Technical Information 7. Exit the Take List by pressing X. 8. Press and hold the STOP key to display the next incremented take’s fi le name. Indicates active take Indicates next upcoming take False Take Control To identify a take as a False Take, perform the following: 1.

  • Page 61: Track Naming

    C.Link Metadata Sharing Metadata Implementation 788T Broadcast wave fi les include iXML (revision 1.5) data and bEXT chunk data. For bEXT and iXML-aware software applications this data is available. For applications that don’t recognize bEXT or iXML, this information is ignored. The chart below details the supported metadata parameters.

  • Page 62: Take List

    The Take List contains a list of every Polyphonic or Monophonic take that has been recorded on the 788T. The name of the take is displayed on the left side of the Take List. The right side of the Take List displays additional fi...

  • Page 63: Take Edit Menu

    Refresh Take Metadata During power up, the 788T automatically loads the metadata for the last 100 fi les (mono and poly) recorded. “Building List” will be displayed if the Take List is entered while the fi rst 100 fi les are loading.
  • Page 64 Duplicate Takes In the event of a duplicate take name, the 788T will detect that a fi le with the same name already exists and will ask if a duplicate fi le should be created. If the user selects to do so, the resulting fi le name will be pre-fi...
  • Page 65 Copy Flags are useful for selecting various takes to be copied from one media to another. By default, Takes recorded by the 788T have their Copy Flag set to On. If the Setup Menu option FILE: COPY FLAG RESET is enabled the Copy Flags will automatically clear after the fi le has been copied from one media to another.
  • Page 66 788T/788T-SSD User Guide and Technical Information Deleting Takes Takes and their associated fi les are now deleted from the Take List Edit Menu. Deleted fi les are sent to the respective media’s Trash Folder. The Trash Folder is emptied via the Drive Directory Options Menu.

  • Page 67: Wave Agent Metadata Entry And Editing

    See CL-WIFI for details. CSV Sound Reports The 788T can generate sound reports as a comma separated values (CSV) fi le. CSV fi les can be opened and edited by common text editors and spreadsheet applications such as Microsoft Excel, OpenOffi...
  • Page 68 Selection> (At time of report generation) or <None> Information in the Overview section is managed in the Setup Menu option FILE: SOUND REPORT. The 788T derives information for the overview section from these settings at the time the sound report is generated.

  • Page 69: Generating Sound Reports

    Generating Sound Reports A sound report can be generated for all the fi les in any folder on the 788T. There are two methods for creating a sound report. Each method will create a CSV fi le named SOUND_REPORT.CSV in the target folder.

  • Page 70: Playback

    The 788T has high-resolution playback circuitry and is appropriate for any reference audio applica- tion. Any fi le recorded by the 788T can be played back. In addition, MP2, MP3, and WAV fi les can be copied to the storage media from a computer can be played back. This is useful when using the 788T as a high-resolution playback device.

  • Page 71: Chapter 6: Synchronization And Timecode

    The 788T can act as either a clock master, where it is the provider of word clock, or as clock slave, where it locks its internal word clock to a received external master reference clock. Incorrect word clock settings can result in poor audio quality, sample clock timing errors, and time code drift.

  • Page 72: Internal

    Word Clock Input When the 788T is set to receive external word clock, the 788T locks to a valid clock signal connected to the Sync Input connector. If a valid word clock is detected, ‘W’ is displayed in the LCD. If no valid word clock is detected, the input activity LED rings will fl...

  • Page 73: Time Code

    fi le recorded after the loss of the clock source may not play back at the proper speed. For fi le integrity, it is recommended that you set the 788T to the same sample frequency as the external clock source. Loss of the clock signal in this case will likely cause a short glitch in the fi...

  • Page 74: F Sampling Rate Modes

    • 30DF – This is a rarely used non-standard frame rate. Do not use unless specifi cally requested by production. • 30+ – This setting is specifi c to Sound Devices recorders. Records at 48.048 sampling rate at 30 frames per second but stamps the fi le at 48 kHz, 30 frames per second.

  • Page 75: Time Code Modes

    “jamming value” in the jam menu. Record Run The time code generator runs only when the 788T is recording. Time code in this mode defaults to 00:00:00:00 at power-up. When switching to Record Run from another mode, the internal generator will stop at the last number generated.
  • Page 76 The internal time code generator follows an external time code signal appearing at the time code input. In all of the external time code modes, the time code value set on the 788T appears as the recorded fi le’s time code rate value.

  • Page 77: Time Code Hold Off

    4. Exit the Setup Menu by pressing the soft X (Brightness) key or the Stop key. 5. Begin rolling time code from the master time code source. 6. The 788T recorder will display the Record Pending message immediately after detecting a time code signal.

  • Page 78: Jam Menu

    LCD screen; the 788T internal generator, user bits, and frame rate are shown at the bottom of the screen. To jam the 788T from an external value, press the JAM soft key (TONE key) or the Rotary Switch. The screen will display JAMMING. Once the 788T is jammed to the external time code, the external and internal numbers will match and run in sync.

  • Page 79: User Bits

    The 788T can automatically fi ll all - or a portion of - the user bit value automatically. To select the format used for automatic user bit values, select Setup Menu option TIMECODE: USER BITS.

  • Page 80: Chapter 7: Monitoring And Metering

    You can exit the selection process by pressing the Stop key or cancel (LCD Backlight) key at any time. If you press (done) in the fi rst headphone slot, the 788T will select a single option (Tracks L, R) for head- phone monitoring. The other factory presets will be erased.
  • Page 81 788T/788T-SSD User Guide and Technical Information Available audio sources for headphone monitoring include: HP Sources Description Stereo monitoring of input pairs. Inputs 1, 3, 5, and 7 are assigned Inputs 1,2 Inputs 5,6 to left headphone outputs; inputs 2, 4, 6, and 8 are assigned to right...

  • Page 82: Headphone Source As Outputs

    788T/788T-SSD User Guide and Technical Information To edit a custom headphone routing: 1. Enter the HP: MONITOR MODES Setup Menu option. Once you enter the Monitor Modes menu you will immediately be in slot-1 of the routing matrix. 2. Press the Rotary Switch or the soft key ENTER (Tone) key to move to the next slot. Repeat this action until you have highlighted the slot you wish to set as a custom heaphone routing.

  • Page 83: Ms Stereo Monitoring

    When recording four-channel B-format audio, the 788T headphone monitor can decode the B-format signal into L/R stereo. The 788T constructs a stereo signal using the W, X, and Y signals of the B- format. The Z-axis signal is not used. Similar to the 788T’s MS stereo monitoring, the stereo width is fi...

  • Page 84: Rotary Switch Behavior

    Headphone Power Up Gain The 788T’s headphone level is adjustable from Off, -40 dB to 26 dB in 2 dB increments. The Setup Menu option HP: POWER UP GAIN sets the headphone level control upon start up to: Off, the Last Gain setting used, or at Midpoint Gain (0 dB).

  • Page 85: Metering And Display

    Output Meter The meter uses energy effi cient LEDs which are viewable in full sunlight. The 788T Output Meter is unaffected by shock or extremes in temperature and humidity. Meter scale, ballistics, and peak hold duration are selectable in the Setup Menu.
  • Page 86 5. Each LED is represented by a square box. Use the Rotary Switch to adjust the value for each LED. The 788T prevents entering a greater value than the LED to the left and a lower value than the LED to the right. To move to the adjacent square press the Rewind and Fast Forward keys respectively.

  • Page 87: Digital Meter View

    788T/788T-SSD User Guide and Technical Information and the Track Setup Windows by pressing and holding the LCD Backlight key. When the favorite scale is active, the VU1/VU2/A-H display in the bottom-right corner of the LCD will alternate with the FAV display as shown: At factory default, the favorite meter scale is set to Zoom.

  • Page 88: Peak Hold Time

    Input Activity Ring LEDs will only indicate pre-fade limiting. If a digital input has been selected and the 788T detects a valid digital signal, the Input Ring LEDs will follow the normal red and green LED behavior. The Input Activity Ring LEDs can be defeated by color in the Setup Menu option METER: INPUT LED RING MODE.

  • Page 89: Tone Oscillator

    788T/788T-SSD User Guide and Technical Information Tone Oscillator The tone oscillator can be used as an aid to lining up levels. Both tone level and frequency are user  selectable. Reference level is adjustable over a range of 40 to 0 dBFS in the Setup Menu option TONE: LEVEL.

  • Page 90: Metering And Display

    fl ash during record. This is selected in the Setup Menu option REC: RECORD INDICATOR. CL-2 Metering and Display The CL-2 is an optional one channel remote fader for the 788T. The CL-2 displays Post-Fade Signal activity, Post-Fade Limiting activity, Media Activity status, Input Solo, Input Mute status, and Record status.

  • Page 91: Wave Agent Metering And Display

    Wave Agent Metering and Display Sound Devices Wave Agent Control Mode allows a Sound Devices 788T or 788T-SSD to be connected to Wave Agent over USB. When connected, Wave Agent can be used to display 788T track metering, time code, and various other settings.

  • Page 92: Automatic File Splitting

    File Time and Date Similar to a computer fi le system, all fi les recorded by the 788T are stamped with the creation time and date. To ensure that accurate time-of-day and fi le generation dates are written for each fi le, make certain that the time-of-day clock and calendar are correct.

  • Page 93: The Drive Directory (File Viewer)

    If no TOP-LEVEL folder is used, the MID-LEVEL folder will reside at the drive’s root. If set to <DAILY> a new folder will be created daily. When recording past midnight the 788T will prompt to make to a new daily folder.

  • Page 94: Navigation

    788T/788T-SSD User Guide and Technical Information ties depending on what is selected on the left hand side. File and folder names are listed in the order in which they were recorded. Navigation Moving from fi le to fi le is similar to navigating among fi les on a computer. To access the Drive Direc- tory perform the following: 1.

  • Page 95: Selecting Files For Playback

    Copy Flags are useful for selecting various takes to be copied from one media to another. By default, Takes recorded by the 788T have their Copy Flag set to On. If the Setup Menu option FILE: COPY FLAG RESET is enabled the Copy Flags will automatically clear after the fi le has been copied from one media to another.

  • Page 96: File Options Menu

    The File Options Menu is accessed by pressing the soft OPTIONS (FAST FORWARD) key for any fi le in the Drive Directory. User Settings can be recalled from any WAV fi le recorded by the 788T post- fi rmware revision 2.18.
  • Page 97 Copy Flags are useful for selecting various takes to be copied from one media to another. By default, Takes recorded by the 788T have their Copy Flag set to On. If the Setup Menu option FILE: COPY FLAG RESET is enabled the Copy Flags will automatically clear after the fi le has been copied from one media to another.
  • Page 98 788T/788T-SSD User Guide and Technical Information Erase (Media Format) For best operation periodic re-formatting of the 788T media is recommended. Formatting the internal drive, Compact Flash, and external media rebuilds the FAT (fi le allocation table) and erases all audio and data fi...

  • Page 99: Storage Media - Internal Drive

    These drives offer a good balance of speed, reliability, noise performance, and current draw. The drive installed in the 788T is formatted at the factory as a single-partition FAT32 volume. If a drive with multiple partitions is installed, the 788T will only “see” and address the primary parti- tion.

  • Page 100: Storage Medium - Removable Compactflash

    CompactFlash (CF) is a practical, portable storage media for audio recording. Its speed, capacity, and price continue to evolve to the benefi t of portable recorders. The 788T can write to and read from CF cards as either its sole storage media or simultaneously with the internal drive.

  • Page 101: Qualified Cf Cards

    Computer. In host mode, an attached FireWire storage volume such as a hard drive or DVD-RAM can be used to record and play back audio fi les. Because the 788T can write to all available mediums simultaneously, the ability to write to an external drive reduces the need for post-record copying of sound fi...

  • Page 102: Firewire Bus Powering

    788T/788T-SSD User Guide and Technical Information After recording to an external drive has stopped, it may take several seconds for the 788T to fi nish “housekeeping” on drive. This is especially true when recording to DVD-RAM disks, which generally have slower throughput than hard drives.
  • Page 103 Copies all fi les with their Copy Flag set from one media to the other. Once fi le copying has begun, the 788T searches the source media for the selected fi les. The 788T will then search the destination drive looking for duplicate fi le names. The LCD will report the number of fi...

  • Page 104: File Transfer To Computer

    Error Conditions: If a fi le is too large for the destination storage media, the 788T will prompt to skip that fi le and continue with the next or abort copying all together. If an error occurs while copying, the 788T will prompt to cancel the transfer.
  • Page 105 788T/788T-SSD User Guide and Technical Information 3. Connect the 788T to the host computer with a FireWire 400, FireWire 800, or USB cable. If connecting with a USB cable make sure that the Setup Menu option CONNECTION MODE is set to Connect as Mass Storage.
  • Page 106 788T/788T-SSD User Guide and Technical Information v. 3.01 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.

  • Page 107: Chapter 9: Remote Control

    Remote Fader, the Sound Devices CL-8 Controller, the CL-9 Linear Fader Controller, and Sound Devices Wave Agent. The USB Keyboard Input is available to plug in a standard USB keyboard to control the 788T. Front panel controls and menu selections on the 788T can be mapped to keyboard shortcuts, allowing for full keyboard control of the recorder.
  • Page 108 Goes to the end of the string being edited Assignable Shortcuts Keyboard shortcuts can be programmed to control nearly every function on the 788T. Shortcuts can select and change menu items with simple key strokes. Combinations of keyboard function keys, along with Control-, Alt-, and Shift- can also be programmed.
  • Page 109 788T/788T-SSD User Guide and Technical Information Shortcut number. Up to 50 shortcuts can be programmed 2. Select an unassigned shortcut number for programming. If a duplicate key sequence is se- lected the lowest shortcut number action takes place. The example below shows the F1 key being reprogrammed.

  • Page 110: Logic In

    The Logic output is able to source or sink up to 500 mA. The logic output pin can be set to go high or low when record is initiated on the 788T. This setting is maintained in the Setup Menu option LOGIC OUT: ASSIGN.
  • Page 111 The 788T C. Link In port is disabled when the Setup Menu Connection Mode is set to Wave Agent CTRL. 788T Multi-Unit Linking is not supported when this mode is selected. When linked, ttansport and false take commands on slave units will not affect units “above” in the linked chain.

  • Page 112: C.link Setup Procedure

    There is no fi le name synchronization with multiple unit linking. 5. Press Record on the 788T master recorder. All units in the chain will enter record. Press stop on the master to stop the recording of all linked recorders.

  • Page 113: C.link Metadata Sharing (788T Only)

    When Setup Menu option CONNECTION MODE is set to C-LINK METADATA SHARING, the master unit will share additional information with the slave unit. All 788T recorders in the C.Link group must have this option set in order to take advantage of metadata sharing. Changes made on the master unit will appear on the slave unit.

  • Page 114: Cl-Wifi

    fi rmware. The 788T C. Link In port is disabled when the Setup Menu Connection Mode is set to Connect to Wave Agent. 788T Multi-Unit Linking and Sound Devices CL-1 and CL-2 accessories are not supported when this mode is selected.

  • Page 115: Connecting The Cl-Wifi

    A to F and 0 to 9) format and must be 10 characters long. C.Link connection to other 7-Series recorders is disabled when Connection Mode is set to CL-WIFI. After a CL-WIFI connection has been established, it is necesarry to power cycle the 788T before establishing a C.Link connection to another 7-Series.

  • Page 116: Configuring Apple Ios Wi-Fi Settings

    In order for the CL-WiFi application to communicate with the 788T, a device-to-device (ad-hoc) net- work connection must be established between the CL-WIFI and the Apple iOS device. 1. Make certain the the CL-WIFI interface is connected to the 788T, confi gured, powered on, and within range.
  • Page 117 Make certain that the CL-WiFi application is not running on the iOS device before entering the 788T Setup Menu option CL-WIFI: CONFIGURE. • Make certain that the CL-WiFi application is not launched while the 788T is in the Setup Menu option CL-WIFI: CONFIGURE or any of its related screens. •...

  • Page 118: Cl-Wifi Application For Apple Ios

    Transport View The Transport view provides access to the transport controls (Record and Stop) of the 788T and dis- plays the track meters and various other useful data. On the iPad, the Transport view also allows for editing the Scene, Take, Notes, and Circled metadata of the current and next take.
  • Page 119 788T/788T-SSD User Guide and Technical Information Frame Rate Current filename Stop False Take Record Circle Take Timecode Absolute Time Track Meters Inputs Unarmed Track Armed Track Track Editing Mode toggle Enabled Unarmed Track Enabling Tracks Enabled tracks are indicated in red, disabled tracks are indicated in white, and tracks that are en- abled but not armed are indicated in blue.

  • Page 120: Take List

    788T/788T-SSD User Guide and Technical Information Renaming Tracks To rename a track, fi rst ensure that the Name/Enable mode is set to Track Name by pushing the Track Name button. In Track Name mode, touch the track to change its name.

  • Page 121: Routing

    788T/788T-SSD User Guide and Technical Information Routing The routing view displays a matrix of buttons that indicate which inputs are routed to which tracks. Tracks are represented by rows and inputs are represented by columns. To toggle a routing, touch the button that corresponds to that routing.

  • Page 122: Chapter 10: Hardware Controllers

    These are commonly used for machine control and “remote rolling” using a mixing console with transport controls. The 788T C. Link In port is disabled when the Setup Menu Connection Mode is set to Connect to Wave Agent. The Sound Devices CL-1 is not functional in this mode.
  • Page 123 Confi gured as a switch-closure input, a pin can be connected to a switch that a user has wired to assigned contact. This switch can then trigger the 788T to begin recording. Other functions can be assigned as well from the Setup Menu. The switch-closure on a given pin of the CL-1 can be thought of as just another key on the keyboard.

  • Page 124: Remote Fader (Optional)

    The 788T C. Link In port is disabled when the Setup Menu Connection Mode is set to Connect to Wave Agent. The Sound Devices CL-2 is not functional in this mode.

  • Page 125: Panel Descriptions

    CL-2 Logic Switches for details. PWR/Media Activity LED Illuminates when the CL-2 is pow- ered by the 788T. The color of the LED indicates media activity. Flashing Green = media is mounting. Solid Green = all selected media is ready. Yellow = at least one media is reading/writing.

  • Page 126: Fader Assignment

    CL-2 fader. Movement of the 788T or CL-8 fader will have no effect on an assigned input while the CL-2 is con- nected. If the Setup Menu option INPUT: FRONT PANEL CONTROLS is set to Trim Controls and there is no CL-8 attached, the input selected will be the only input with a fader control.
  • Page 127 788T/788T-SSD User Guide and Technical Information Function Switches 1, 4 Switches 2, 3 Notes (Latching) (Momentary) Momentary Toggle Toggle Only    Rotary Switch Push Acts as Rotary Switch Push Button Button Performs action defined in Setup Menu option HP: Rotary Push Function ...

  • Page 128: Controller (Optional)

    CL-8 Connection The CL-8 connects to the 788T via the USB Keyboard Input on the 788T’s back panel. The 788T con- nects and powers the CL-8 via USB, no other powering source is required. Immediately after con- necting the CL-8 it will search and update accordingly to the 788T’s latest version of fi...

  • Page 129: Front Panel Descriptors

    If the check mark is selected, the 788T will revert back to stand alone operation. Refer to the CL-8 user guide for complete instructions on how to physically mount the CL-8 to the 788T. CL-8 Front Panel Descriptors...

  • Page 130: Side Panel Descriptors

    This acts as a thru port to See CL-8 Views for more details. the 788T USB Keyboard Input, which is used to connect the CL-8 to the 788T. Slate Mic Button This connector allows for simultaneous Press and hold to activate the 788T Slate keyboard and CL-8 control.

  • Page 131: Fader Control

    +15 dB of gain. The 0 dB or unity gain position can be calibrated using the 788T Setup Menu option FADER CAL. To calibrate the faders, set all of the CL-8 faders in the 0 dB position, then enter the Setup Menu option FADER CAL and press the check mark.

  • Page 132: Slate Mic

    Press the ALT button to return to the Main View. Slate Mic The CL-8 provides access to the 788T’s Slate Mic, which is commonly used for slating a take or mak- ing general announcements. The term Slate Mic is commonly used in the industry when referring to a microphone used to com- municate.
  • Page 133 Comms use input 8’s signal path. Press the check mark to continue. 3. Connect an audio source that is to be used as the Com Mic to the TA3 Input 8 on the 788T. 4. Slide the Input 8 Selector Switch to the right to enter the Input 8 Sett ings Window.
  • Page 134 Slate Mic. 1. From the 788T’s Main LCD Screen, press and hold the SLATE butt on on the CL-8’s Left Panel. 2. Turn the Rotary Switch to adjust the gain. The gain level is momentarily displayed in the Sample Rate fi...

  • Page 135: Linear Fader Controller (Optional)

    • No extended power sources required. Control and powering via a single USB cable. CL-9 Connection The CL-9 is connected to the 788T and powered from it via USB; no other powering source is re- quired. Connect the 788T’s rear panel KEYBD USB-A port to the CL-9’s rear panel 788T USB-B port.
  • Page 136 Fader levels, COMs, Slate, EQ, Pan, and Output Mute. If the CL-9 is reconnected without pressing confi rmation, the 788T returns to the screen viewed prior to disconnection. All settings remain the same, provided that the fader levels have not been adjusted.
  • Page 137 To adjust Output/User 4 Button the LED brightness level of the CL-9, hold the 788T Backlight key and turn the CL-9 Press to enter Output Mode. Press shift Select Encoder. then OUTPUT Button to enter User 4 as defi...

  • Page 138: Rear Panel Descriptors

    1/4-inch TRS stereo unbalanced jack, 788T USB Keyboard Input, which is line-level output. Program is identical used to connect the CL-9 to the 788T. to the CL-9’s front panel Headphone This connector allows for simultaneous Outputs. Tip = left, ring = right, sleeve = keyboard and CL-9 use.

  • Page 139: Master Gain Level Controls

    788T/788T-SSD User Guide and Technical Information The 0 dB, or unity gain, position can be calibrated using the 788T Setup Menu option FADER CAL. To calibrate the faders, set all of the CL-9 faders in the 0 dB position, then enter the Setup Menu option FADER CAL and press the check mark.

  • Page 140: Headphone Monitor

    The Sound Mixer is able to monitor several sources in headphones, including the 788T Headphone Monitor Selection, COM Sends, and the CL-9 Returns. For this to work it is required that the 788T Headphone Output is connected to the CL-9’s rear panel connector labeled 788T Headphone In.

  • Page 141: Soloing Inputs. Outputs, Or Tracks

    See Returns and CL-9 Communications for details. Connecting the CL-9 to the 788T grants the Sound Mixer access to the 788T’s parametric EQ. The EQ settings are adjustable on each input and are applied pre-fade. EQ is not available with Sampling Rates at 88.2 kHz or above.

  • Page 142: Mode Basics

    Trim (default) mode is the main operational mode. When in Trim mode none of the Mode LEDs are illuminated. Trim mode is always the fi rst active mode upon power up of the 788T/ CL-9 system or after connecting the CL-9 to the 788T.
  • Page 143 In Trim Mode, turn an input’s Rotary Encoder to adjust the trim level of the respective input. The 788T Front Panel Gain Knobs are used solely to turn inputs on and off when the CL-9 is connected. The trim gain of the input and neighboring input is displayed in dB on the 788T Main LCD Display while being adjusted.
  • Page 144 L and R Tracks, and 18 Right positions. When Pan Mode is ac- tive, the Pan Mode LED fl ashes green and Pan settings are displayed on the 788T Main LCD display. Output The CL-9 Ring LEDs and channel solo behave differently in Output Mode than they do in any of the other modes.

  • Page 145: User Modes (U1-U4)

    3. Repeat step 3 until all four User Modes have been assigned. Select None if no User Mode is desired. 4. Once the fourth User Mode is selected the 788T exits the CL-9 USER 1-4 ASSIGN menu and returns to the Setup Menu. Exit the Setup Menu.
  • Page 146 Limiter on or off. Input Limiters are not available when set to sampling rates of 88.2 kHz and above. Limiter status is displayed on the 788T Main LCD Display while in Input Limiter Mode. Phantom Power Mode (User) In Phantom Power Mode, press and hold the input’s Rotary Encoder for one second or longer to...

  • Page 147: Input-To-Track Routing

    Input Routing and Track Enabling are performed directly from the CL-9 interface without having to enter any of the 788T menus. The A-H, and L,R Track Buttons are located on the top row of the CL-9. The Aux 1 and 2 Track (X1, X2) Buttons are located immediately below the Left and Right Master Gain Level Controls.

  • Page 148: Communications

    The Com Send Source shares Input 8’s signal path. When the Slate, COM1, or COM2 is active the Input 8 destinations will be silent. The audio performance of the 788T’s Built-In Mic is not suitable for critical recording applications.
  • Page 149 2. Select the External (Input 8) option. A Notice appears reminding the user that the Slate and Comms use input 8’s signal path. Press the check mark to continue. 3. Connect a microphone to the 788T’s Input 8 TA3 connector. Line-level and Digital sources can also be used as the Com Send Source.
  • Page 150 Switch to the left. To latch Tone on, slide and hold the switch for two seconds or longer. The COM2/ RTN2 LED illuminates solid blue when Tone is active. When active, Tone signal overrides all pro- gram to all tracks, outputs, and headphone monitors. Tone is setup using the 788T Setup Menu. Tone Oscillator for details of Tone Setup.
  • Page 151 1. With a CL-9 connected, enter the Setup Menu option COMMS: ROUTING. 2. Using the CL-9 Select Encoder (or 788T Rotary Switch), scroll through the available desti- nations. The lower case lett ers represent headphone montiors and the numbers represent outputs.
  • Page 152 3. Release the COM Switch to deactivate the COM. Setting up a Bidirectional Talk Back Circuit The following is a setup example for a specifi c Talk Back circuit with a Boom Op using the 788T with CL-9. 1. Connect the Boom microphone to Input 1.

  • Page 153: Transport Control

    CL-9 Transport Control The CL-9 has a Stop and a Record Button. These buttons duplicate the exact behavior as the 788T Stop and Record Buttons. While recording, the Stop Button has to be pressed for a half a second or longer in order to stop the recording.

  • Page 154: Cl-Wifi

    788T/788T-SSD User Guide and Technical Information Output Impedance Front Panel Headphone Outputs 3.5mm and 1/4-inch: TRS, unbalanced, 20 ohm Rear Panel Line-Level Headphone Output: TRS, unbalanced,100 ohm Frequency Response Any Input to any Output: 20 Hz to 20kHz ± 1dB re 1kHz Footswitch Input +3.3V at 1k, tip to sleeve, +3.3V at 1k, ring to sleeve, both active low...
  • Page 155 788T/788T-SSD User Guide and Technical Information...

  • Page 156: Chapter 11: Setup And Shortcut Reference

    Setup and Shortcut Reference Setup Menu The Setup Menu controls a wide range of parameters for the 788T, including audio routing, record settings, and time code options. The Setup Menu is a single, fl at architecture with no sub-menus, making it easy to navigate. Each menu option controls a specifi c parameter with several selections.

  • Page 157: Factory Default

    Media is selectable even • CF Only • EXHDD and INHDD EXHDD and Rec: Media Select if it is not present. The 788T will only • EXHDD Only • EXHDD and CF INHDD and CF record to 2 media when recording 9+ •...
  • Page 158 788T/788T-SSD User Guide and Technical Information Factory Setup Name Description Options Default • 2 track (1:L, 2:R) • 2 track (1:A, 2:B) • 4 track (1:L..4:B) • 4 track (1:A..4:D) Allows the user to setup the routing • 2 mix (L,R) 8 Iso •...
  • Page 159 788T/788T-SSD User Guide and Technical Information Factory Setup Name Description Options Default Selects the threshold at which the in- put limiters will become active across -12 to -2 dBFS attenuated by .1 dB incre- Input: Limiter Threshold all inputs where the input limiter has...
  • Page 160 Selects the file size when the 788T • 2 GB will close, then start a new file. The • 1 GB CF 788T will not record a file larger than • 640 MB File: Max Size 2 GB CF (1.8 GB) the selected size.
  • Page 161 788T/788T-SSD User Guide and Technical Information Factory Setup Name Description Options Default Selects whether the flag bit is cleared • Disabled File: Copy Flag Reset or not on files copied from one media Enabled • Enabled to another. • 23.976 •...
  • Page 162 Enables or disables the LCD • Red on Record Only backlight color from indicating that LCD: Backlight Mode White/Green/Red the 788T is in Record, Playback, or • Green on Play Only Standby. • White Only Defines the direction in which the Ro- •...
  • Page 163 788T/788T-SSD User Guide and Technical Information Factory Setup Name Description Options Default Adjusts the duration for which the 0 to 5 seconds adjustable in increments of Meter: Peak Hold Time 0 seconds peak LED stays illuminated. .1 sec Meter: Input Peak Thresh-...
  • Page 164 788T/788T-SSD User Guide and Technical Information Factory Setup Name Description Options Default Selects the audio source monitored Any of the HP: Monitor Modes can be selected HP: Favorite Mode when the Rotary Switch is pressed as the HP: Favorite Mode. See the above Tracks L,R during Record or Playback.
  • Page 165 788T/788T-SSD User Guide and Technical Information Factory Setup Name Description Options Default • Do Nothing • Power On Unit Controls the behavior of the unit Power: Ext Power Function when power is applied to the external • Power On and Start Record Do Nothing DC jack.

  • Page 166: Saving And Recalling User Settings

    Scene Names, Track Names, Folder Options, Sound Report fi elds, Meter Scales, and Keyboard Shortcuts entered by the user, are not saved in the 788T.SUP fi le nor are they stored in the WAV fi le. This informa- tion is stored on the primary drive in the SOUNDDEV folder.

  • Page 167: Front Panel Button Shortcuts

    788T/788T-SSD User Guide and Technical Information ber. Any number of bread crumbs can be set, but their utility is reduced when too many have been applied. press and hold to set or remove a menu crumb; toggles among menu bread...
  • Page 168 788T/788T-SSD User Guide and Technical Information Function Key Sequence Action LCD BACKLIGHT + Rotary Switch + Rotary Switch Press and hod the LCD Backlight key and turn the Rotary Switch Backlight / to adjust the level of LED brightness. Press and hold the LCD...

  • Page 169: Chapter 12: Specifications

    788T/788T-SSD User Guide and Technical Information Specifications System Sampling Frequency internal: 32, 44.1, 47.952, 48, 48.048, 88.2, 96, 96.096, 176.4, 192 external clocking: 32–192 kHz via word clock or digital inputs AES/EBU inputs can accept signals from 32-192 kHz when sync reference = internal (SRC enabled).
  • Page 170 AES42 Mode 1 operating system, provides +10 V Digital Phantom Power to Digital Input pairs (menu-selectable). Digital Storage Internal Drive 788T - SATA interface 2.5-in hard drive 4200–7200 RPM supported, FAT32 formatted, up to 2 TB addressable 788T-SSD - SATA interface 2.5-in Solid State Drive, FAT32 formatted, up to 2 TB addressable...

  • Page 171: Dimensions And Weight

    9-pin male FireWire 800 IEEE-1394b. Backward com- (IEEE-1394b) sleeve – ground patible with FireWire 400 IEEE-1394a to IEEE-1394b FW800 connections. USB-B center pin – signal Data transfer connection to computers or connection to sleeve – ground Wave Agent for extended 788T display and control.
  • Page 172 3 – AES 5,6 Output (+) DC powering and is therefore ideal as a single umbili- 4 – AES 7,8 Input (+) cal connection between the 788T and an external digital 5 – AES 5,6 Input (+) mixer. Mates with Sound Devices XL-88.

  • Page 173: Chapter 13: Accessories

    788T/788T-SSD User Guide and Technical Information Accessories Several high-value accessories are available for the 788T, including a production case, cables, and power accessories. For a full list of Sound Devices products and accessories, visit our web site www.sounddevices.com/products. Included Accessories The accessories below are included with the 788T/788T-SSD: •...
  • Page 174 XL-1B TA3F to TA3F cable, connects the direct outputs of a Sound Devices 442 mixer to the 788T’s analog inputs 5-8, also used to connect analog outputs 1-4 to third-party devices with TA3M inputs, 12-inch. XL-2 TA3F to XLR-M cable, used to connect analog and digital outputs 1-4 to third-party devices with XLR-F inputs, 25-inch;...

  • Page 175: Chapter 14: Appendix

    Sound Devices, LLC product, even if Sound Devices, LLC has been advised of the possibility of such damages.

  • Page 176: Warranty & Service

    According to ISO/IEC Guide 22 Sound Devices, LLC 300 Wengel Drive Reedsburg, WI 53959 USA declares that the product, 788T Professional Digital Audio Recorder is in conformity with and passes: 89/336/EEC EMC Directive EN 55103-1, 1997 EMC-Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional use.

  • Page 177: Warranty And Technical Support

    Sound Devices hosts a user support forum. The URL is: http://forum.sounddevices.com Sound Devices cannot guarantee that a given computer, software, or operating system confi guration can be used satisfactorily with the 788T Recorder based exclusively on the fact that it meets our minimum system requirements.
  • Page 180 788T/788T-SSD rev. 3.01 - Printed in U.S.A.

This manual is also suitable for:

788t-ssd788tifbt4

Table of Contents

Save PDF
