Setup Menu Basics:
Highlighted selection
Selects highlighted option
Navigates through the menu
Exits option and menu
Cancels changes and exits the menu
12. A TRACK MUST BE ENABLED TO BE RECORDED. Press the INPUT key to enter the Track Setup
Window, where Tracks are enabled for recording. An * (asterisk) in the window indicates that the Track
is record enabled. Tracks that are both record enabled and have at least one active input routed to
them are considered armed. The 788T only records tracks that are armed for recording. Armed tracks
are indicated with the blue Track Arm LEDs on the Front Panel.

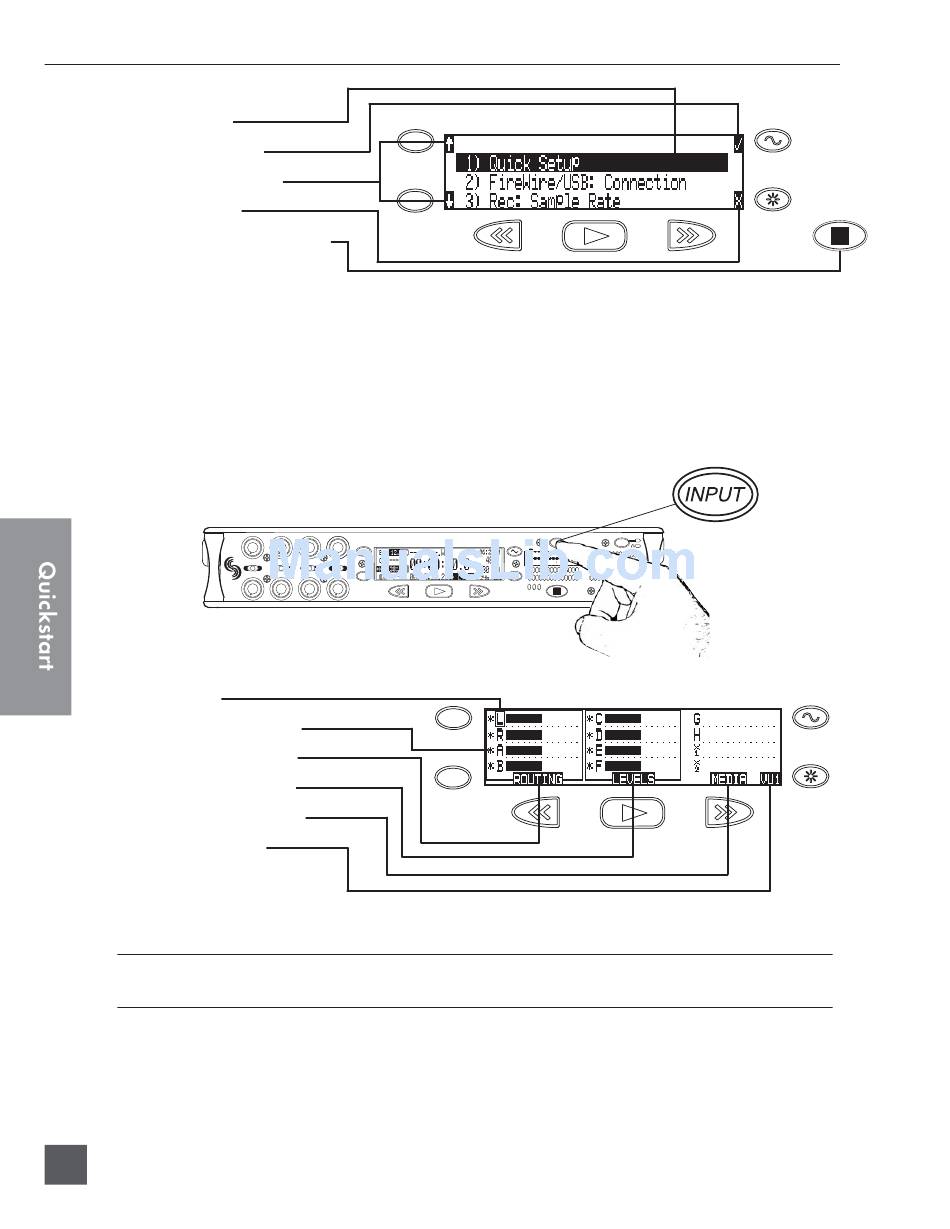

Track Setup Menu Basics:
Selector Box
Track Enabled Indicator
Input Routing Window
Master Levels Window
Track-to-Media Window
VU1 / VU2 Toggle
VU1 / VU2 toggle selects the Tracks displayed on the right-hand column of Track Meter LEDs.
Tip: After Inputs are routed to Tracks and the Tracks are record enabled, simply click the Input Gain Pots on and
off to arm and disarm tracks respectively.
6
v. 1.71 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
MENU
HDD
Turn the Multi-Function Rotary Switch to navigate
through the Setup Menu, push to select an option.
MENU
1 3 5 7
2 4 6 8
HDD
VU1 = Tracks C, D, E, F, G. VU2 = G, H, X1, X2.
