788T/788T-SSD User Guide and Technical Information

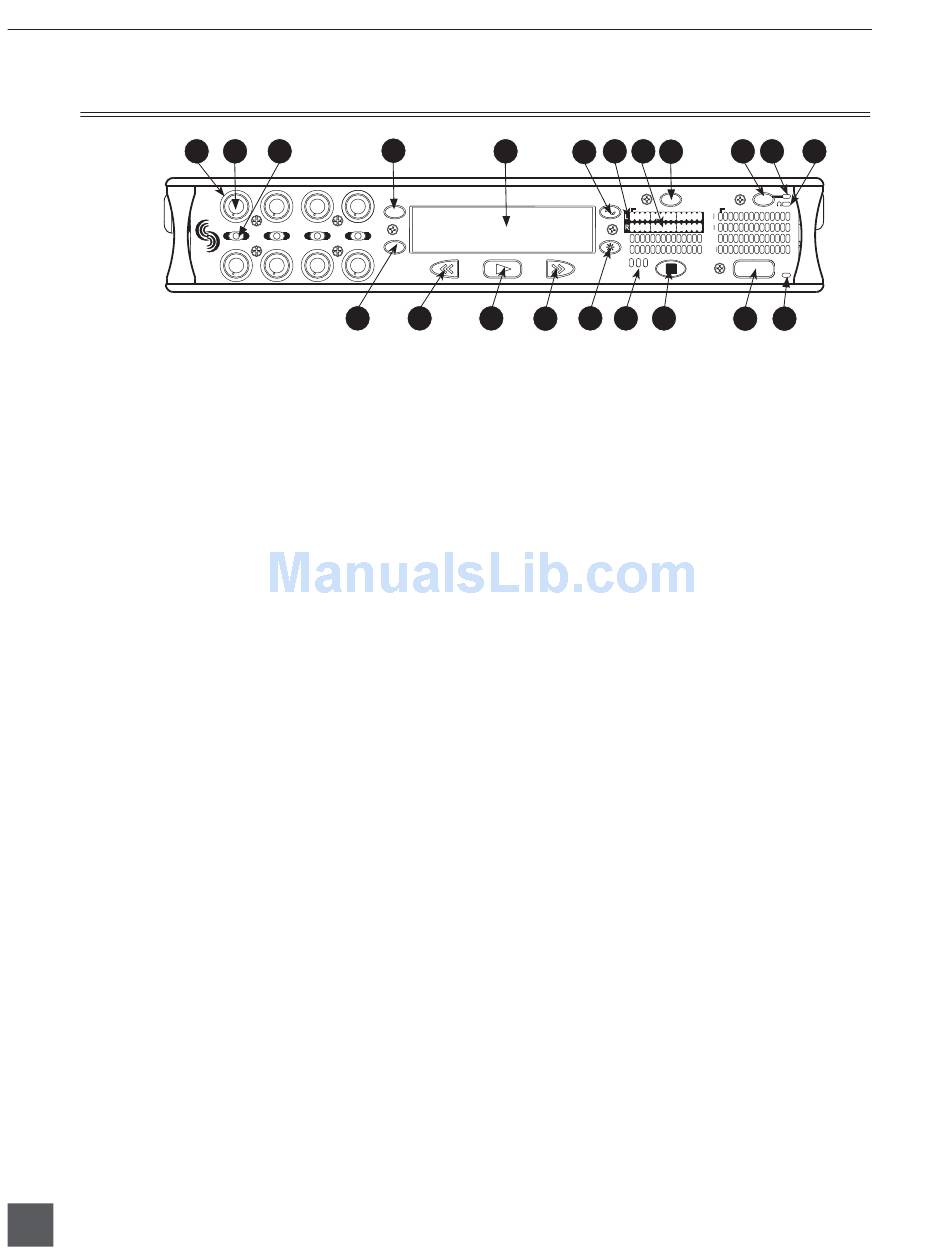

Front Panel Descriptions cont.
Level Meter LEDs
8)
Eight, 13-segment track level-meters
indicate level in dBFS. Metering bal-
listics and peak hold times are selected
in the Setup Menu. Tracks C, D, E, F can
be used to view Tracks G, H, X1, X2.
Metering and Display.
INPUT Key
9)
Press to access the Track Setup Menu,
from which the user can arm/disarm
record tracks and view meter activity for
all 12 tracks. Press and hold the STOP
key then press the Input key to access
the Input: Track Routing Setup Menu.
Cycle through factory and custom rout-
ings by pressing the Input key while
holding the STOP key. See
Routing
Power Key
10)
To power up the unit, press and hold the
Power (PWR) Key for about one second.
To power the unit down, press and hold
the Power Key for about one second.
Power/Charge LED
11)
Indicates the 788T is powered and avail-
able for operation. Indicates the charge
status of the onboard battery charger.
Headphone Output Peak LED
12)
Indicates overload of the headphone
amplifi er. When lit, the headphone cir-
cuit is overloading. Reduce headphone
level.
10
v. 1.71 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
1 2 3
1 3 5 7
2 4 6 8
13
Input-to-Track
4 5
MENU
HDD
14 15
16
HDD Key
13)
Press to enter the Take List and Drive
Directory. From the Take List, view and
edit metadata across all storage medi-
ums. From the Drive Directory navigate
See between storage media, folders, and
fi les. View folder and fi le properties and
select fi les for playback.
The media that is selected for playback
is shown on the left hand side of the
main screen. Press and hold the HDD
key to toggle between available media.
If only one media is present, media
toggle is disabled. When in the Setup
Menu use the HDD key to move down
through the options and parameters.
Rewind Key
14)
Performs reverse (REW) scrubbing
through the played fi le when pressed in
playback and play-pause mode. Play-
pause indicated by fl ashing A-time on
LCD. Reverse playback rate increases
the longer the key is held. In play-stop
mode (indicated by fl ashing fi lename
on LCD) selects the previous fi le in the
record folder (either daily folder or main
folder).
Play Key
15)
Plays back the fi le displayed in the LCD.
If pressed immediately after recording is
stopped, the most recently recorded fi le
is played back.
7 8 10
6 9
788T
INPUT PWR
ARM ARM
R C
L D
A E
B F
0
d BFS
REC
IN CF EX
17 18 19
20
11 12
0
d BFS
21
