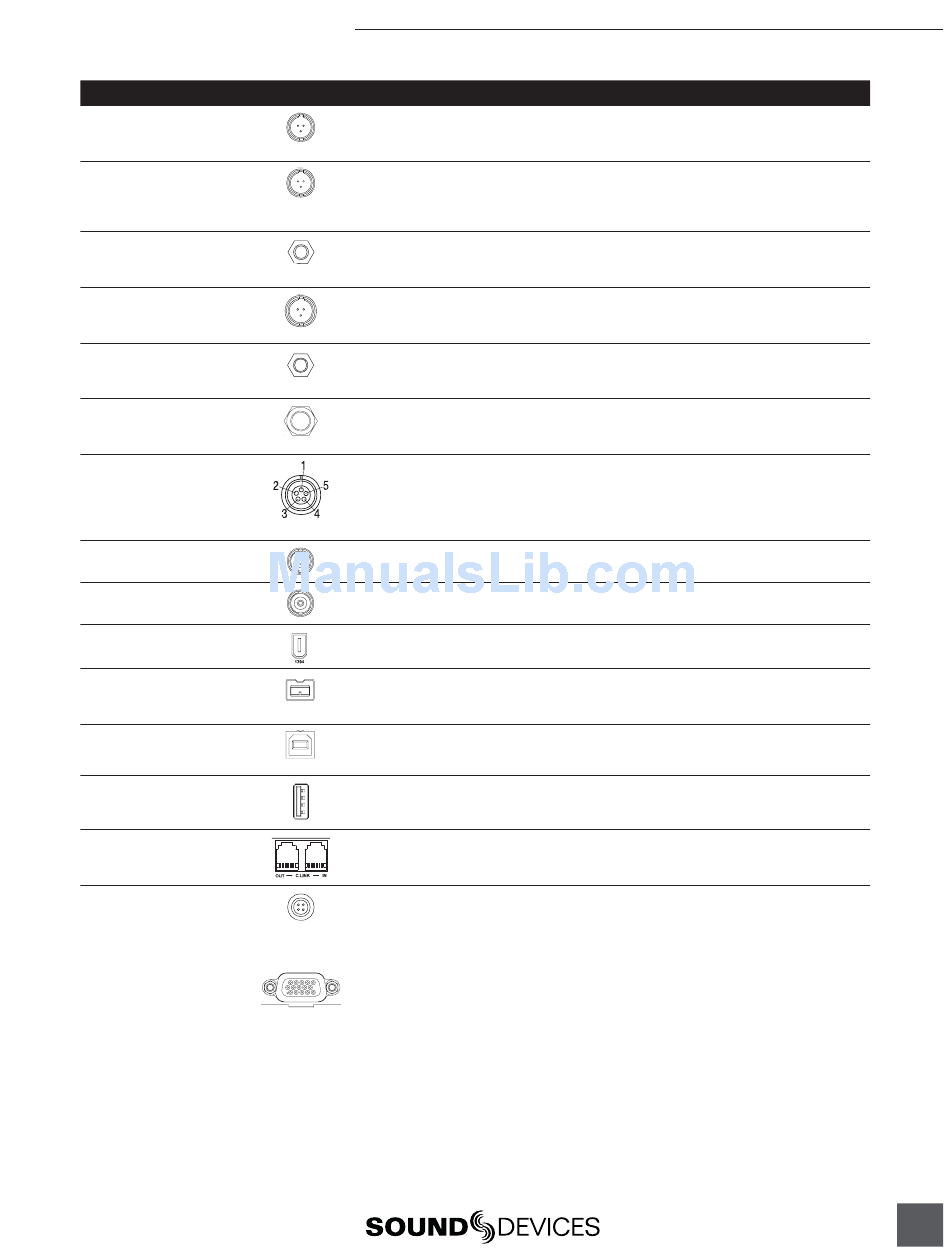

Connector
TA3M
Analog Inputs 5-8
TA3M
Analog Outputs 1-4
3.5 mm
Analog Output 5,6
TA3M
AES Outputs 1-4
3.5 mm
Headphone
1/4-inch Female
Headphone
5-pin LEMO
Time code
Sync Input
Word Clock Output
FireWire 400
(IEEE-1394a)
FireWire 800
(IEEE-1394b)
USB-B
USB-A Keyboard Input
C. Link In / Out
Hirose 4-pin
DC Input
DE-15
Multi-Function Connector
Pin Assignments
1 – ground
2 – signal (+)
3 – signal (-)
1 – ground
2 – signal (+)
3 – signal (-)
tip – signal L
ring – signal R
sleeve – signal ground
1 – ground
2 – signal (+)
3 – signal (-)
tip – signal L
ring – signal R
sleeve – signal ground
tip – signal L
ring – signal R
sleeve – signal ground
1 – ground
2 – SMPTE TC In
3 – ASCII in/out
4 – tuning out
5 – SMPTE TC out
center pin – signal
sleeve – ground
center pin – signal
sleeve – ground
center pin – signal
sleeve – ground
center pin – signal
sleeve – ground
FW800
center pin – signal
sleeve – ground
USB
center pin – signal
sleeve – ground
1 – ground
2 – not connected
3 – not connected
4 – DC (+)
AES I/O, GPIO, PWR
1 – AES 3,4 Input (+)
2 – AES 1,2 Input (+)
3 – AES 5,6 Output (+)
4 – AES 7,8 Input (+)
5 – AES 5,6 Input (+)
6 – EXT DC (-) Ground
7 – EXT DC (-) Ground
8 – LOGIC Output
9 – LOGIC Input
10 – +10V to 18V DC
11 – AES 3,4 Input (-)
12 – AES 1,2 Input (-)
13 – AES 5,6 Output (-)
14 – AES 7,8 Input (-)
15 – AES 5,6 Input (-)
788T/788T-SSD User Guide and Technical Information
Notes
3.3k ohm input impedance, Mic- and Line-level active-
balanced
200 ohm output impedance, active balanced.
For unbalanced connection, pin-1 ground, pin-2 (+) posi-
tive, pin-3 (-) negative. Mates with Switchcraft TA3F-type
connector.
Mates with 3.5 mm TRS jack. Signal is unbalanced.
Mates with TA3F-type connectors., 110 ohm, transformer-
balanced
Mates with 3.5 mm TRS jack.
Mates with 1/4-inch TRS jack.
LEMO B-series connector, pin assignments as viewed on
panel-mounted connector
BNC female, unbalanced, coaxial connection, 75 ohm
connectors recommended
BNC female, unbalanced, coaxial connection, 75 ohm
connectors recommended
6-pin male FireWire 400 IEEE-1394a
9-pin male FireWire 800 IEEE-1394b. Backward com-
patible with FireWire 400 IEEE-1394a to IEEE-1394b
connections.
Data transfer connection to computers only..
For use with USB Keyboards only. Data transfer is not
supported.
Not a telephone jack! Used to connect to CL-1Keyboard
and Remote Roll Accessory. Unit linking is not supported
as it is in the 702, 702T, 722, and 744T recorders.
Charging characteristics defined by user in the Setup
Menu.
The D-Sub connector provides 8 channels of balanced
AES input, 2 channels of AES outputs, GPIO and External
DC powering and is therefore ideal as a single umbili-
cal connection between the 788T and an external digital
mixer.
105
