Sound Devices 722 User Manual And Technical Information

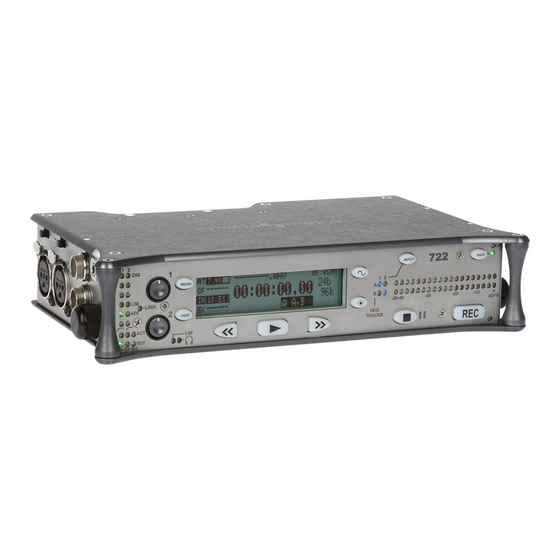

High resolution digital audio recorder
Hide thumbs Also See for 722:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, User Manual and Technical Information
722
High Resolution Digital Audio Recorder
User Guide and Technical Information
fi rmware rev. 2.00
Sound Devices, LLC
300 Wengel Drive • Reedsburg, WI • USA
+1 (608) 524-0625 • fax: +1 (608) 524-0655
Toll-Free: (800) 505-0625
www.sounddevices.com
1.8" HDD
2.5" HDD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 722 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sound Devices 722

Summary of Contents for Sound Devices 722

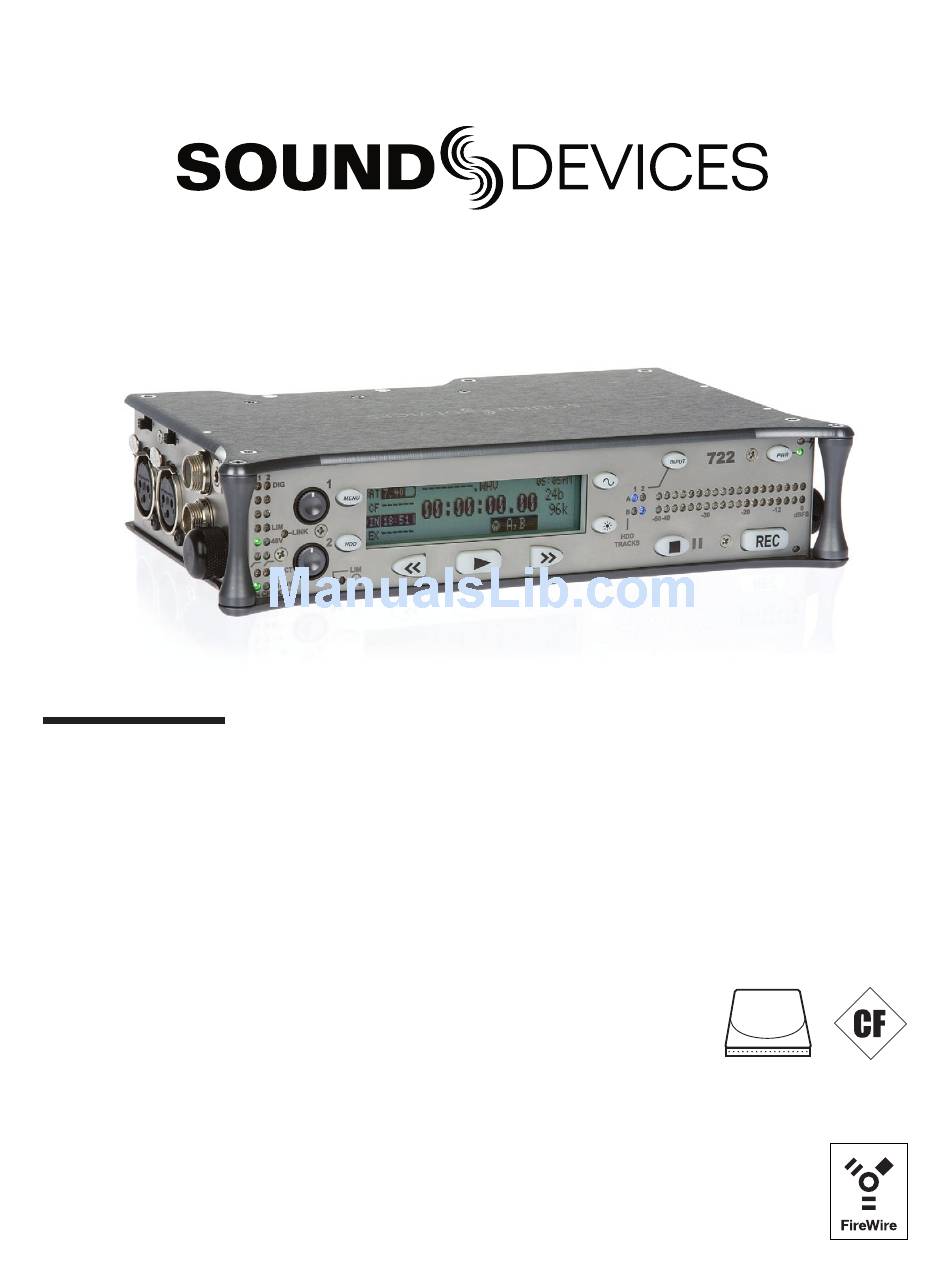

  • Page 1 High Resolution Digital Audio Recorder User Guide and Technical Information fi rmware rev. 2.00 1.8" HDD 2.5" HDD Sound Devices, LLC 300 Wengel Drive • Reedsburg, WI • USA +1 (608) 524-0625 • fax: +1 (608) 524-0655 Toll-Free: (800) 505-0625 www.sounddevices.com...

  • Page 3: Table Of Contents

    722 User Guide and Technical Information Table of Contents Quick Start Guide ......3 File Management .
  • Page 4 LLC. SOUND DEVICES is not responsible for any use of this information. SOUND DEVICES, LLC shall not be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifi cations, repairs, or alterations to this product, or failure to strictly comply with SOUND DEVICES, LLC’s operating and installation instructions.

  • Page 5: Quick Start Guide

    fi lters are activated, as required. Routing Inputs to Tracks Before recording, inputs must be assigned to tracks. Each of the 722’s two inputs can be assigned to the two tracks (A, B). Sixteen possible routing combinations are shown on the front panel with four...

  • Page 6: Recording Parameter Setup

    “letter” accessible drives. Use the appropriate FireWire cable, either 6-pin to 4-pin or 6-pin to 6-pin, for interconnection. Files on the 722 can be treated as if they are local fi les, including renaming fi les, copying, and playing directly from the 722 storage medium. No driv- ers are required with operating systems meeting the specifi...
  • Page 7 722 User Guide and Technical Information In general, it is good practice to copy all needed audio fi les from the 722 to a computer before any process- ing is performed on the fi les. To connect the 722 for FireWire transfer: Stop all playback and recording activity.

  • Page 8: Front Panel Descriptions

    722 User Guide and Technical Information Front Panel Descriptions All settings of the 722 can be accessed and monitored through the front panel LCD and navigation keys. This allows the unit to be placed in a production bag along with fi eld mixers and wireless transmitters and receivers.
  • Page 9 722 User Guide and Technical Information Power Key Fast Forward Key Press and hold to power up the 722. Performs fast-forward (FF) scrubbing Press and hold to power down. through the played fi le when pressed in playback and play-pause mode. Play- Charge LED pause indicated by fl...

  • Page 10: Panel Lock

    722 User Guide and Technical Information Link LED Phantom Power LEDs Indicates that channels 1 and 2 are Indicates that phantom power (48 volts) linked as a stereo pair. In link mode the is active for the individual input. Phan-...

  • Page 11: Lcd Display Descriptions

    722 User Guide and Technical Information LCD Display Descriptions Headphone Source Display Indicates the source for headphone out- Battery Level Indicator put. Sources and selection order are user Shows the voltage level of the remov- selectable in the setup menus.
  • Page 12 Input 1/2 Level External Digital Clock Indicator When control knobs are adjusted, indi- The 722 is locked to a valid external cates the gain level in dB for each analog digital or word clock source when the L input gain control. Top display is input is in the display.

  • Page 13: Left Panel Connectors And Controls

    Headphone Volume Selects the input level and mode of the Adjusts the headphone volume. NOTE: input XLR 1 connector. the 722 is capable of producing ear-dam- aging levels in headphones. Mic-Line Input Switch 2 Tape Output Selects the input level, mic- or line-level of input XLR 2.

  • Page 14: Right Panel Connectors And Controls

    722 User Guide and Technical Information Right Panel Connectors and Controls AES3id Input Word Clock Input and Out Unbalanced digital input accepta two Provides clock input and output for the channel AES3 (or S/PDIF) on BNC con- 722. Word input accepts sample rates nectors.

  • Page 15: Back Panel Descriptions

    722 User Guide and Technical Information Back Panel Descriptions Security Slot Battery Mount Compatible with the Kensington ® Secu- Accepts Sony ® InfoLithium L- or M-Se- rity Slot specifi cation. Useful for secur- ries removable rechargeable batteries, ing the recorder to a fi xed object with a or batteries conforming to this mount.

  • Page 16: Input Setup And Control

    722 User Guide and Technical Information Input Setup and Control The 722 has two inputs and two record tracks. Inputs are selectable between analog or digital sourc- es. Analog inputs are connected with the balanced XLR connectors; digital inputs can be connected to either XLR Input 1 (AES3) or the BNC input (AES3id).

  • Page 17: Input Linking (Stereo Or Ms Decoding)

    722 User Guide and Technical Information amp. The front panel LIM LED ( ) shows that the limiter is engaged. Limiter activity is indicated by additional front panel LEDs, one for each input channel ( ). The input limiters activate only with mic-level inputs.

  • Page 18: Signal Presence And Peak Indicator

    722. The 722 clocks itself to the fi rst digital signal presented to it. If the 722 detects a digital signal on the BNC inputs and locks to that signal, a digital signal applied to the XLR input will be ignored until the fi...

  • Page 19: Input-To-Track Routing

    722 User Guide and Technical Information Input-to-Track Routing The 722 uses a fl exible routing scheme to assign inputs and tracks for recording. The input matrix allows any input to be routed to any recording track. Multiple inputs can be routed to a single track to create mono-mixed recordings.

  • Page 20: Selective Input Muting

    Sampling Rate and Bit Depth When recording to WAV (or BWF fi les) the 722 generates uncompressed, PCM audio fi les at the user- selected sampling rate and bit depth. The 722 LCD calculates available recording time based on the sampling rate, bit depth, number of tracks set for recording and the selected storage media available capacity.

  • Page 21: Bit Depths

    16 bit, meaning the least signifi cant 8 bits are discarded. Once a fi le is recorded its sampling rate and bit depth can not be changed in the recorder. The 722 does not perform sample rate conversion or bit depth changes. File conversion must be done in another en- vironment, such as an audio workstation.

  • Page 22: Clock Slave

    If the 722 is slaved to external word clock, be certain that the source is stable. Loss of the word clock signal during recording can cause the 722 to revert back to its internally set sampling frequency. If this occurs, the portion of the fi...

  • Page 23: Outputs - Analog And Digital

    Outputs – Analog and Digital The 722 has two discrete output buses , the Analog Output Bus (Bus 1) and the Digital Output Bus (Bus 2). Each side (left and right) of the two-channel buses are assigned their audio sources indepen- dently, enabling the 722 to feed multiple audio devices with unique program content.

  • Page 24: Headphone Output

    722 User Guide and Technical Information Headphone Output The 722 headphone output is a fl exible tool for monitoring audio in the fi eld. The 722 allows the user to monitor inputs, tracks, and post-record tracks in a number of combinations. MS stereo monitoring is also available in headphones.

  • Page 25: Ms Stereo Monitoring

    (backlight) key at any time. If DONE is pressed in the fi rst headphone slot, the 722 will select a single option (Tracks A, B) for head- phone monitoring. The 10 factory presets will be erased.

  • Page 26: Headphone Playback Mode

    Headphone Warning Tones The 722 can generate an audible beep, or warning “bell”, in the headphones when an error has oc- curred. The specifi c error will be reported on the LCD. The output level of the warning bell is menu- selectable from off to –12 dBFS in the setup menu.

  • Page 27: Meter Ballistics

    300 mS. While giving a very good visual indication of perceived loudness, VU meters gives poor information on actual signal peaks and are virtually useless for tracking to the 722. In VU mode, the front panel meter labeling is in volume units.

  • Page 28: Tone Oscillator

    722 User Guide and Technical Information Input Peak The 722 has a peak LED associated with each input. These LEDs illuminate when input signal reaches –3 dBFS. There is no user-adjustment to the Input Peak LEDs. These LED’s also function as...

  • Page 29: Recording

    When removing the CF from the 722, always observe the amber CF activity LED. If it is lit, wait until it goes out before removing the CF. If you remove the CF while the LED is lit, the fi le will be corrupted and there is a possibility of FAT corruption as well.

  • Page 30: Playback

    Rotary Switch and press play. AutoPlay The 722 can be set to play back all (playable) audio fi les in a folder. Files will play back in their order in the folder. Autoplay can be set with the following options: •...

  • Page 31: Mp3 Files

    Using an external keyboard via the CL-1 Remote Control and Keyboard Interface the entry of notes is much quicker than using the Rotary Switch. iXML data is generated in WAV fi les recorded by the 722 even though time code is not written to fi le. MP3 Files The 722 can play back MPEG-1 Layer III (MP3) audio fi...

  • Page 32: Take Numbers

    Duplicate File Names When the 722 detects that a duplicate fi le name is going to be generated in any specifi c folder, the 722 changes the fi le name by adding of a letter suffi x before the extension. For instance, if take numbers are reset but fi...

  • Page 33: File Management

    FAT32 fi le system. The 722 formats its internal hard drive and Compact Flash medium as single vol- umes named “722”. All fi les generated by the 722 can either be sent to a Daily Folder, a Scene Folder, or no folder at all. If Daily Folders are selected, the 722 will generate a new folder, named by date, each day upon power-up.

  • Page 34: File Viewer Screen

    fi les and folders. The top line displays the folder path in the form of media\folder name. File names are listed in the order they were recorded. Data fi les not native to the 722 will not show in the File Viewer, although folders that they occupy will be visible.

  • Page 35: File Time And Date

    File Time and Date Similar to a computer fi le system, all fi les recorded by the 722 are stamped with the time and date of fi le generation. To ensure that accurate time-of-day and fi le generation dates are written for each fi le, make certain that the time-of-day clock and calendar are accurately set.

  • Page 36: File Deletion

    Error Conditions: If a fi le is to large for the destination medium, the 722 will give you the option to skip the it or cancel copying. If an error occurs during fi le copying, the 722 will prompt to cancel the transfer. When the destination medium is full, the 722 will report the error and end the transfer.

  • Page 37: Emptying The Trash And False Take Folders

    722 User Guide and Technical Information Emptying the Trash and False Take Folders Files that have been moved to the trash and false take folders (see below) can be permanently de- leted from the recorder. Each drive has its own Trash and False Take folders and they are permantly deleted independently.

  • Page 38: Storage Medium - Internal Drive

    fi les present on the medium. This reduces possibility of corruption and reduces the possibility of fragmented audio fi les. Be certain that all fi les on the 722 drive have been backed up to another media before formatting. Once formatted, all data on the drive will be erased.

  • Page 39: Drive Failure

    The mechanical construction of the 722 is designed to minimize the transmission of shock to the hard drive. The drive is isolated from the chassis using special shock-reducing closed-cell foam. This material increases the amount of shock the hard drive can withstand.

  • Page 40: Storage Medium - Compact Flash

    Compact Flash (CF) is a practical, portable storage medium for audio recording. Its speed, reliability, and price continue to evolve to the benefi t of portable recorders. The 722 can write to and read from CF as either its sole recording medium or simultaneously with the internal hard drive.

  • Page 41: Testing

    SanDisk, and Kingston Technology cards in capacities from 128 MB and above will successfully operate in the 744T. The unit will support up to 2 TB of data. It is not feasible for Sound Devices to test all available CF cards for compatibility or maximum throughput with the 722. Use the CF trans- fer speed test to verify that an installed card can support the needed read/write speed.

  • Page 42: Formatting

    FAT32 volumes. Upon connection to an unformatted (or non-FAT32 formatted) external drive, the 722 will prompt the user to format the drive. If the drive is already formatted as a FAT32 volume the drive will be ready to be selected as a storage medium. The front panel drive LED will illuminate to show which drives are available for recording.

  • Page 43: File Transfer - Firewire

    “Disconnect External Media” icon in the system tray. To disconnect the 722 from FireWire: Make certain that any software applications that reference the 722 drive are closed and that all fi le copy functions to and from the 722 have completed.

  • Page 44: Powering

    In Windows, right-click the drive icon and select “eject.” The cable between the computer and 722 can now be disconnected. If a future connection is going to be made the cable can be left connected.

  • Page 45: External Powering And Battery Charging

    DC source the power LED and battery voltage dis- play fl ashes, to alert the user. When the external DC reaches 9 volts, the 722 will automatically switch over to the removable battery. If no battery is installed the unit will shut down.

  • Page 46: Auto Functions With External Powering

    Transfer the fi rmware fi le (it will be named version _ number.prg) to the 722 internal hard drive via FireWire or onto a CF card. If there are multiple fi rmware fi les on the media, the 722 will select the fi rst fi...

  • Page 47: Setup Menu Presets

    fi rmware fi le is present on either the internal hard drive or CF the recorder will prompt if the path is the proper fi le to use. Press the Rotary Switch or the tone key to say yes. The 722 will begin fi rmware upgrade and validation.
  • Page 48 722 User Guide and Technical Information Factory Film Reporter Music Parameter Preset Preset Preset Preset Input #4 Gain 0 dB 0 dB 0 dB 0 dB Input #3/4 Source Auto Auto Auto Auto 40 Hz, 40 Hz, 80 Hz, 40 Hz,...

  • Page 49: User Setups

    All of the set parameters in the table above can be saved in a fi le to internal hard drive or to CF card. By entering the Get/Save Setup Menu, the user can save or retrieve parameters to a data fi le. This binary fi le is named 722.SUP and is saved in the SOUNDDEV folder on the selected medium.

  • Page 50: Setup Menu

    722 User Guide and Technical Information Setup Menu The setup menu controls a wide range of parameters for the 722, including all audio routing and re- cording settings. The setup menu is a single, fl at architecture with no sub-menus, easing navigation.
  • Page 51 Setup Name Setup Description Setup Parameters Rec: Pre-Roll Time Selects the amount of pre-roll time the 722 will 0–10 sec. @ 48 kHz add to the beginning of each file. 0–5 sec. @ 88.2–96.096 kHz 0–3.5 sec. @ 192 kHz...
  • Page 52 File: Max Size Selects the file size where the 722 will close, • OFF (4 GiB) • 3.6 GB then start a new file. The 722 will not record a • 4 GB • 1.8 GB file larger than the selected size.
  • Page 53 Selects the date syntax of the recorder. • mm/dd/yy • dd/mm/yy Time/Date: Set Sets the internal date and time of the 722. <time, date> Clock is not set until <done> is selected LCD: Contrast Sets the contrast level of the LCD display.
  • Page 54 Formats the installed Compact Flash card Caution, while various PC utilities are able to recover files from re-formatted drives, once formatted, old audio data is not accessible by the 722. CF: Repair Runs a utility to repair minor errors in the directory structure of the Compact Flash.
  • Page 55 722 User Guide and Technical Information Setup Name Setup Description Setup Parameters CL-1: Logic Out Assign Each logic output pin can be assigned to go • Undefined high when the unit is in the selected mode. • Stop Logic input overrides logic output selection.

  • Page 56: Specifi Cations

    722 User Guide and Technical Information Specifi cations System Sampling Frequency internal: 32, 44.1, 48, 48.048, 88.2, 96, 96.096, 176.4, 192 kHz external: 32–192 kHz via word clock input Internal Data Path and 32 bit, 192 dB dynamic range Processing A/D, D/A Converters 24 bit, 192 kHz sample rate maximum.

  • Page 57: Dimensions And Weight

    722 User Guide and Technical Information Inputs/Outputs – Digital AES3-id 75 ohm, 0.5 V p-p, S/PDIF compatible with RCA adapter Digital Storage Internal hard drive ATA-5 interface 1.8-in or 2.5-in hard drive 4200–7200 RPM supported, FAT32 formatted, up to 2 TB...

  • Page 58: Connector Pin Assignments

    722 User Guide and Technical Information Connector Pin Assignments Each connector type, electrical characteristics, and pin assignment is shown below. Connector Pin Assignments Notes 1 – ground 7.5k ohm input impedance, mic level (Analog Inputs) 2 – signal (+) 20k ohm input impedance, line level 3 –...

  • Page 59: Power Consumption Variables

    The best determination of your run time is to experiment with a given record- ing setup. The 722 power consumption varies over a range between 4 W to 20 W, depending on active func- tions. The following functions have the most signifi cant affect on power consumption: Inputs Active analog inputs increase power consumption.

  • Page 60: Mp3 Compressed Record Time In Hours

    1422 1185 The chart above shows recording time available with the 722 when recording to an MP3 fi le. Time is expressed in hours at the specifi ed MP3 supported by the 722. Note that all recordings are two-chan- nel recordings.

  • Page 61: Cl-1 Remote Control And Keyboard Interface

    722. When using the CL-1 front panel controls and menu selections on the 722 can be mapped to keyboard shortcuts, allowing for full keyboard control of the recorder. Additionally the CL-1 has electrical contacts that can be programmed as inputs or outputs.

  • Page 62: Logic Inputs And Outputs

    722 User Guide and Technical Information Assignable Keys Shift- Ctrl- Alt- F1- F12 Logic In 1-6 To program a shortcut perform the following steps: Enter the External Keyboard Assignment Setup Menu selection. Shortcut number. Up to 50 shortcuts can be programmed Select an unassigned shortcut number for programming.

  • Page 63: Accessories

    Li-ion battery; 4800 mAh battery; it’s good to have several spares XL-BNC • BNC to BNC cable, to connect word clock from external sources to the 722 for synchronizing; also used to sync external devices from the word clock of the 722 XL-H •...

  • Page 64: Front Panel Button Shortcuts

    722 User Guide and Technical Information Front Panel Button Shortcuts To speed navigation the 7-Series has numerous navigation “shortcuts”. For combinations, hold down the fi rst identifi ed key and continue to hold while pressing the next keys. Key Sequence...

  • Page 65: Warranty And Technical Support

    Telephone: +1 (608) 524-0625 / Toll-Free in the U.S.A.: (800) 505-0625 Fax: +1 (608) 524-0655 Sound Devices cannot guarantee that a given computer, software, or operating system confi gura- tion can be used satisfactorily with the 722 based exclusively on the fact that it meets the minimum system requirements.

  • Page 66: Ce Declaration Of Conformity

    Sound Devices, LLC 300 Wengel Drive Reedsburg, WI 53959 USA declares that the product, 722 Professional Digital Audio Recorder is in conformity with and passes: EN55103-1, 1997 EMC-product family standard for audio, video, audio- visual and entertainment lighting control apparatus for professional use.

  • Page 67: Software License

    Sound Devices, LLC product, even if Sound Devices, LLC has been advised of the possibility of such damages.
  • Page 68 722 rev. 2,00 • Printed in U.S.A.
