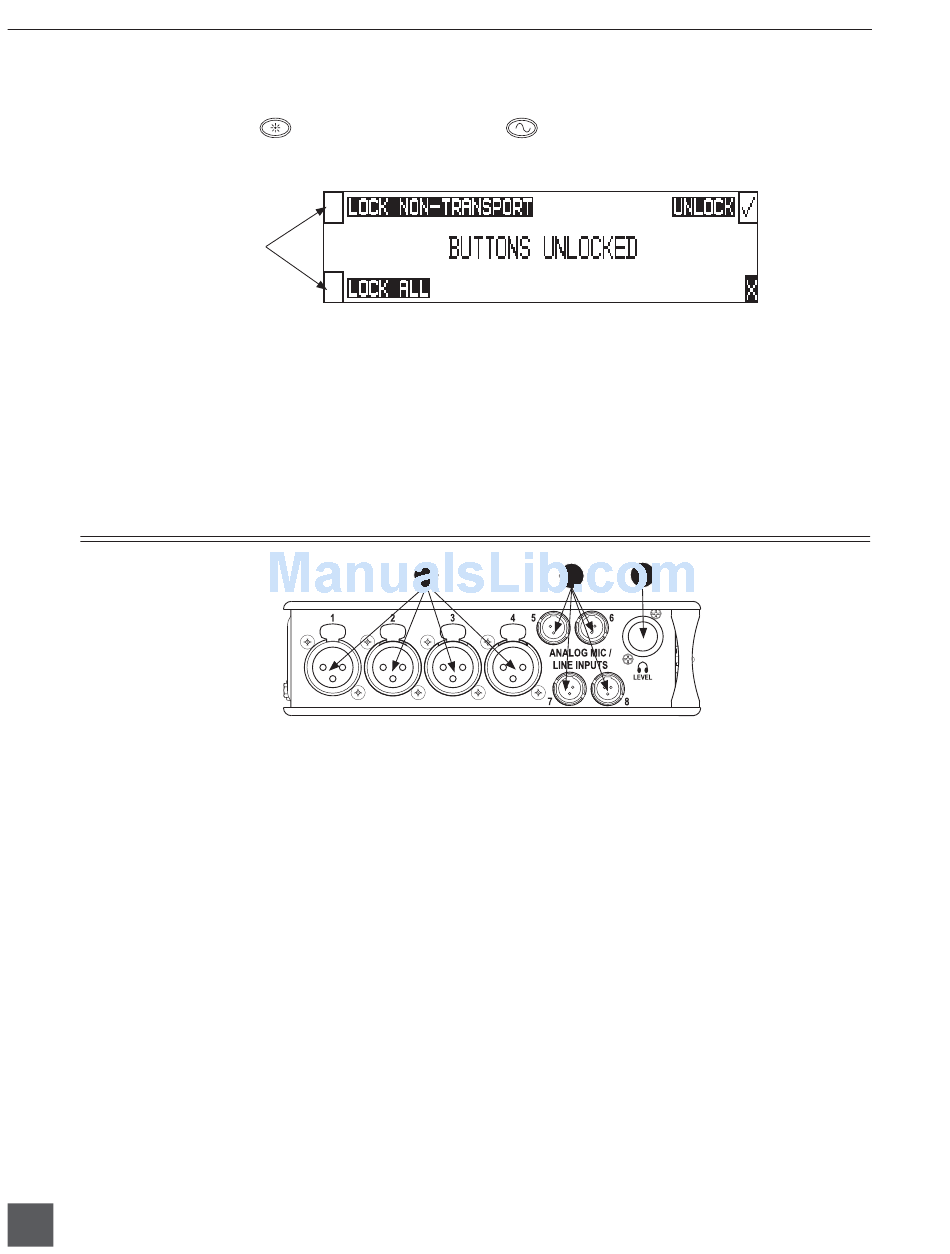

Panel Lock

Press and hold the
ton Lock Screen. Button lock prevents unintentional setting changes and/or record status. The 788T
displays any button lock options currently enabled.
select the soft keys to
activate the appropriate
button lock mode
There are three modes:
• Unlocked – all keys are accessible and operate normally.
• Non-Transport Lock – All front panel controls are locked except the Record, Stop, Play, Rewind
and Fast Forward keys.
• Lock All – All front panel keys are locked except the REC key. The REC key is kept active so
the user can initiate recording after entering this mode and enter cue markers. To stop record-
ing in this mode, you must disengage the panel lock and press the stop key.

Left Panel Connectors and Controls

XLR Analog Inputs Channels 1-4
1)
Active-balanced analog microphone- or
line-level input for inputs 1-4 on XLR
connector. Input type is set within the
Input Settings Window. Pin-1 ground,
pin-2 (+), pin-3 (
TA3 Analog Input Channels 5-8
2)
Active-balanced analog microphone-
or-line-level input connector for inputs
5-8. Input type is set within the Input
Settings Window. Pin-1 ground, pin-2
(+), pin-3 (
12
v. 1.71 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
LCD backlight key then the
−
).
−
).
TONE key to bring up the front panel But-
1
2
Headphone Volume
3)
Adjusts the headphone volume. NOTE:
the 788T is capable of producing ear-
damaging levels in headphones. Please
use with caution
3
