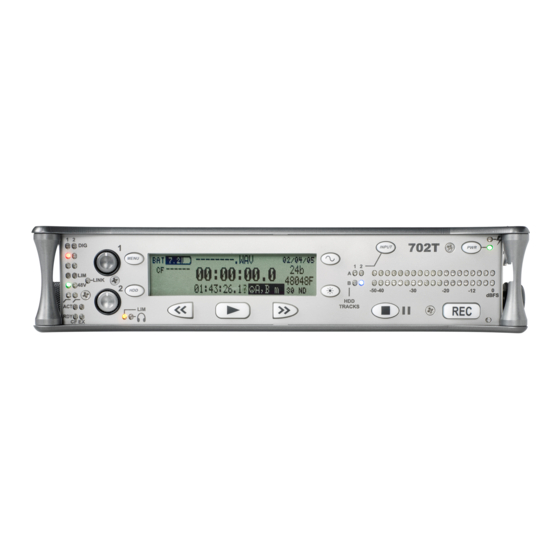

702T
High Resolution Digital Audio Recorder with Time Code
User Guide and Technical Information
firmware rev. 2.67
Sound Devices, LLC
E7556 State Rd. 23/33 • Reedsburg, WI • USA
+1 (608) 524-0625 • fax: +1 (608) 524-0655
Toll-Free: (800) 505-0625
www.sounddevices.com
support@sounddevices.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 702T and is the answer not in the manual?

Questions and answers

Related Manuals for Sound Devices 702T

Summary of Contents for Sound Devices 702T

  • Page 1 702T High Resolution Digital Audio Recorder with Time Code User Guide and Technical Information firmware rev. 2.67 Sound Devices, LLC E7556 State Rd. 23/33 • Reedsburg, WI • USA +1 (608) 524-0625 • fax: +1 (608) 524-0655 Toll-Free: (800) 505-0625 www.sounddevices.com...
  • Page 2 backside - front cover...

  • Page 3: Table Of Contents

    702T User Guide and Technical Information Table of Contents Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 .WAV...
  • Page 4 With documentary and ENG sound engineers in mind, the 702T is very small, while still being feature-rich. No other recorder on the market matches its size and feature set. In addition, its learn- ing curve is quite short—powerful does not mean complicated.

  • Page 5: Limitation Of Liability

    OR ARISING OUT OF ITS CONTRACTS WITH ITS CUSTOMERS OR OTHER THIRD PARTIES. NOTWITHSTANDING AND WITHOUT LIMITING THE FOREGOING, IN NO EVENT SHALL SOUND DEVICES BE LIABLE FOR ANY AMOUNT OF DAMAGES IN EXCESS OF AMOUNTS PAID BY THE END USER FOR THE PRODUCTS AS TO WHICH ANY LIABILITY HAS BEEN DETERMINED TO EXIST.

  • Page 7: Quick Start Guide

    Routing Inputs to Tracks Before recording, inputs must be assigned to tracks. Each 702T input (1 and 2) can be assigned to the two recorded tracks (A and B). These 16 possible routing combinations are shown on the front panel...

  • Page 8: Selecting Recording Parameters And File Destination

    Select the time code run mode: free run, record run, 24 hr. run, or one of the external run modes. Typically, the 702T is used as the master clock source and all other cameras and slates are jammed to it.

  • Page 9: Firewire File Transfer

    702T CF card can be treated as if they are local files, including renaming files, copying, deleting and playing directly through the 702T. In general, it is good practice to transfer sound files from the 702T to a computer before any processing is performed on the files.

  • Page 10: Front Panel Descriptions

    702T User Guide and Technical Information Front Panel Descriptions All 702T settings can be accessed and monitored through the front panel LCD and navigation but- tons. This allows the unit to be placed in a production bag along with field mixers, wireless transmit- ters, and wireless receivers.
  • Page 11 Play-pause indicated by flash- Power Button ing A-time on LCD. Fast forward rate Press and hold to power up the 702T. increases the longer the button is held. Press and hold to power down. In play-stop mode (indicated by flashing...

  • Page 12: Panel Button Lock

    Panel Button Lock Press and hold the backlight button then the tone button to bring up the Button Lock screen. Button Lock prevents accidental changes to settings or record status. The 702T displays any button lock options enabled. select the soft buttons to...

  • Page 13: Lcd Display Descriptions

    FireWire me- Alternating display between the set date dia. Numbers show time in hours and and time of the 702T. This information is minutes based on the presently selected written as the creation and modification number of record tracks, sample fre- date for recorded sound files.

  • Page 14: Back Panel Descriptions

    External Digital Clock Indicator to 50 dB, line input range is from 6 dB Indicates that the 702T is locked to a to 18 dB. “Locked” will be displayed valid external AES or word clock source. on the LCD when the pot is turned with digital inputs selected or with line inputs set to menu control.

  • Page 15: Left Panel Connectors And Controls

    702T Headphone Level XLR Input 2 Adjusts the headphone output level. Active-balanced analog microphone- or NOTE: the 702T is capable of producing line-level input for input 2. ear-damaging levels in headphones. Mic-Line Input Switch Tape Output Selects the input level and mode of the Unbalanced tape (–10 dBv nominal)

  • Page 16: Right Panel Connectors And Controls

    Rotary Switch storage devices. Also used to attach ex- ternal FAT32-formatted FireWire drives In record and playback modes, selects to the 702T for direct recording and the headphone monitor source; push copying. action is user selectable. When in the Setup Menu, the Rotary Switch moves C.

  • Page 17: Input Setup And Control

    The BNC input signal type is set in the menu settings INPUT 1,2: SOURCE. For most situations the appropriate setting is auto select—the 702T will choose the input type based on signal present. The 702T is capable of off-speed sample rates when clocked from either external digital inputs or the word clock input.

  • Page 18: Input Linking (Stereo Or Ms Decoding)

    702T User Guide and Technical Information limiters will prevent unusually high input signal levels from clipping the analog input stage of the preamp. The front panel LIM LED ( ) shows that the limiter is engaged. Limiter activity is indicated by additional front panel LEDs, one for each input channel ( ).

  • Page 19: Digital Input - Aes3

    702T. The 702T clocks itself to the first digital signal presented to it. If the 702T detects a digital signal on the BNC inputs and locks to that signal, a digital signal applied to the XLR input will be ignored until the first digital signal is removed.

  • Page 20: Input-To-Track Routing

    Input-to-Track Routing The 702T uses a flexible routing scheme to assign inputs and tracks for recording. The input matrix allows any input to be routed to any recording track. Multiple inputs can be routed to a single track to create mono-mixed recordings.

  • Page 21: Selective Input Muting

    702T User Guide and Technical Information arrow indicates high- lighted input is assigned to highlighted track select to exit menu and apply selected routing selet to move up and down menu select to remove input assignment Using either the Rotary Switch or the up and down arrows, navigate to desired input-to-track combina- tions.

  • Page 22: Sampling Rate And Bit Depth

    See Time Code section for more information about the 48.048F, 47.952F, and 96.096F rates. Bit Depths The 702T records at bit depths of either 16 or 24 bit. 24 bit recording provides greater dynamic range and addition headroom for signal peaks relative to 16 bit recordings. 24 bit recording (versus 16 bit) is a significant benefit for field production audio tracks.

  • Page 23: Word Clock

    If the 702T is slaved to external word clock, be certain that the source is stable. Loss of the word clock signal during recording can cause the 702T to revert back to its internally set sampling frequency. If this occurs, the portion of the file recorded after the loss of word clock may not play back at the prop- er speed.

  • Page 24: Link - Multi-Unit Linking

    702T User Guide and Technical Information C. Link – Multi-Unit Linking The proprietary C. Link (control link) connection allows multiple 702T, 702T, 722, and 744T recorders to be connected and clocked together. The C. Link also enables the CL-1 Remote Control and Key- board interface to control the 702T with an attached keyboard or via switch closures.

  • Page 25: Outputs - Analog And Digital

    Outputs – Analog and Digital The 702T has two independent output buses , the Analog Output Bus (Bus 1) and the Digital Output Bus (Bus 2). Each side (left and right) of the two-channel buses are assigned audio sources indepen- dently, allowing the 702T to feed multiple audio devices with unique program content.

  • Page 26: Headphone Output

    Because of the record buffering topology of the 702T, a delay of up to 12 seconds can be expected before recorded audio appears at the output. The 702T will play back recorded audio from the media highlighted on the LCD panel (see...

  • Page 27: Ms Stereo Monitoring

    (backlight) button at any time. If DONE is pressed in the first headphone slot, the 702T will select a single option (Tracks A, B) for head- phone monitoring. The 10 factory presets will be erased.

  • Page 28: Headphone Playback Mode

    Headphone Warning Tones The 702T can generate an audible beep, or warning “bell”, in the headphones when an error has oc- curred. The specific error will be reported on the LCD. The output level of the warning bell is menu- selectable from off to –12 dBFS in the Setup Menu.

  • Page 29: Meter Ballistics

    300 mS. While giving a very good visual indication of perceived loudness, VU meters gives poor information on actual signal peaks and are virtually useless for tracking to the 702T. In VU mode, the front panel meter labeling is in volume units.

  • Page 30: Tone Oscillator

    702T User Guide and Technical Information Input Peak The 702T has a peak LED associated with each input. These LEDs illuminate when input signal reaches –3 dBFS. There is no user-adjustment to the Input Peak LEDs. These LED’s also function as...

  • Page 31: Lcd Gain Display

    The 702T generates SMPTE time code from this number and extrapolates it based on the time code frame rate for playback. All files generated by the 702T have time code numbers begin on the 0 frame (or 02 in DF modes). If necessary, pre-roll is dynamically applied to accomplish this. This simplifies synchronization in post-pro- duction.

  • Page 32: Frame Rate

    Sound Devices Wave Agent Beta for Mac OS and Windows computers allows users to change the Frame Per Second Stamp of any file. This is useful when the wrong Frame Rate was selected at the time of re- cording.

  • Page 33: Time Code Modes

    “jamming value” in the jam menu. Record Run The time code generator runs only when the 702T is recording. Time code in this mode defaults to 00:00:00:00 at power-up. When switching to record run from another mode, the internal generator will stop at the last number generated.

  • Page 34: Time Code Hold Off

    When external code advances, the 702T enters record mode automatically. When the external code is stopped, the 702T generator pauses and recording is stopped. If the external time code is removed the internal generator continues to run to preserve continuous time code. Useful for time code transmission over RF where RF “hits”...

  • Page 35: Jam Menu

    LCD screen; the 702T internal generator, user bits, and frame rate are shown at the bottom of the screen. To jam the 702T from an external value, press soft button next to the jam button or the Rotary Switch button. The screen will display JAMMING. Once the 702T is jammed to the external time code, the external and internal numbers will match and run in sync.

  • Page 36: User Bits

    2 frames = 108 frames per hour. To sync the 702T to a video camera, first determine if the camera is in drop frame or non-drop frame mode. If you, the DP or the producer are unsure about what setting to use, check with post-produc- tion, if possible.

  • Page 37: Recording

    Jam the camera from the 702T using a LEMO-5 to BNC adapter cable connected to the time code input on the video camera. Switch the camera to free run time code. The 702T time code should appear in the time code display on the camera.

  • Page 38: Pre-Record Buffer

    FAT corruption as well. Pre-Record Buffer To prevent missing record cues or up-cutting takes, the 702T has pre-record (or pre-roll) buffering available. When active, pre-record begins recording at a set number of seconds PRECEDING the record button being pressed.

  • Page 39: Record Timer

    AutoPlay The 702T can be set to play back all valid sound files in a folder. Files will play back in their order they were placed in the folder. Autoplay can be set with the following options: •...

  • Page 40: Audio File Formats

    MP2, MP3, or FLAC. Files created by the 702T receive the .WAV, .MP2, .MP3, .FLAC file extensions. The 702T will read files with the .BWF extension. .WAV The 702T has two file type options for recording WAV files, mono and poly. Select the file type in the Setup Menu option REC: FILE TYPE. Monophonic When WAV Mono is selected, the 702T will generate a separate audio file for each recorded track.

  • Page 41: .Flac

    The 702T includes iXML (revision 1.5) data in addition to the broadcast wave extension data. For iXML-aware software applications this data is available. For applications that don’t recognize iXML, this information is ignored.

  • Page 42: Recording Time Calculation

    30.3 50.6 The chart above shows recording time available with the 702T. Time is expressed in hours per track (track-hours) at the specified data rate supported by the 702T. If recording two tracks, divide the track hours figure by two. Similarly for four-track recording, divide track-hours by four. Note that the 702T supports additional sampling rate / bit depth combinations, however, only the most com- mon are included below.

  • Page 43: Mp3 Compressed Record Time In Hours

    1777 1422 1185 The chart above shows file time available with the 702T with MP3 files. Time is expressed in hours at the specified MP3 supported by the 702T. Note that all recordings are two-channel recordings. Compressed Audio When digital audio is compressed using some form of lossy, perceptual process such as MPEG2- Layer3 (MP3 audio), Windows Media encoding (WMA), ATRAC encoding (used in MiniDisc), AAC (MPEG-4 audio), or others - it can have a significant reduction in its data rate.

  • Page 44: Scene Name/Numbering

    “-” or “T”. Take numbers can be overridden and a new take number can be set in the Setup Menu. If the 702T detects a file with a duplicate name in the destination folder, a letter suffix, starting with “A”...

  • Page 45: Mono Track Name Designators

    Duplicate File Names When the 702T detects that a duplicate file name is going to be generated in a specific folder, the 702T changes the file name by adding of a letter suffix before the extension. For instance, if take numbers are reset but files are recorded to the same folder as previous files, a suffix “A”...

  • Page 46: File Management

    Folder, a Daily Folder, or a Scene Folder. Folder Actions All files generated by the 702T can be saved to the Root directory, a Project Folder, a Daily (Roll) Folder, or a Scene Folder (Files are saved to the Root directory by default). File organiza- tion is managed in the Setup Menu option FILE: FOLDER OPTIONS.

  • Page 47: File Finder Navigation

    HDD button. By default the folder with the last recorded or played audio file will be opened. The 702T knows this file name by reading a text file, named SDINFO.TXT, which is written to each time the unit records or plays.

  • Page 48: File Time And Date

    FAT32 has a maximum individual file size limitation of 4 GB. While it is possible to have thousands of files on the 702T CF card, the largest any single file may be is 4 GB. The 702T automatically splits audio files before the 4 GB size is reached and begins recording to a new file. When joined in an edit- ing program, these files match seamlessly with no samples lost.

  • Page 49: Setting/Clearing Flag Bits

    Error Conditions: If a file is to large for the destination medium, the 702T will give you the option to skip the it or can- cel copying. If an error occurs during file copying, the 702T will prompt to cancel the transfer. When...

  • Page 50: File Deletion

    702T User Guide and Technical Information File Deletion Any file or folder on either CompactFlash or external FireWire drive can be deleted. Permanently deleting files is a two-step process. Similar to Mac OS and Windows operating systems, the 7-Series uses a “trash” folder to temporarily hold files which have been deleted. To send a file to the trash,...

  • Page 51: Take Number Increments

    Take Status Takes recorded by the 702T can be marked as Circled or as No Good. Take Status is used to mark the quality of the take so that post can quickly identify which takes to use. The Take Status of the last take recorded can be quickly changed in the Take Status Menu.

  • Page 52: Compactflash Recording Media

    Press the soft Circle (Menu) key to mark the take as Circled or press the soft No Good (HDD) key to mark the take as No Good. The check mark appears in the selected box and the 702T automatically returns to the Main Display.

  • Page 53: Formatting

    The 702T can format and use Compact Flash cards with a minimum capacity of 64 MB. There is no prac- tical limit to the maximum Compact Flash card capacity (2 TB).

  • Page 54: Storage Medium - External Firewire Drives

    CompactFlash, substituting the external drive menu selection for the CF. After recording to an external drive has stopped, it may take several seconds for the 702T to finish “housekeeping” on drive. This is especially true when recording to DVD-RAM disks, which generally have slower throughput than hard drives.

  • Page 55: Firewire Bus Powering

    The six-pin FireWire port on the 702T provides power for bus-powered FireWire drives. The follow- ing conditions should be observed when connecting to bus-powered drives. • Bus powering a drive requires external DC powering of the 702T. The 702T cannot operate bus- powered drives from an attached Li-ion battery.

  • Page 56: File Transfer - Firewire

    The 702T’s FireWire (IEEE-1394) port makes transfer of recorded files to a computer quick and easy. When connected, the CompactFlash card of the 702T will mount to a Mac OS X or Windows comput- er as a local, removable mass storage devices. Using Mac Finder, Windows Explorer, or any other file utility, files can be copied, read, and deleted directly to and from the 702T Compact Flash card.

  • Page 57: Powering

    In Windows, right-click the drive icon and select “eject.” The cable between the computer and 702T can now be disconnected. If a future connection is going to be made the cable can be left connected.

  • Page 58: Time Code Clock Battery

    DC source the power LED and battery voltage display flashes, to alert the user. When the external DC reaches 9 volts, the 702T will automatically switch over to the removable battery. If no battery is installed the unit will shut down.

  • Page 59: Power-Up Messages

    The best determination of your run time is to experiment with a given record- ing setup. The 702T power consumption varies over a range between 4 W to 20 W (12 volts), depending on ac- tive functions. The following functions have the most significant affect on power consumption: Inputs Active analog inputs increase power consumption.

  • Page 60: Firmware Upgrades

    Transfer the firmware file (it will be named VERSION _ NUMBER.PRG) to a CompactFlash card in the 702T via FireWire. If there are multiple firmware files on the media, the 702T will indicate the firmware file listed to apply. To prevent confusion, ensure that there is only one firmware file available on either 702T media.

  • Page 61: Cl-1 Remote Control And Keyboard Interface

    PS/2 compliant computer keyboards and enables external devices to control the 702T. When using the CL-1, front panel controls and menu selections on the 702T can be mapped to keyboard shortcuts, allowing for full keyboard control of the recorder. Additionally the CL-1 has contact closures for programming remote inputs or outputs.
  • Page 62 Goes to the end of the string being edited Assignable Shortcuts Keyboard shortcuts can be programmed to control nearly every function on the 702T. Shortcuts can select and change menu items with a simple key strokes. Combinations of computer keyboard func- tion keys, along with Control-, Alt-, and Shift- can also be programmed.

  • Page 63: Logic Inputs And Outputs

    702T User Guide and Technical Information Select an unassigned shortcut number for programming. If a duplicate key sequence is selected the low- est shortcut number action takes place. The example below shows the F1 key being reprogrammed. After selecting a key sequence select the desired Setup Menu item or action. The example below shows the reprogramming of the F1 key to change the sampling rate to 48048.

  • Page 64: Logic Inputs

    The 702T has four built-in presets and one user preset per media. Built-In Presets The 702T is shipped from the factory with the factory preset applied. Its settings are listed below. Three additional presets, film, reporter, and music presets allow for quick setup of typical param- eters for the defined application.
  • Page 65 702T User Guide and Technical Information Film Reporter Music 702T Presets Factory Preset Preset Preset Preset Rec: Timer Start Disabled Disabled Disabled Disabled Rec: Timer Stop Disabled Disabled Disabled Disabled Rec: Record Indicator Normal Numbers Normal Numbers Normal Numbers Normal Numbers...

  • Page 66: User Setup Data File

    All of the set parameters in the table above can be saved to a date file on the CompactFlash card. By entering the Get/Save Setup Menu, the user can save or restore parameters to and from this data file. This binary file is named 702T.SUP and is saved in the SOUNDDEV folder on the CompactFlash card v. 2.67...

  • Page 67: Setup Menu

    702T User Guide and Technical Information Setup Menu The chart below describes the available setting for the 702T. Setup Name Setup Description Setup Options Quick Setup Allows the user to quickly apply default menu • Load Factory Settings setups and save/retrieve user setups to disk - restores the factory default settings or CF.
  • Page 68 Setup Name Setup Description Setup Options Rec: Pre-Roll Time Selects the amount of pre-roll time the 702T 0–10 sec. @ 48 kHz will add to the beginning of each file. 0–5 sec. @ 88.2–96.096 kHz 0–2 sec. @ >96.096–192 kHz...
  • Page 69 File: Max Size Selects the file size where the 702T will close, • 4 GB CF (3.6 GB) then start a new file. The 702T will not record • 2 GB CF (1.8 GB) a file larger than the selected size.
  • Page 70 Time Code: Hold Off Sets the duration that a valid time code signal 0.0 to 8.0 seconds adjustable in increments of .1 has to be recognized by the 702T before seconds generating a new take while in Ext TC-Auto Record and Ext TC/cont-Auto Record modes.
  • Page 71 Selects the date syntax of the recorder. • mm/dd/yy • dd/mm/yy Time/Date: Set Sets the internal date and time of the 702T. <time, date> Resetting the time re-jams the internal time Clock is not set until <done> is selected code generator to the set time. Setting the internal clock during a production day will require time code devices to be re-jammed.
  • Page 72 702T User Guide and Technical Information Setup Name Setup Description Setup Options HP: Monitor Modes Select the sequence of the modes that appear Up to 20 source selections can be entered in any in the Headphone Source Display on the LCD.

  • Page 73: Setup Menu Shortcuts

    • German • French CL-1: Re-program The CL-1 has its own firmware which is sup- plied from the 702T. This utility updates the CL-1 firmware. CL-1: Logic Out Assign Each logic output pin can be assigned to go • Undefined high when the unit is in the selected mode.

  • Page 74: Front Panel Button Shortcuts

    Jam Menu Menu and HDD Enters the time code jam menu. (702T &744T Only) Button Lock Backlight and Tone Press backlight then tone to lock all front panel buttons except for Record, Stop and Play.

  • Page 75: Connector Pin Assignments

    702T User Guide and Technical Information Connector Pin Assignments Each connector type, electrical characteristics, and pin assignment is shown below. Connector Pin Assignments Notes 1 – ground 7.5k ohm input impedance, mic level (Analog Inputs) 2 – signal (+) 20k ohm input impedance, line level 3 –...

  • Page 76: Specifications

    702T User Guide and Technical Information Specifications System Sampling Frequency internal: 32, 44.1, 47.952, 48, 48.048, 88.2, 96, 96.096, 176.4, 192 kHz external clocking: 32–192 kHz via word clock input Internal Data Path and 32 bit, 192 dB dynamic range...
  • Page 77 702T User Guide and Technical Information Output Analog Line Output Clipping +20 dBu minimum, 10k ohm load Level Attenuation & Resolution 0–40 dB, 1 dB increments Output Topology Line: fully electronically-balanced, RF, ESD, short, and overload protected; pin-2 driven hot, pin-3 driven cold;...

  • Page 78: Accessories

    Available accessories from Sound Devices include: CL-1 Remote Control and Keyboard Interface used to control the 702T’s record start and stop functions using a toggle switch. Allows user to connect a PS/2 keyboard for control and metadata entry.
  • Page 79 LCD glass from scratches and water. Kit of four covers. XL-LL 5-pin LEMO to 5-pin LEMO cable, used to connect the 702T time code circuit to Ambient time code sync boxes, slates, and controllers or to jam one 702T to another time code equipped 7-Series recorder; additionally used to jam Aaton cameras from the 702T, 20-inch coiled, 55-inch full extension..

  • Page 80: Ce Declaration Of Conformity

    CE Declaration of Conformity According to ISO/IEC Guide 22 Sound Devices, LLC 300 Wengel Drive Reedsburg, WI 53959 USA declares that the product, 702T and 702T Professional Digital Audio Recorders are in conformity with and passes: 89/336/EEC EMC Directive EN55103-1, 1997...

  • Page 81: Software License

    Sound Devices, LLC product, even if Sound Devices, LLC has been advised of the possibility of such damages.

  • Page 82: Warranty & Service

    Sound Devices cannot guarantee that a given computer, software, or operating system configura- tion can be used satisfactorily with the 702T based exclusively on the fact that it meets our minimum system requirements. Please check with your software editing application to make certain that it is compatible with the file type selected.
  • Page 84 702T rev. 2.67 - Printed in U.S.A.
