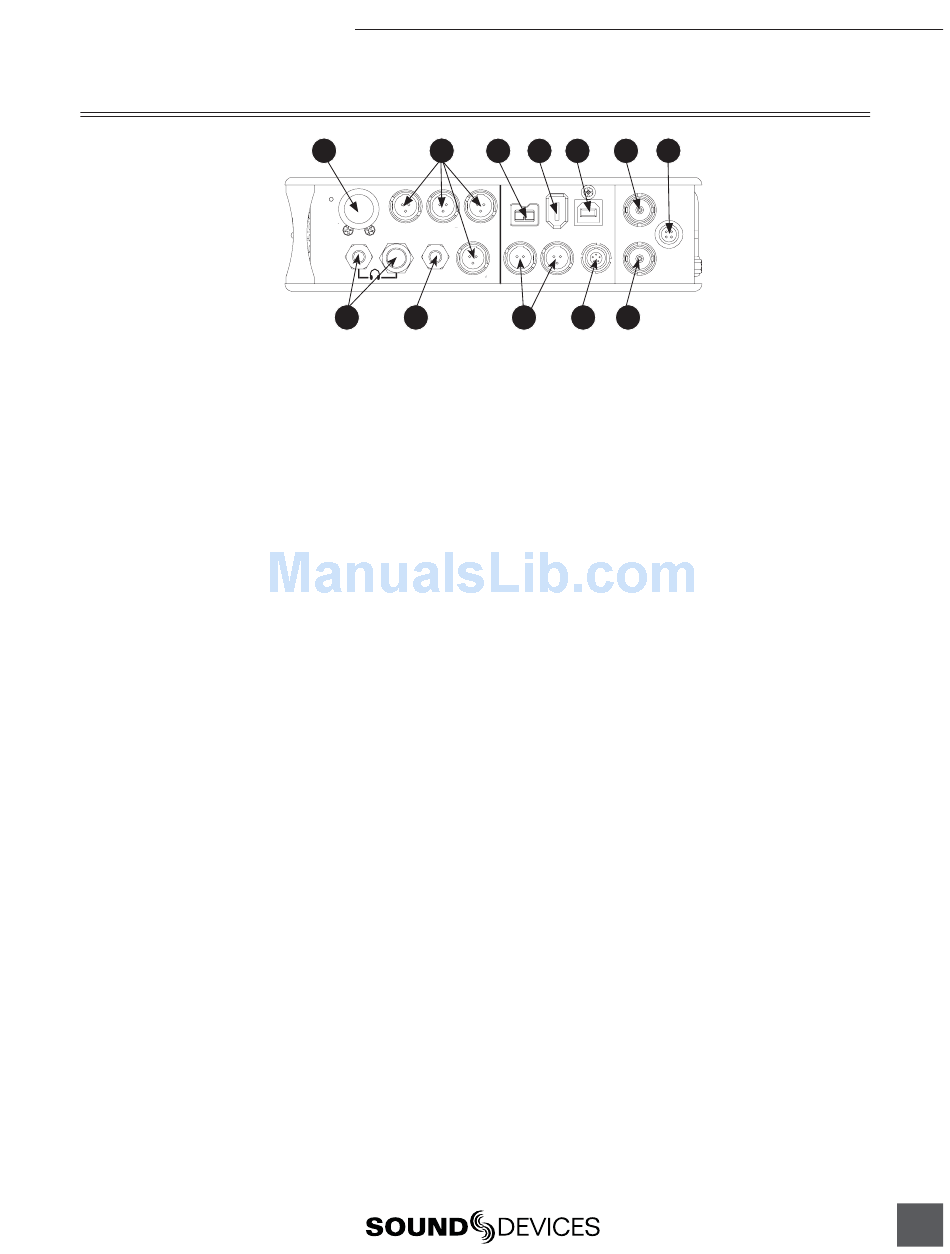

Right Panel Connectors and Controls

Multi-Function Rotary Switch
1)
When in the Setup Menu, the rotary
switch moves between menu selections;
push to enter selection or enter data.
In Record and Playback modes, selects
headphone monitor source; press action
is user selectable. Turn the knob while
holding the LCD Backlight key to adjust
the brightness of LEDs.
TA3 Analog Outputs 1-4
2)
Active-balanced, analog outputs 1-4.
Program source and attenuation lev-
els are user selectable. Pin-1 ground,
pin-2 (+), pin-3 (
to an unbalanced input, do not connect
pin-3.
FireWire 800 (IEEE-1394b) Port
3)
Connection to a computer (Mac OS,
Windows) to access the internal hard
drive and CompactFlash volumes as
mass storage devices. Also used to at-
tach external FAT32-formatted FireWire
drives to the 788T for direct recording
and copying.
FireWire 400 (IEEE-1394a) Port
4)
Connection to a computer (Mac OS,
Windows) to access the internal hard
drive and CompactFlash volumes as
mass storage devices. Also used to at-
tach external FAT32-formatted FireWire
drives to the 788T for direct recording
and copying.
USB-B Port
5)
Connection to a computer (Mac OS,
Windows) to access the internal hard
drive and CompactFlash volumes as
mass storage devices.
1 2
MENU
1 2
SELECT
ANALOG BAL LINE OUTS
5,6
UNBAL
8 9
). When connecting
–
788T/788T-SSD User Guide and Technical Information
3 4 5 6
3
FW800 FW400 USB
SYNC
BAL AES
OUT
4 1,2 3,4
TIMECODE
10 11 12
Sync Input
6)
This BNC is used to connect an exter-
nal video sync or word clock reference
signal for word clock purposes. Accepts
NTSC, PAL, and Tri-level video syncs as
well as word clock rates between 32 kHz
and 48.048 kHz.
External DC In
7)
Accepts power from 10–18 volts DC to
power and charge the Li-ion battery.
Hirose 4-pin connector is wired pin-1
negative (-), pin-4 positive (+). Pin-2 and
pin-3 are not connected. Charging char-
acteristics are set in the Setup Menu.
Headphone Output
8)
1/4-inch and 3.5 mm TRS stereo head-
phone connectors. Can drive head-
phones from 8 to 1000 ohm impedances
to very high levels. Tip = left, ring =
right, sleeve = ground.
Analog Output 5-6
9)
Unbalanced output on 3.5 mm TRS
stereo connector. Program source and at-
tenuation levels are user selectable. Tip
= left, ring = right, sleeve = ground.
AES3 Output 1-2 and 3-4
10)
Transformer-balanced AES3 digital out-
puts 1-2 and 3-4. Program source is user
selectable.
Time Code Multi-Pin
11)
Time code input and output on 5-pin
LEMO ® connector.
Word Clock Output
12)
Provides a word clock output running at
the sample rate of the 788T.
