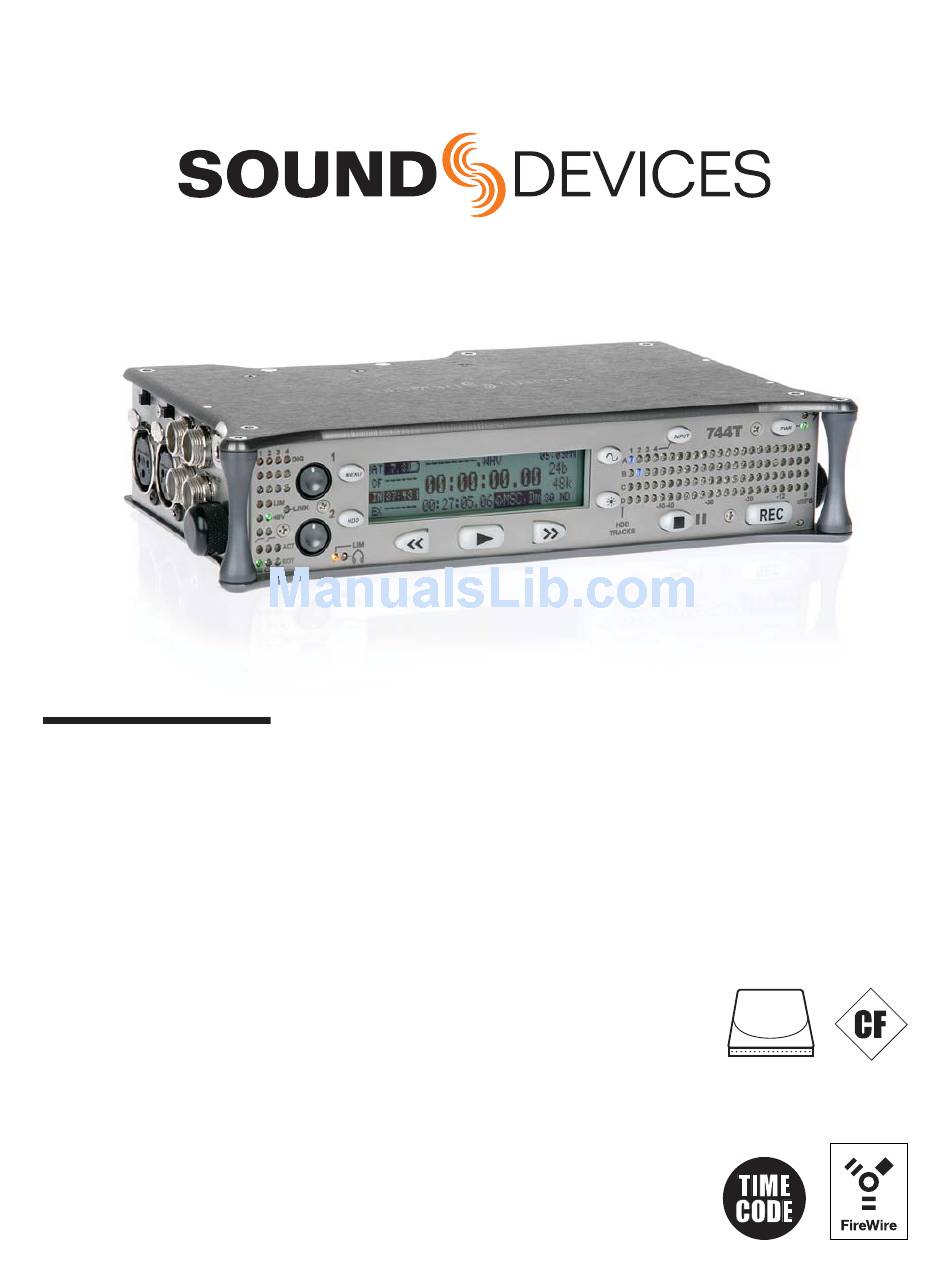

744T

High Resolution Digital Audio Recorder with Time Code

User Guide and Technical Information

ﬁ rmware rev. 2.66

SATA

2.5" HDD

Sound Devices, LLC

300 Wengel Drive • Reedsburg, WI • USA

+1 (608) 524-0625 • fax: +1 (608) 524-0655

Toll-Free: (800) 505-0625

www.sounddevices.com

support@sounddevices.com

Table of Contents

Need help?

Do you have a question about the 744T and is the answer not in the manual?

Questions and answers

Summary of Contents for Sound Devices 744T

Page 1 High Resolution Digital Audio Recorder with Time Code User Guide and Technical Information ﬁ rmware rev. 2.66 SATA 2.5" HDD Sound Devices, LLC 300 Wengel Drive • Reedsburg, WI • USA +1 (608) 524-0625 • fax: +1 (608) 524-0655 Toll-Free: (800) 505-0625 www.sounddevices.com...
Page 2 backside - front cover...
Page 3: Table Of Contents
Table of Contents Quick Start Guide ........3 .FLAC .MP2 Powering the Unit...
Page 4 LLC. SOUND DEVICES is not responsible for any use of this information. SOUND DEVICES, LLC shall not be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modiﬁ cations, repairs, or alterations to this product, or failure to strictly comply with SOUND DEVICES, LLC’s operating and installation instructions.
Page 5: Quick Start Guide
Quick Start Guide The 744T is an extremely powerful and ﬂ exible portable audio recorder. Before recording, please familiarize yourself with the product. Several settings should be veriﬁ ed or set based on individual recording needs. Powering the Unit Apply power to the unit by attaching the (included) removable, rechargeable Li-ion (lithium ion) bat- tery to the back panel battery mount.
Page 6: Routing Inputs To Tracks
Routing Inputs to Tracks Before recording, inputs must be assigned to tracks. Each of the 744T’s four inputs (1, 2, 3, 4) can be assigned to any of the four tracks (A, B, C, D). These 256 possible routing combinations are shown on the front panel with 16 blue LEDs.
Page 7: Firewire File Transfer To Computer
Files on the 744T can be treated as if they are local ﬁ les, including renaming ﬁ les, copying, deleting and playing directly from the 744T hard drive. In general, it is good practice to copy audio ﬁ les from the 744T to a computer before any processing is performed on the ﬁ les.
Page 8: Front Panel Descriptions
744T User Guide and Technical Information Front Panel Descriptions All 744T settings can be accessed and monitored through the front panel LCD and navigation keys. This allows the unit to be placed in a production bag along with ﬁ eld mixers and wireless transmit- ters and receivers.
Page 9 ﬂ ashing A-time on Power Key LCD. Fast forward rate increases the lon- Press and hold to power up the 744T. ger the key is held. In play-stop mode Press and hold to power down. (indicated by ﬂ ashing ﬁ lename on LCD) selects the next ﬁ...
Page 10: Panel Lock
Panel Lock Press and hold the backlight key then the tone key to bring up the front panel Button Lock Screen. Button lock prevents unintentional changing of settings or record status.The 744T displays any but- ton lock options enabled. select the soft buttons to...
Page 11: Lcd Display Descriptions
If a drive is not attached the indicator Alternating display between the set date shows dashed lines. Bar graph indicates and time of the 744T. This information is amount of record time remaining on written as the creation and modiﬁ cation the external FireWire volume.
Page 12 External Digital Clock Indicator descriptor indicates media selected for record monitoring, playback or ﬁ le directory display. The 744T is locked to a valid external digital or word clock source for record- ing when the L is in the display.
Page 13: Left Panel Connectors And Controls
Headphone Volume Mic-Line-AES3 Input Switch Adjusts the headphone volume. NOTE: Selects the input level and mode of the the 744T is capable of producing ear- associated XLR input connector. damaging levels in headphones. TA3 Channel 3&4 Line Inputs Tape Output Active-balanced line-level input connec- Unbalanced tape (–10 dBV nominal)
Page 14: Right Panel Connectors And Controls
Unbalanced digital output, two-channel, Also used to attach external FAT32-for- for the Master Output Bus. Signal source matted FireWire drives to the 744T for is menu-selected and is identical to the direct recording and copying. Analog Master Output Bus signal.
Page 15: Back Panel Descriptions
Back Panel Descriptions Security Slot Battery Mount Compatible with the Kensington ® Secu- Accepts Sony ® InfoLithium L- or M- rity Slot speciﬁ cation. Useful for secur- Series batteries. Also accepts batteries ing the recorder to a ﬁ xed object with a conforming to this mount.
Page 16: Input Setup And Control
Input Setup and Control The 744T has four inputs and four record tracks. Inputs can be analog or digital sources. Analog inputs 1 and 2 use XLR connectors; inputs 3 and 4 use TA3 connections. Digital inputs can be either AES3 (balanced at the XLR) or AES3id (on BNC) inputs.
Page 17 Shortcut: To toggle phantom power without entering the menus, press and hold the tone key then press the menu key for channel 1. Channel 2 phantom can be toggled by pressing the tone key then pressing the HDD key. If the inputs are in line level mode, phantom power will not activate from the shortcut keys and must be activated from the menus.
Page 18: Input Linking (Stereo Or Ms Decoding)
3 and 4 are adjusted only in the setup menu. Digital Inputs – AES3 The 744T accepts AES3 (AES/EBU) balanced digital at the XLR connectors. Digital inputs are in pairs—AES3 signals on XLR-1 appear at inputs 1 and 2, AES3 signals input to XLR-2 appear at in- puts 3 and 4.
Page 19: Digital Inputs - Aes3Id (S/Pdif)
744T. The 744T clocks itself to the ﬁ rst digital signal presented to it. If the 744T detects a digital signal on the BNC inputs and locks to that signal, a digital signal applied to the XLR input will be ignored until the ﬁ...
Page 20: Input-To-Track Routing
744T User Guide and Technical Information Input-to-Track Routing The 744T uses a ﬂ exible routing scheme to assign inputs and tracks for recording. The input matrix allows any input to be routed to any recording track. Multiple inputs can be routed to a single track to create mono-mixed recordings.
Page 21: Selective Input Muting
Sampling Rate and Bit Depth When recording the 744T generates uncompressed PCM audio WAV ﬁ les in the Broadcast Wave File format at the user-selected sampling rate and bit depth. The 744T LCD calculates available recording time based on the sampling rate, bit depth, number of tracks set for recording and the selected stor- age media available capacity.
Page 22: Bit Depths
16 bit, meaning the least signiﬁ cant 8 bits are discarded. Once a ﬁ le is recorded its sampling rate and bit depth can not be changed in the recorder. The 744T does not perform sample rate conversion or bit depth changes. File conversion must be done in another environment, such as an audio workstation.
Page 23: Word Clock
If the 744T is slaved to external word clock, be certain that the source is stable. Loss of the word clock signal during recording can cause the 744T to revert back to its internally set sampling frequency.
Page 24: Outputs - Analog And Digital
Serious damage to the recorder could result. Outputs – Analog and Digital The 744T has two two-channel output buses , the Master Output Bus and Output Bus 2. Each of these buses is assigned audio sources independently, enabling the 744T to feed multiple outputs with unique program.
Page 25: Master Output Bus
Available Output Sources Description Input 1,2 Multiple inputs are summed with these selections. Input 3,4 Input 1,3 Input 2,4 Input 1,2,3 Input 2,3,4 Input 1,2,3,4 Track A,B Multiple track assignments are summed with these selections. Track C,D Track A,C Track B,D Track A,B,C Track B,C,D Track A,B,C,D...
Page 26: Headphone Output
744T User Guide and Technical Information Headphone Output The 744T headphone output is a ﬂ exible tool for monitoring audio in the ﬁ eld. The 744T allows the user to monitor inputs, tracks, and post-record tracks in a number of combinations. MS stereo and B-format surround decoding are also available in headphones.
Page 27 You can exit the selection process by pressing the stop or cancel (backlight) key at any time. If you press (done) in the ﬁ rst headphone slot, the 744T will select a single option (Tracks A, B) for head-...
Page 28: Ms Stereo Monitoring
When recording four-channel B-format audio, the 744T headphone monitor can decode the B-format signal into L/R stereo. The 744T constructs a stereo signal using the W, X, and Y signals of the B- format. The Z-axis signal is not used. Similar to the 744T’s MS stereo monitoring, the stereo width is ﬁ...
Page 29: Rotary Switch Behavior
Headphone Warning Tones The 744T can generate an audible beep, or warning “bell”, in the headphones when an error has occurred. The speciﬁ c error will be reported on the LCD. The output level of the warning bell can be selected from off or –20 to –12 dBFS in the setup menu.
Page 30: Metering And Display
744T User Guide and Technical Information Metering and Display The 744T features a 76 LED (4 x 19) output meter. The DSP-controlled output meter provides a selec- tion of ballistics and lighting intensities. In addition, separate peak indicators on input channels show clipping activity.
Page 31: Peak Leds
Input Peak The 744T has a peak LED associated with each input. These LEDs illuminate when input signal reaches –3 dBFS. There is no user-adjustment to the Input Peak LEDs. These LED’s also function as indicators of input mute activity (see Input-to-Track Routing).
Page 32: Lcd Contrast & Backlight, Led Brightness
(Setup Menu selected) the LEDs are toggled on and off with the LCD backlight key. LCD Gain Display By default, the 744T displays the set Bit Depth and Sampling Rate in the right-hand side of the Main LCD Display. The gain level for inputs 1 and 2 temporarily override the Bit Depth and Sampling Rate display while the input gain pots are in use.
Page 33: Time Code
All ﬁ les generated by the 744T have time code numbers begin on the 0 frame (or 02 in DF modes). If necessary, pre-roll is dynamically applied to accomplish this. This simpliﬁ es synchronization in post-pro- duction.
Page 34: F Sampling Rate Modes
47.952kF mode, the time code rate is restricted to 29.97ND, while the ﬁ le is identiﬁ ed as 30ND. 47.952F mode is useful in applications where the 744T is recording in high-def environments with cameras at 23.97 and post production is using a straight 24 frame session.
Page 35: Time Code Hold Off
The internal time code generator follows an external time code signal appearing at the time code input. In all of the external time code modes the time code value set on the 744T appears as the re- corded ﬁ le’s time code rate value.
Page 36: Jam Menu
LCD screen; the 744T internal generator, user bits, and frame rate are shown at the bottom of the screen. To jam the 744T from an external value, press soft key next to the jam button or the Rotary Switch button. The screen will display JAMMING. Once the v.
Page 37: User Bits
The initial screen of this menu shows the currently set value as well as the current time code setting of the 744T. Press the Rotary Switch or the enter key (tone key) to enter into edit mode. The user can set the time code numbers in pairs (hours, minutes, seconds and frames).
Page 38: Ntsc Standard Def Video Production
2 frames = 108 frames per hour. To sync the 744T to a video camera, ﬁ rst determine if the camera is in drop frame or non-drop frame mode. If you, the DP or the producer are unsure about what setting to use, check with post-produc- tion, if possible.
Page 39: Pre-Record Buffer
When removing the CompactFlash from the 744T, always observe the amber CF activity LED. If it is lit, wait until it goes out before removing the CF. If you remove the CF while the LED is lit, the ﬁ le will be corrupted and there is a possibility of FAT corruption as well.
Page 40: Record Timer
The 744T has high-resolution playback circuitry and is appropriate for any reference audio applica- tion. Any ﬁ le recorded by the 744T can be played back, including MP2, MP3, FLAC, and WAV ﬁ les. In addition, ﬁ les copied to the storage medium from a computer can be played back. This is useful when using the 744T as a high-resolution playback device.
Page 41: Autoplay
AutoPlay The 744T can be set to play back all valid audio ﬁ les in a directory. Files will play back in their order in the directory. Autoplay can be set with the following options: • Disabled – auto playback is off •...
Page 42: Flac
FLAC, in particular, offers data compression rates that range anywhere between 30% and 60%, depending on the audio program. Sound Devices Wave Agent Classic (www. waveagent.com) is a free Windows based software used to extract FLAC to WAV as well as combin- ing monophonic ﬁ...
Page 43: Recording Time Calculation
The 744T includes iXML (revision 1.5) data in addition to the broadcast wave extension data. For iXML-aware software applications this data is available. For applications that don’t recognize iXML, this information is ignored.
Page 44: Uncompressed Recording Time In Track-Hours
165.4 82.8 The chart above shows recording time available with the 744T. Time is expressed in hours per track (track-hours) at the speciﬁ ed data rate supported by the 744T. If recording two tracks, divide the track hours ﬁ gure by two. Similarly for four-track recording, divide track-hours by four. Note that the 744T supports additional sampling rate / bit depth combinations, however, only the most com- mon are included below.
Page 45: Mp3 Compressed Record Time In Hours
1456.3 The chart above shows recording time available with the 744T when recording to an MP3 ﬁ le. Time is expressed in hours at the speciﬁ ed MP3 supported by the 744T. Note that all recordings are two- channel recordings.
Page 46: Take Numbers
“-” or “T”. Take numbers can be overridden and a new take number can be set in the setup menu. If the 744T detects a ﬁ le with a duplicate name in the destination folder, a letter sufﬁ...
Page 47: Mono Track Name Designators
Duplicate File Names When the 744T detects that a duplicate ﬁ le name is going to be generated in any speciﬁ c folder, the 744T changes the ﬁ le name by adding of a letter sufﬁ x before the extension. For instance, if take numbers are reset but ﬁ...
Page 48: File Management
File Management The 744T, like a computer, saves audio recordings to a ﬁ le system containing ﬁ les and folders. The 744T formats its internal hard drive, CompactFlash medium, and attached external drives as single drives named “744T INDD”, “744T CF”, and “744T EXTHDD,” respectively. All ﬁ les generated by the 744T can be saved to the Root Folder, a Daily Folder, or a Scene Folder.
Page 49: File Viewer Navigation
HDD key. By default the folder where the last recorded ﬁ le or played ﬁ le is located with be the folder ﬁ rst opened. The 744T knows this ﬁ le name by reading a .txt ﬁ le written to each time the unit records or plays audio.
Page 50: File Time And Date
FAT32 has a maximum individual ﬁ le size limitation of 4 GB. While it is possible to have thousands of ﬁ les on the 744T storage volume(s), the largest any single ﬁ le may be is 4 GB. The 744T automati- cally splits an audio ﬁ...
Page 51: Setting/Clearing Flag Bits
Error Conditions: If a ﬁ le is to large for the destination storage medium, the 744T will prompt to skip it or cancel copy- ing. If an error occurs during ﬁ le copying, the 744T will prompt to cancel the transfer. When the destination storage medium is full, the 744T will report the error and end the transfer.
Page 52: False Take Control
744T User Guide and Technical Information “trash” folder to temporarily hold ﬁ les which have been deleted. To send a ﬁ le to the trash, perform the following: Press the HDD button to enter the File Viewer. Navigate to the ﬁ le to be deleted.
Page 53: Take Number Incrementing
Take Status Takes recorded by the 744T can be marked as Circled or as No Good. Take Status is used to mark the quality of the take so that post can quickly identify which takes to use. The Take Status of the last take recorded can be quickly changed in the Take Status Menu.
Page 54: Storage Medium - Internal Hard Drive
Press the soft Circle (Menu) key to mark the take as Circled or press the soft No Good (HDD) key to mark the take as No Good. The check mark appears in the selected box and the 744T automatically returns to the Main Display.
Page 55: Drive Type
Formatting the drive prevents fragmentation and reduces the likelihood of directory cor- ruption. Be certain that all ﬁ les on the 744T drive have been backed up to another media before formatting. Once formatted, all data on the drive will be erased. Dynamic lists such as track names, scene names, folder options, etc...
Page 56: Drive Failure
The mechanical construction of the 744T is designed to minimize the transmission of shock to the hard drive. The drive is isolated from the chassis using special shock-reducing closed-cell foam. This material increases the amount of shock the hard drive can withstand.
Page 57: Storage Medium - Removable Compactflash
CompactFlash (CF) is a practical, portable storage medium for audio recording. Its speed, capacity, and price continue to evolve to the beneﬁ t of portable recorders. The 744T can write to and read from CF cards as either its sole storage medium or simultaneously with the internal hard drive.
Page 58: Qualiﬁ Ed Cf Cards
FAT32 volumes. Upon connection to an unformatted (or non-FAT32 formatted) external drive, the 744T will prompt the user to format the drive. If the drive is already formatted as a FAT32 volume the drive will be ready to be selected as a storage medium. The front panel drive LED will illuminate to show which drives are available for recording.
Page 59: Firewire Bus Powering
After recording to an external drive has stopped, it may take several seconds for the 744T to ﬁ nish “housekeeping” on drive. This is especially true when recording to DVD-RAM disks, which generally have slower throughput than hard drives. When preparing to disconnect a FireWire drive, always observe the amber activity LED labeled EXT.
Page 60: File Transfer Using Firewire
The 744T’s FireWire (IEEE-1394) port makes transfering of recorded ﬁ les to a computer quick and easy. When connected to a computer, the internal hard drive and CompactFlash card of the 744T will mount to a Mac OS X or Windows computer as a local, removable mass storage volume. Using Mac Finder, Windows Explorer, or any other ﬁ...
Page 61: Powering
To disconnect the 744T from FireWire: Make certain that any software applications that reference the 744T drive are closed and that all ﬁ le copy functions to and from the 744T have completed. In Mac OS X highlight the drive icon on the desktop and select -e to eject the volume.
Page 62: Time Code Clock Battery
DC source the power LED and battery voltage display ﬂ ashes, to alert the user. When the external DC reaches 9 volts, the 744T will automatically switch over to the removable battery. If no battery is installed the unit will shut down.
Page 63: Power-Up Messages
The best determination of your run time is to experiment with a given record- ing setup. The 744T power consumption varies over a range between 4 W to 20 W (12 volts), depending on ac- tive functions. The following functions have the most signiﬁ cant affect on power consumption: Inputs Active analog inputs increase power consumption.
Page 64: Firmware Upgrades
ﬁ rmware ﬁ le is present on either the internal hard drive or CF the recorder will prompt if the path is the proper ﬁ le to use. Press the Rotary Switch or the tone key to say yes. The 744T will begin ﬁ rmware upgrade and validation.
Page 65: Cl-1 Remote Control And Keyboard Interface
PS/2 compliant computer keyboards and enable external devices to control the 744T. When us- ing the CL-1, front panel controls and menu selections on the 744T can be mapped to keyboard short- cuts, allowing for full keyboard control of the recorder. Additionally the CL-1 has contact closures for programming remote inputs or outputs.
Page 66 Goes to the end of the string being edited Assignable Shortcuts Keyboard shortcuts can be programmed to control nearly every function on the 744T. Shortcuts can select and change menu items with a simple key strokes. Combinations of computer keyboard func- tion keys, along with Control-, Alt-, and Shift- can also be programmed.
Page 67 Enter the External Keyboard Assignment Setup Menu selection. Shortcut number. Up to 50 shortcuts can be programmed Select an unassigned shortcut number for programming. If a duplicate key sequence is selected the low- est shortcut number action takes place. The example below shows the F1 key being reprogrammed. After selecting a key sequence select the desired Setup Menu item or action.
Page 68: Logic Inputs
The 744T has four built-in presets and one user preset per media. Built-In Presets The 744T is shipped from the factory with the factory preset applied. Its settings are listed below. Three additional presets, ﬁ lm, reporter, and music presets allow for quick setup of typical param- eters for the deﬁ...
Page 69 Factory Film Reporter Music 744T Presets Preset Preset Preset Preset Track A: Track A Track A: Track A Track A: Track A Track A: Track A Track B: Track B Track B: Track B Track B: Track B Track B: Track B...
Page 70 744T User Guide and Technical Information Factory Film Reporter Music 744T Presets Preset Preset Preset Preset Output2 Left: Source Track C Track C Track C Track C Output2 Right: Source Track D Track D Track D Track D Output2 L,R: Attenuation...
Page 71: User Setup Data File
By entering QUICK SETUP from the Setup Menu, selecting SAVE USER TO INHDD/CF the user can save or restore parameters to and from this data ﬁ le. This binary ﬁ le is named 744T.SUP and is saved in the SOUNDDEV directory on the medium selected in the setup menu.
Page 72: Setup Options
• Either scene or daily - takes reset on either change Rec: Pre-Roll Time Selects the amount of pre-roll time the 744T will 0–10 sec. @ 48 kHz add to the beginning of each file. 0–5 sec. @ 88.2–96.096 kHz 0–2 sec.
Page 73 File: Max Size Selects the file size where the 744T will close, • 4 GB CF (3.6 GB) then start a new file. The 744T will not record a file • 2 GB CF (1.8 GB) larger than the selected size.
Page 74 Time Code: Hold Off Sets the duration that a valid time code signal has 0.0 to 8.0 seconds adjustable in increments of .1 to be recognized by the 744T before generating a seconds new take while in Ext TC-Auto Record and Ext TC/ cont-Auto Record modes.
Page 75 Setup Name Setup Description Setup Options Time Code: User Bits Sets the time code user bits generated by the 744T. • Not Used – user bits are not set or output mm – month • mm:dd:yy.tt dd – day of week •...
Page 76 Selects the date syntax of the recorder. • mm/dd/yy • dd/mm/yy Time/Date: Set Sets the internal date and time of the 744T. <time, date> Resetting the time re-jams the internal time code Clock is not set until <done> is selected generator to the set time.
Page 77 Caution, while various PC utilities are able to re- • Empty both cover files from a re-formatted drive, once format- ted old audio data is not accessible by the 744T. INHDD: Empty Trash Allows user to delete files previously sent to the trash as well as false takes.
Page 78: Setup Menu Shortcuts
• German • French CL-1: Re-program The CL-1 has its own firmware which is sup- plied from the 744T. This utility updates the CL-1 firmware. CL-1: Logic Out Assign Each logic output pin can be assigned to go high • Undefined when the unit is in the selected mode.
Page 79: Front Panel Button Shortcuts
Jam Menu Menu and HDD Enters the time code jam menu. (702T &744T Only) Button Lock Backlight and Tone Press backlight then tone to lock all front panel buttons except for Re- cord, Stop and Play.
Page 80: Connector Pin Assignments
744T User Guide and Technical Information Connector Pin Assignments Each connector type, electrical characteristics, and pin assignment is shown below. Connector Pin Assignments Notes 1 – ground 7.5k ohm input impedance, mic level (Analog Inputs) 2 – signal (+) 20k ohm input impedance, line level 3 –...
Page 81: Speciﬁ Cations
Speciﬁ cations System Sampling Frequency internal: 32, 44.1, 47.952, 48, 48.048, 88.2, 96, 96.096, 176.4, 192 kHz external clocking: 32–192 kHz via word clock input Internal Data Path and 32 bit, 192 dB dynamic range Processing A/D, D/A Converters 24 bit, 192 kHz sampling rate maximum. A/D converters on socketed, field-upgradeable daughter board A/D Dynamic Range 114 dB, A-weighted bandwidth...
Page 82 744T User Guide and Technical Information Output Analog Line Output Clipping +20 dBu minimum, 10k ohm load Level Attenuation & Resolution 0–40 dB, 1 dB increments Output Topology Line: fully electronically-balanced, RF, ESD, short, and overload protected; pin-2 driven hot, pin-3 driven cold;...
Page 83: Accessories
ﬁ les for problem-free passage through complex production workﬂ ows. XL-1B TA3F to TA3F cable, connects the direct outputs of a Sound Devices 442 mixer to the 744T’s analog inputs 3 and 4, also used to connect analog outputs to third-party devices with TA3M inputs, 12-inch.
Page 84 XLR-F inputs, 25-inch; package of two. XLR-F to TA3F cable, used to connect microphones, mixers, and other XL-2F devices with XLR-M outputs to the 744T analog inputs 3 and 4, 25-inch; package of two. XL-4 Bag of four (4) TA3-F-type connectors.
Page 85: Ce Declaration Of Conformity
According to ISO/IEC Guide 22 Sound Devices, LLC 300 Wengel Drive Reedsburg, WI 53959 USA declares that the product, 744T Professional Digital Audio Recorder is in conformity with and passes: 89/336/EEC EMC Directive EN55103-1, 1997 EMC-product family standard for audio, video, audio- visual and entertainment lighting control apparatus for professional use.
Page 86: Software License
Sound Devices, LLC product, even if Sound Devices, LLC has been advised of the possibility of such damages.
Page 87: Warranty And Technical Support
Sound Devices cannot guarantee that a given computer, software, or operating system conﬁ gura- tion can be used satisfactorily with the 744T based exclusively on the fact that it meets our minimum system requirements. Please check with your software editing application to make certain that it is compatible with the ﬁ le...
Page 88 744T rev. 2.65 - Printed in U.S.A.
