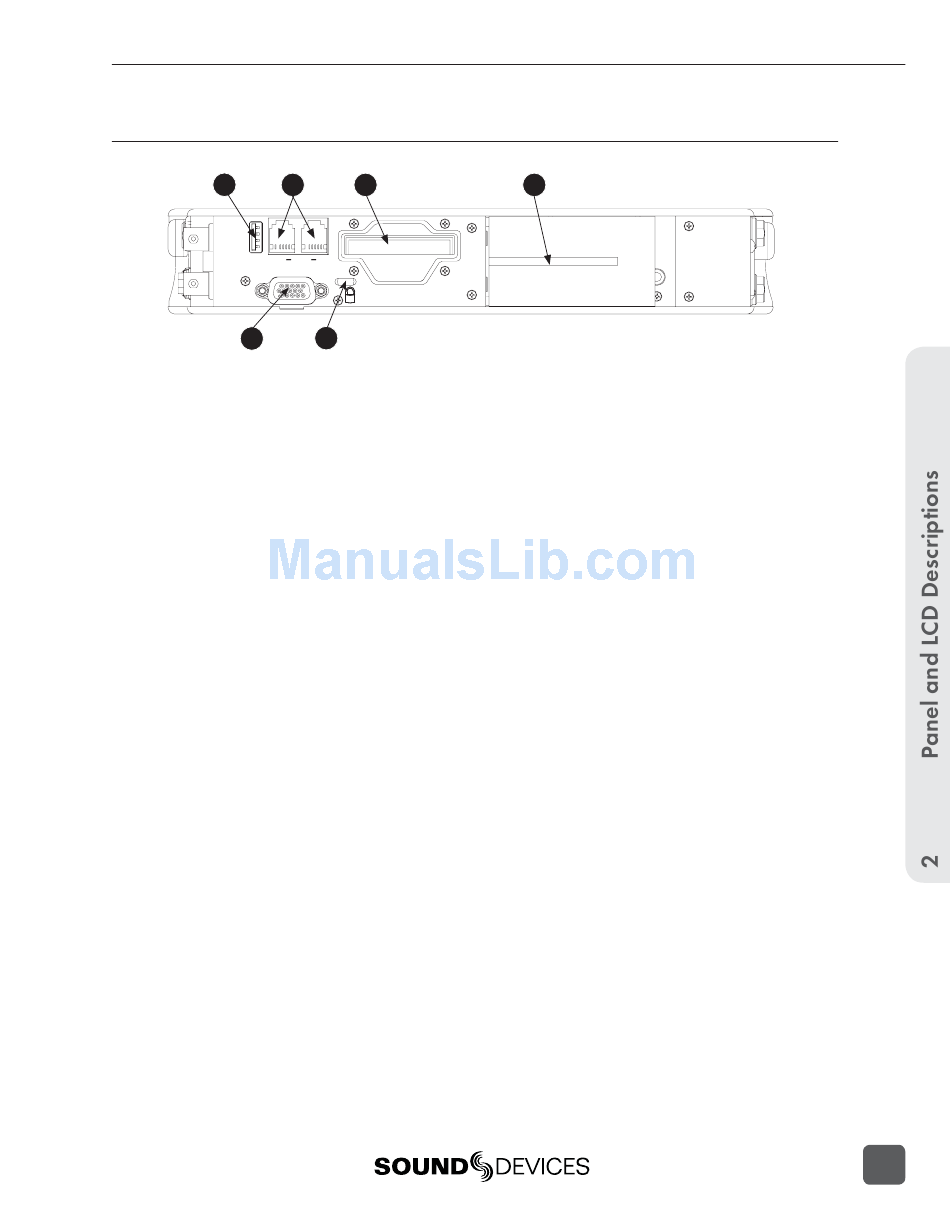

Rear Panel Descriptions

1 2
KEYBD OUT
AES I/O, GPIO, PWR
5
USB Keyboard Input
1)
USB A Female Connector for USB key-
board and CL-8 Controller
Control for more details regarding Keyboard
and CL-8 setup and functionality.
C. Link In/Out
2)
RS-232 protocol interface on 6-pin modu-
lar ("RJ-12") connector for linking mul-
tiple 7-Series recorders together. Word
clock, machine transport, and time code
are carried on the C. Link connector.
Multi Unit Linking Via C. Link.
for connection to CL-WIFI Wireless,
Interface, CL-1 Keyboard and Remote
Control Interface, or CL-2 Remote Fader.
See Remote Control for more details.
C. Link In is disabled when Setup Menu
option FireWire/USB: Connection is set to
connect to Wave Agent.
CompactFlash Slot
3)
Accepts CompactFlash cards, label-side
up. Compatible with Type I, Type II, and
MicroDrives. High-speed UDMA cards
are recommended for higher track count
recording.
Battery Mount
4)
Accepts Sony® InfoLithium L-Series bat-
teries. Also accepts batteries conforming
to this mount. Numerous capacities, from
1500 to 7000 mAh are available.
788T/788T-SSD User Guide and Technical Information
3
C.LINK IN
COMPACT FLASH
6
See Remote
See
Also used
The
4
Multi-Function DE-15 Connector
5)
Mates with Sound Devices XL-88 Multi-
Pin Breakout Cable. The DE-15 connector
acts as AES3 Inputs 1-8, AES3 Outputs
5-6, and Logic In and Out. Analog and
digital inputs can be used simultaneously.
See Connector Pin Assignments.
Sample Rate Converters are enabled
on each AES input when Setup Menu
REC: SYNC SOURCE is set to Internal.
Sample Rate Converters.
AES inputs support AES42 Mode 1 opera-
tion, supplies +10 V of digital phantom
power. See AES42 Digital Microphones.
Security Slot
6)
Compatible with the Kensington® Secu-
rity Slot specifi cation. Used to secure the
recorder to a fi xed object with a compat-
ible computer lock.
See
