18. From the Take List, press the HDD key again to enter the Drive Directory.

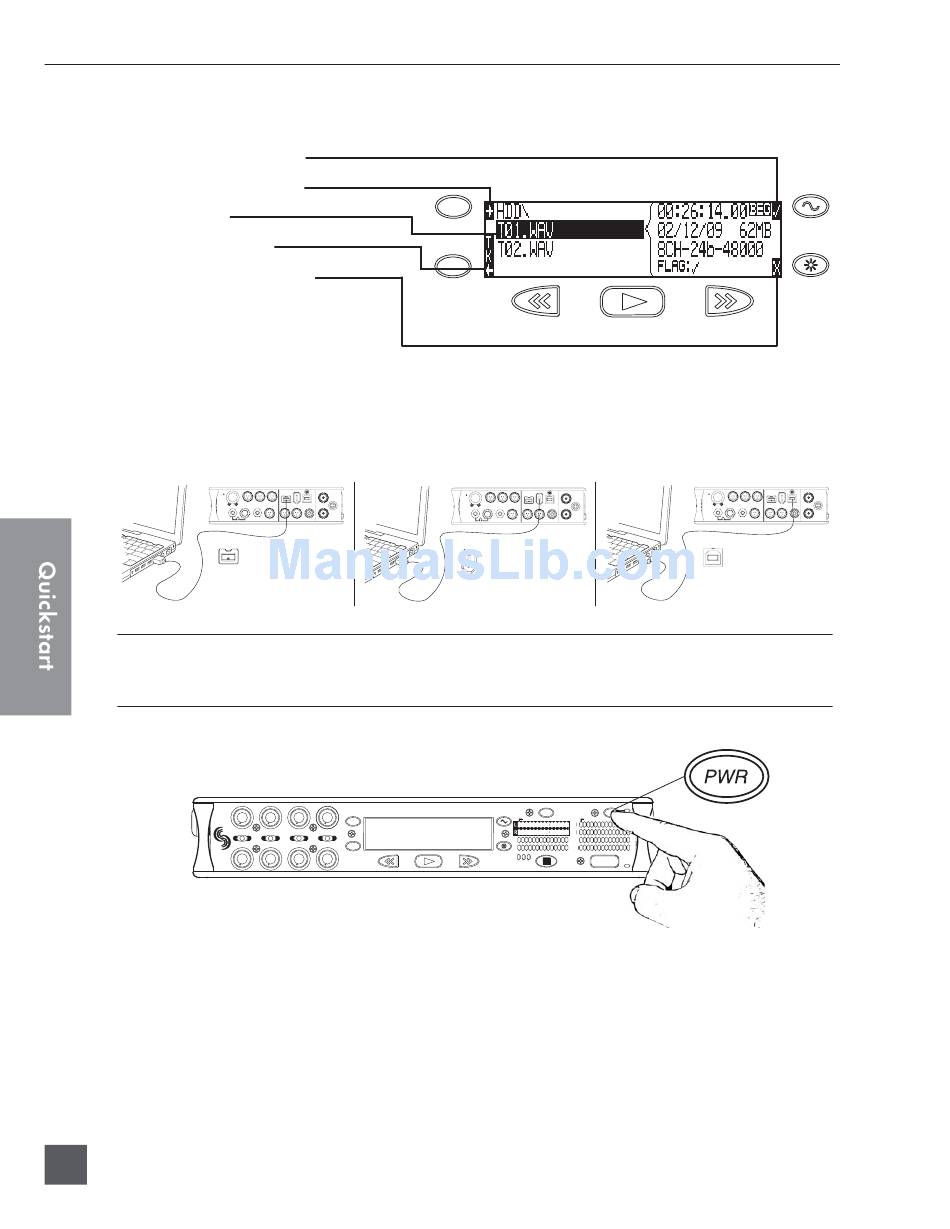

Drive Directory Basics:
File Information Toggle
Jump to Root Directory
Selected File
Return to Take List
Exits the Drive Directory
Drive Formatting and other media-specifi c operations are accessed in the
19. After recording, transfer fi les from the 788T to a computer using either FireWire 400, FireWire 800, or
USB.
MENU
SELECT
FW800
To avoid any possible directory corruption on the 788T, do not interrupt the connection process and always prop-
erly dismount the drives from the operating system. On Mac OS platforms, drag the drive icons to the trash. On
Windows platforms, use the "Disconnect External Media" icon in the system tray.
20. Press and hold the PWR key for one second to shut down the recorder.
8
v. 1.71 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
Drive Options Menu located at the root directory.
