To assign tracks-to-media perform the following steps.
1. Enter the Track Setup Window by pressing the INPUT
2. Press the soft MEDIA (Fast Forward)
3. Use the Multi-Function Rotary Switch to navigate through the track-to-media routing. If media is dis-
played the corresponding track will be written to that media, giving that the media has been selected in

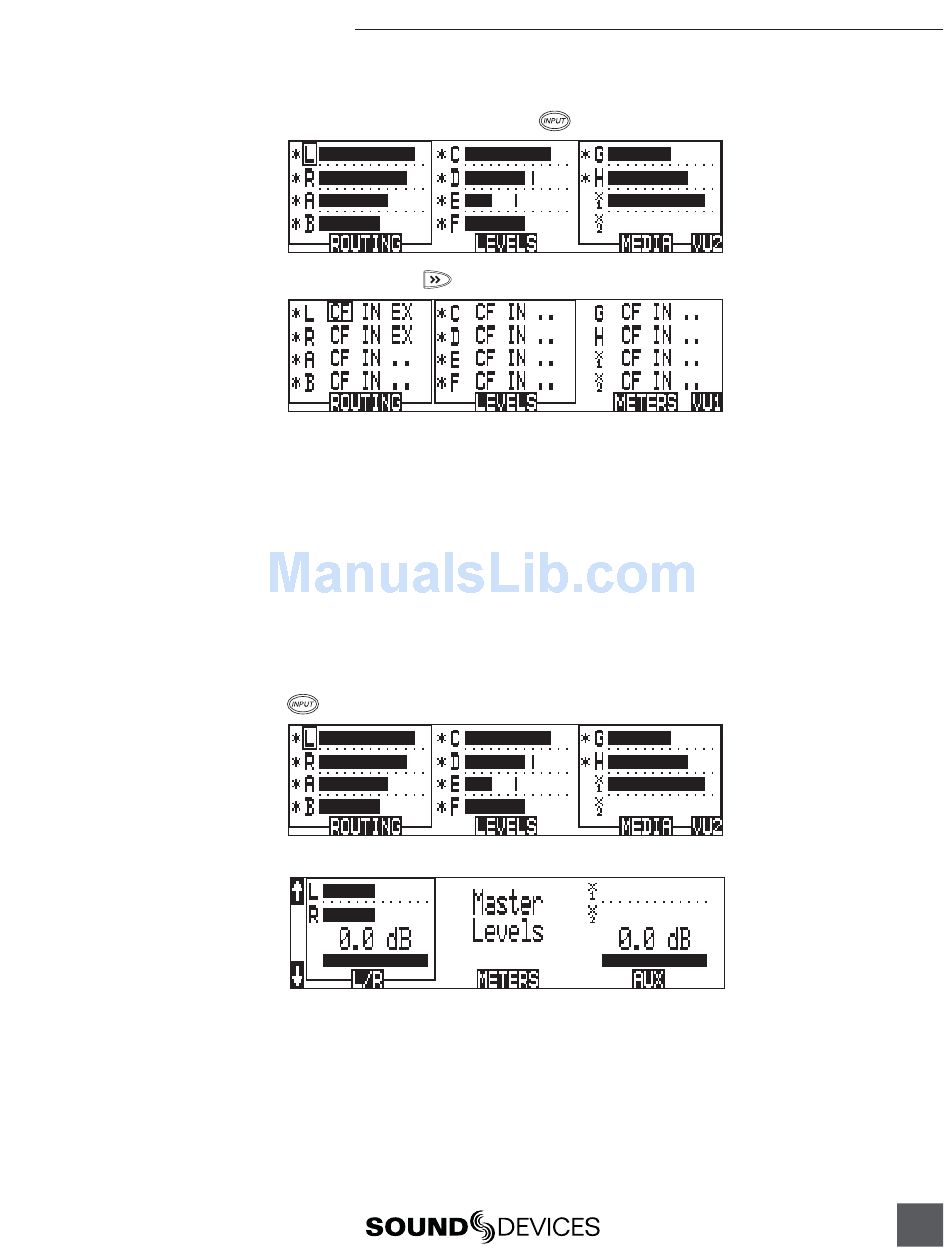

the Setup Menu and the track is armed. In the illustration above, the external hard drive will only write
Tracks L and R.
4. Press in on the Multi-Function Rotary Switch to toggle the routing status of a media.

Master Gain Levels

The master gain levels are controlled independently for the Left and Right tracks and for the X1 and
X2 Aux Tracks. Levels can be attenuated from 0 to -60 dB in .1 dB increments for each pair. Attenua-
tion of the master gain levels is applied to the Tracks prior to recording. This allows the Sound Mixer
to adjust the overall mixed signal of all summed inputs routed to these tracks. Follow these steps to
adjust the master gain level.
1. Press the INPUT
2. Press the soft Levels (Play) key to access the Master Gain Levels View.
3. Press the soft L/R (Rewind) or the soft AUX (Fast Forward) key to select the desired pair of tracks to be
attenuated.
4. Turn the Multi Function Rotary Switch to attenuate the master gain level in .1 dB increments. Press in
on the Multi Function Rotary Switch to immediately return to unity gain (0 dB).
5. Press the soft Tracks (Play) key to return to the Track Setup Window.
788T/788T-SSD User Guide and Technical Information
key to enter the Track-to-Media View.
key to access the Track Setup Window.
key.
37
