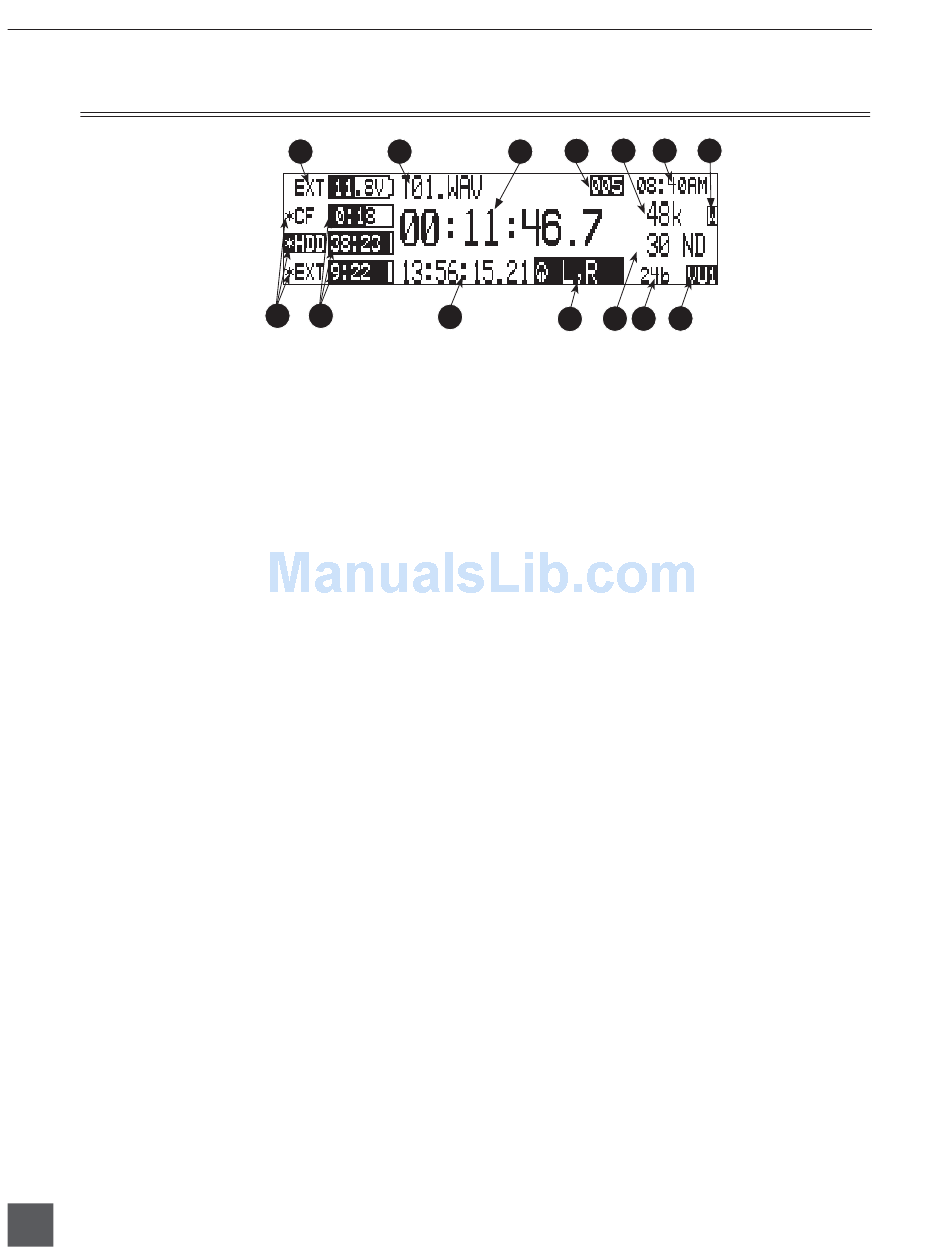

LCD Display Descriptions cont.
Time Code Display
10)
In Stop and Record modes, displays
the time code generated or received by
the 788T. In Playback mode, displays
the the time code information of the fi le
currently selected for playback (if avail-
able). If non-time code fi les are playing,
the display shows dashes. The time code
display can be exchanged with the A-
time display in the Setup Menu.
Headphone Source Display
11)
Indicates the source for headphone out-
put. Sources and selection order are user
selectable in the Setup Menu.
16
v. 1.71 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
1 2
8 9
10
4 5 6
3
14
11 12 13
Time Code Frame Rate
12)
Displays the set time code frame rate. If
a fi le has time code information embed-
ded, the playback frame rate is indi-
cated. If external time code is connected
and the external rate differs from the
rate set internally, the display will fl ash.
Bit Depth Indicator
13)
Shows the set record bit depth. In play-
back, shows the fi le bit depth.
Meter Toggle
14)
Press the soft VU (LCD Backlight) key
to toggle between VU1 and VU2 views.
VU1 displays Tracks C, D, E, F on the
second column of Front Panel Level
Meter LEDs, and VU2 displays Tracks G,
H, X1, X2.
7
