744T User Guide and Technical Information
Link LED
22)
Indicates that channels 1 and 2 are
linked as a stereo pair. In link mode in-
put 1 potentiometer controls gain, input
2 potentiometer controls left-to-right
balance. Inputs can be linked as either a
stereo L/R pair or as a a Mid-Side (MS)
pair.
Media Ready LEDs
23)
Indicates storage media is present and
available to record; IN (internal hard
drive), CF (CompactFlash), EX (exter-
nal FireWire device). Flashing indicates
media problem.
Media Activity LEDs
24)
Indicates storage media read/write
activity. IN (internal hard drive), CF
(CompactFlash), EX (external FireWire
device).
High-Pass Filter LEDs
25)
Indicates that the high-pass (low-cut)
fi lter is active for the input. High-pass
only operates when the input is set to
microphone level.

Panel Lock

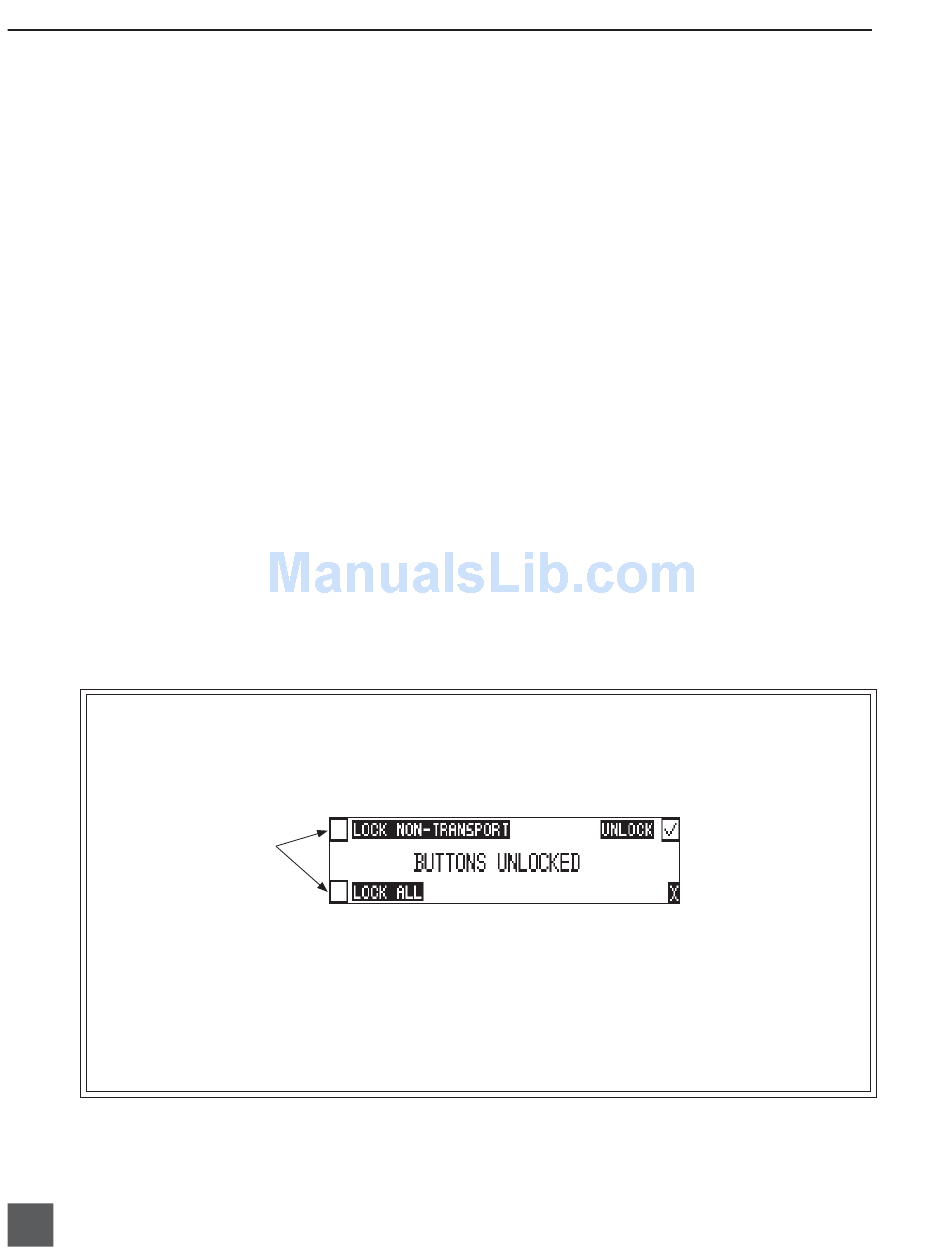

Press and hold the backlight key then the tone key to bring up the front panel Button Lock Screen.
Button lock prevents unintentional changing of settings or record status.The 744T displays any but-
ton lock options enabled.
select the soft buttons to
activate the appropriate
button lock mode
There are three modes:
• Unlocked – all buttons are accessible and operate normally.
• Non-Transport Lock – All front panel controls are locked except the Record, Stop, Play, Re-
wind and Fast Forward.
• Lock All – All front panel keys are locked except the Record key. The Record key is kept ac-
tive so the user can initiate recording after entering this mode and enter cue markers. To stop
recording in this mode, you must disengage the panel lock and hit the stop key.
8
v. 2.66 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
Phantom Power LEDs
26)
Indicates that phantom power (48 volts)
is active for the individual input. Phan-
tom can be applied to microphone or
line-level signals (menu-selected).
Microphone Input Limiter LEDs
27)
Illuminates orange when limiting is oc-
curring on the microphone input. If con-
stantly lit, the microphone input is being
hit with too "hot" of a signal. Reduce the
input sensitivity until limiting occurs
infrequently.
Input Signal Presence LEDs
28)
Indicates presence of analog or digital
signal and its relative level on each of
the four inputs.
Input Peak (Overload) LED
29)
Indicates analog signal is approaching
clipping (–3 dBFS) on each of the four
inputs. Also used to indicate that an
input is muted.
