Speaker Setup Tab

After completing the Main tab, the next tab is Speaker Setup, which is the first tab to
allow system configuration that is not available from the front panel. The Speaker Setup
tab provides access to four second-level tabs
Testing & Output

Speaker Configuration Tab

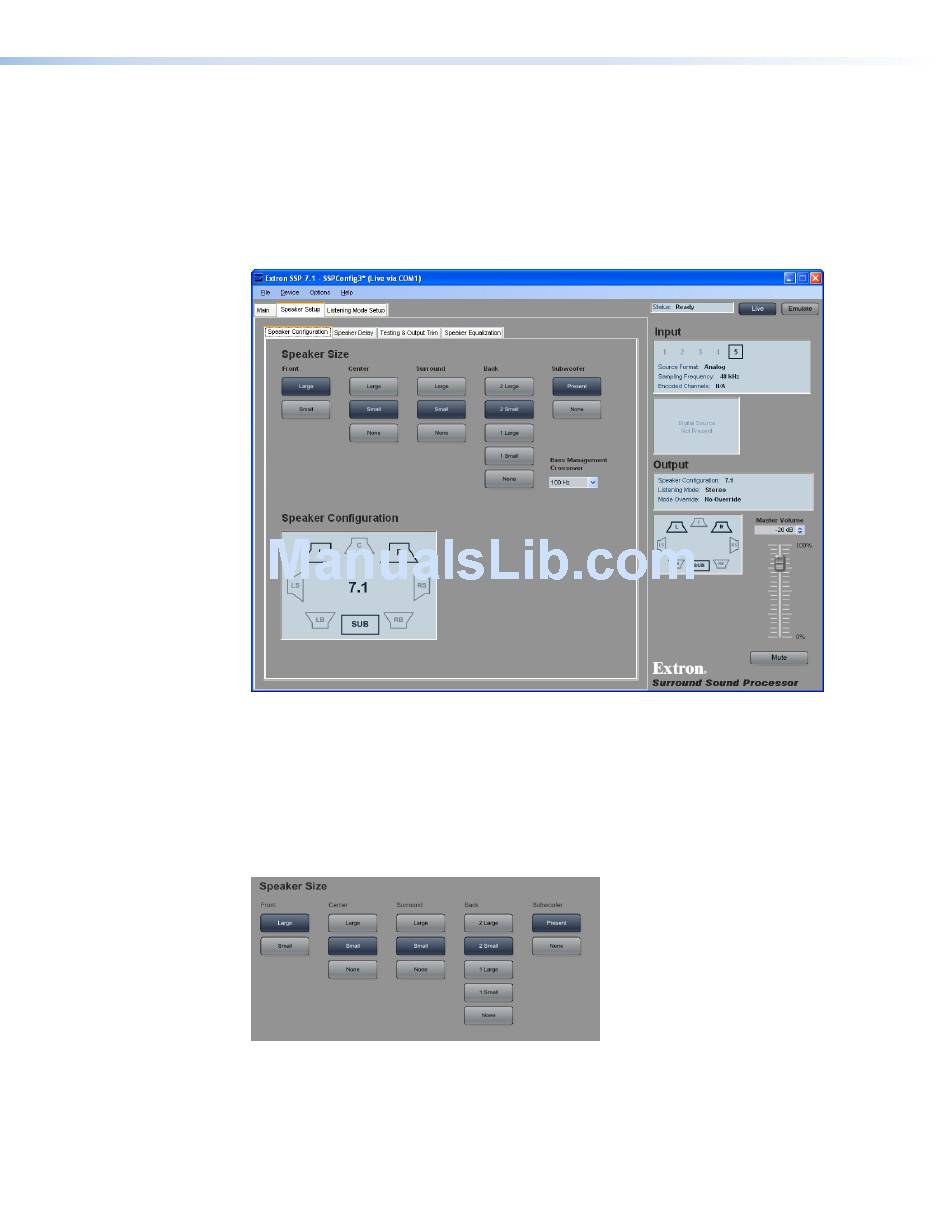

Figure 18.
Speaker size
Speaker size determines whether or not bass management applies to that speaker. For more
information about
Speaker size settings — All the buttons in a single column offer mutually exclusive
choices. Only one selection can be made from each column. For example, front speaker size
must be set to either 2 Large or 2 Small. It cannot be set to both values or neither value.
Figure 19.
•
Left and right front speakers and left and right surround speakers are set in pairs.
•
The center speaker is set as an individual speaker.
Trim, and Speaker Equalization).
Speaker Configuration Tab
bass management and speaker size, see pages 15 and
Speaker Size Settings
(Speaker Configuration,
SSP 7.1 • Setup and Control Software
Speaker Delay,
16.
