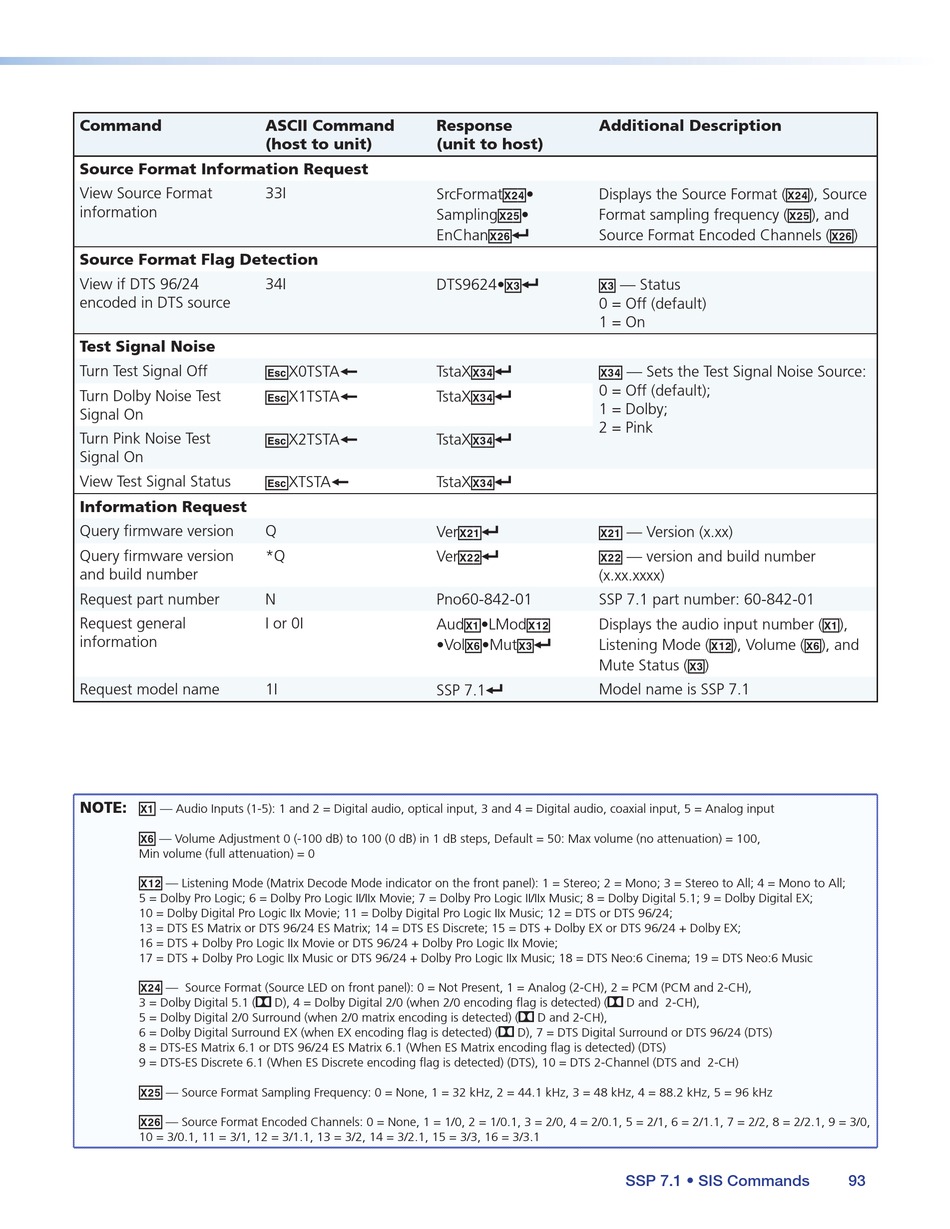

Extron electronics SSP 7.1 User Manual page 99

Command
Source Format Information Request
View Source Format
information
Source Format Flag Detection
View if DTS 96/24
encoded in DTS source
Test Signal Noise
Turn Test Signal Off
Turn Dolby Noise Test
Signal On
Turn Pink Noise Test
Signal On
View Test Signal Status
Information Request
Query firmware version
Query firmware version
and build number
Request part number
Request general
information
Request model name
X!
NOTE:
— Audio Inputs (1-5): 1 and 2 = Digital audio, optical input, 3 and 4 = Digital audio, coaxial input, 5 = Analog input
X^
— Volume Adjustment 0 (-100 dB) to 100 (0 dB) in 1 dB steps, Default = 50: Max volume (no attenuation) = 100,
Min volume (full attenuation) = 0
X1@
— Listening Mode (Matrix Decode Mode indicator on the front panel): 1 = Stereo; 2 = Mono; 3 = Stereo to All; 4 = Mono to All;
5 = Dolby Pro Logic; 6 = Dolby Pro Logic II/IIx Movie; 7 = Dolby Pro Logic II/IIx Music; 8 = Dolby Digital 5.1; 9 = Dolby Digital EX;
10 = Dolby Digital Pro Logic IIx Movie; 11 = Dolby Digital Pro Logic IIx Music; 12 = DTS or DTS 96/24;
13 = DTS ES Matrix or DTS 96/24 ES Matrix; 14 = DTS ES Discrete; 15 = DTS + Dolby EX or DTS 96/24 + Dolby EX;
16 = DTS + Dolby Pro Logic IIx Movie or DTS 96/24 + Dolby Pro Logic IIx Movie;
17 = DTS + Dolby Pro Logic IIx Music or DTS 96/24 + Dolby Pro Logic IIx Music; 18 = DTS Neo:6 Cinema; 19 = DTS Neo:6 Music
X2$
— Source Format (Source LED on front panel): 0 = Not Present, 1 = Analog (2-CH), 2 = PCM (PCM and 2-CH),
3 = Dolby Digital 5.1 (
5 = Dolby Digital 2/0 Surround (when 2/0 matrix encoding is detected) (
6 = Dolby Digital Surround EX (when EX encoding flag is detected) (
8 = DTS-ES Matrix 6.1 or DTS 96/24 ES Matrix 6.1 (When ES Matrix encoding flag is detected) (DTS)
9 = DTS-ES Discrete 6.1 (When ES Discrete encoding flag is detected) (DTS), 10 = DTS 2-Channel (DTS and 2-CH)
X2%
— Source Format Sampling Frequency: 0 = None, 1 = 32 kHz, 2 = 44.1 kHz, 3 = 48 kHz, 4 = 88.2 kHz, 5 = 96 kHz
X2^
— Source Format Encoded Channels: 0 = None, 1 = 1/0, 2 = 1/0.1, 3 = 2/0, 4 = 2/0.1, 5 = 2/1, 6 = 2/1.1, 7 = 2/2, 8 = 2/2.1, 9 = 3/0,
10 = 3/0.1, 11 = 3/1, 12 = 3/1.1, 13 = 3/2, 14 = 3/2.1, 15 = 3/3, 16 = 3/3.1
ASCII Command Response
(host to unit) (unit to host)
33I
SrcFormat
Sampling
EnChan
34I
DTS9624•
E }
X0TSTA TstaX
E }
X1TSTA TstaX
E }
X2TSTA TstaX
E }
XTSTA TstaX
Q
Ver
*Q
Ver
N Pno60-842-01
I or 0I
Aud
•Vol
1I
SSP 7.1
D), 4 = Dolby Digital 2/0 (when 2/0 encoding flag is detected) (
Additional Description
X2$
• Displays the Source Format (
X2%
• Format sampling frequency (
X2^]
Source Format Encoded Channels (
X#] X#
— Status
0 = Off (default)
1 = On
X3$] X3$
— Sets the Test Signal Noise Source:
0 = Off (default);
X3$]
1 = Dolby;
2 = Pink
X3$]
X3$]
X2!] X2!
— Version (x.xx)
X2@] X2@
— version and build number
(x.xx.xxxx)
SSP 7.1 part number: 60-842-01
X! X1@
•LMod Displays the audio input number (
X^ X#]
•Mut Listening Mode (
Mute Status (
] Model name is SSP 7.1
D and 2-CH),
D and 2-CH),
D), 7 = DTS Digital Surround or DTS 96/24 (DTS)
SSP 7.1 • SIS Commands
X2$
), Source
X2%
), and
X2^
)
X!
),
X1@ X^
), Volume ( ), and
X#
)
93
