Extron electronics StudioStation 100 Installation Manual

StudioStation • Installation Guide

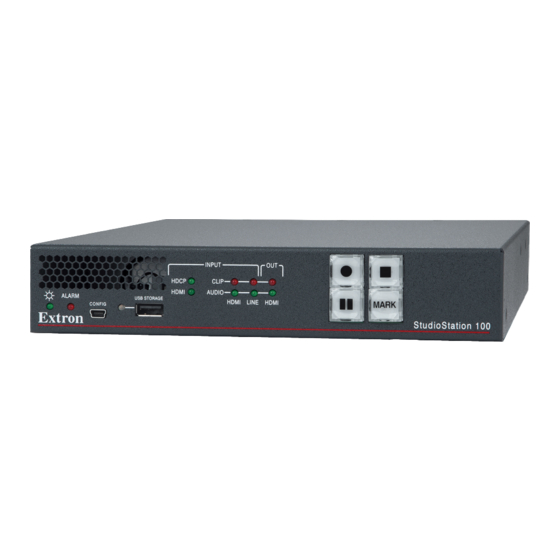

The Extron StudioStation is an easy-to-use single button recording system, which allows users to create recordings with the
touch of a button. The system integrates the StudioStation 100 Streaming Media Processor, a high definition recording and
streaming device, the RCP 101 EU for remote recording controls, the IPL T PC1 for remote AC power, and the SMB 212 to
surface mount the RCP 101 EU. The StudioStation 100 records MP4, M4V and M4A files of full screen HDMI video channel with
mixed audio, and metadata. The StudioStation is ideal for installation beneath conference tables and in lecterns.
The StudioStation turns the power output of the IPL T PC1 (or optional IPL T PCS4) on and off when it is triggered by thumb drive
detection on the RCP 101 EU. When the user inserts a properly formatted USB drive into the RCP 101 EU, the AC power port
of the IPL T PC1 turns on to power up all the attached recording equipment such as the camera, studio lights, and microphone.
Conversely, when the USB thumb drive is removed from the RCP 101 EU, the AC power port of the IPL T PC1 automatically
powers OFF the equipment.
Items included in StudioStation are:
• 1 StudioStation 100
• 1 IPL T PC1
NOTES:
• Throughout this guide, the IPL T PC1 refers to either the IPL T PC1 or IPL T PC1i.
• For full device configuration and operation details, see the StudioStation User Guide at
StudioStation Help File.
Installation Diagram
Camera & Lights
(not included)
POWER POWER STANDBY STANDBY
Wireless Microphone System
(not included)
Figure 1. Typical StudioStation Application
• 1 RCP 101 EU • 1 Flex55 102
• 1 SMB 212 • 1 Blank plate
Extron
HDMI
StudioStation 100
Streaming Media
Processor
ALARM
USB STORAGE
CONFIG
100-240V 0.7A
USB STORAGE
50-60 Hz
10 3
Audio
Extron
RCP 101 EU
Remote Control
Panel
• (1) 15' (4.5 m) USB Mini-B to USB type A cable
• (1) 6' (1.8 m) RJ-45 network crossover cable
Power
INPUT OUT
HDCP CLIP
HDMI AUDIO MARK
HDMI LINE HDMI
SMP 111
STREAMING MEDIA PROCESSOR
SMP 111
INPUTS OUTPUT REMOTE
AUDIO +12V
RS-232 CONTROL
1.0A MAX RESET
L LINE R
HDMI HDMI
Tx Rx G
LAN
4 9 5 6 7
USB Power
1
RECORD
2
MARK
USB STORAGE
Extron
11
USB Drive
www.extron.com or
Extron
IPL T PC1i
IP Link AC Power and
Device Controller
IPL T PC1
POWER
100
R
TX INPUT
LINK
RX IR ACT
US
200-240V ~ 50/60Hz ®
COM LISTED 17TT
AUDIO/VIDEO
APARATUS
TX RX +5V
LAN
INPUT IR
IN S G
POWER OUTPUT 10A MAX
10A MAX
OR
Extron
IPL T PC1
IP Link AC Power and
Device Controller
IPL T PC1
POWER
100
R
TX INPUT LINK
RX IR
ACT
US
®
100-120VAC 50/60Hz
COM LISTED 17TT
AUDIO/VIDEO
APARATUS
TX RX +5V
LAN
INPUT IR
IN S G
POWER OUTPUT 12A MAX
12A MAX
10 8 7
Crossover
Extron
SMB 212
Two-gang Surface
Mount Box
1
