Speaker Equalization Tab

Testing & Output Trim
After the

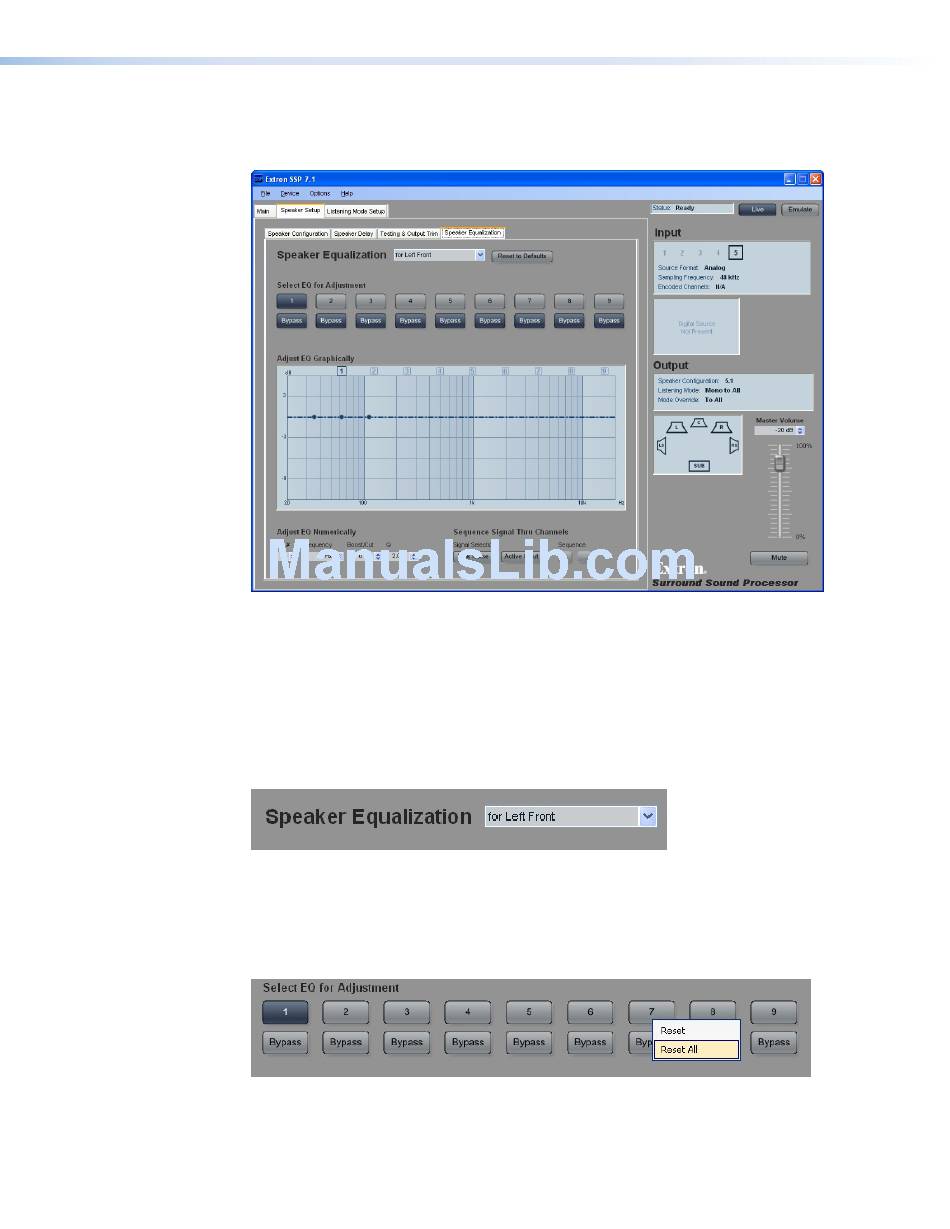

Figure 25.
The Speaker Equalization tab provides nine parametric EQs for each output channel. The
default frequency values correspond to a nine-band graphic equalizer, which provides a
starting point for refining the output signal from each speaker channel.
All the properties of the SSP 7.1 parametric EQs can be defined by the user.
Speaker selection
Select the speaker to be configured from the drop-down menu.
Figure 26.
EQ selection
Select the EQ to be adjusted (1-9) by pressing the desired numbered button and deactivating
the corresponding Bypass button. The numbered buttons are a mutually exclusive set (only
one button can be activated at a time). By default all EQs are bypassed.
Figure 27.
tab, configure the Speaker Equalization tab.
Speaker Equalization Tab
Speaker Selection Menu
EQ Band Selection Buttons
SSP 7.1 • Setup and Control Software 41
