- Page 1 im Vertrieb von CAMBOARD Electronics CIA1 1 6 TABLE / RACK MOUNT COMPUTER INTERFACE WITH MODULAR A / V FACEPLATE CIA116 WITH TABLE MOUNT BRACKETS (INCLUDED) CIA116 WITH OPTIONAL RACK EARS CIA 1 1 6 OPERATION MANUAL www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...
-
Page 2: Fcc Compliance
im Vertrieb von CAMBOARD Electronics Installation and Safety Instructions For Models without a Power Switch: The socket outlet shall be installed near the equipment and shall be accessible. For all Models: No serviceable parts inside the unit. Refer service to a qualified technician. For Models with Internal or External Fuses: For continued protection against fire hazard, replace only with same type and rating of fuse. -
Page 3: Product Overview
im Vertrieb von CAMBOARD Electronics Product Overview DESCRIPTION The CIA116 is a high-performance computer interface for analog video and stereo audio signals. The unit is compatible with a variety of analog video signals including VGA, SVGA, XGA, SXGA, UXGA, ® Macintosh , Sun , SGI... - Page 4 im Vertrieb von CAMBOARD Electronics • Dual Front Panel A/C Power Outlets - provide a convenient place to plug in a laptop computer, CD player or other portable A/V device. • Available in Six Different Models to Match Decor and Regional Power Outlet Style: CIA116-1 - Interface with (2) Edison A/C Convenience Outlets - Black Finish.
-
Page 5: Installation
im Vertrieb von CAMBOARD Electronics Installation CAUTION: Installation of the CIA116 must only be carried out by qualified technicians. This section offers step-by-step instructions for installing the CIA116. An Application Diagram is provided on page 6, and Front and Rear Panel Connector and Control Diagrams are on page 7. Note: Read the instructions carefully before initiating the installation procedure. - Page 6 im Vertrieb von CAMBOARD Electronics Unbalanced Output - connect to the Left, Right and Ground connectors. Balanced Output - connect to Left +, Left-, Right+, Right- and Ground connectors. 5LJKW 5LJKW 5LJKW *URXQG 5LJKW 5LJKW *URXQG /HIW *URXQG /HIW *URXQG /HIW /HIW ...
-
Page 7: Adapter / Extension Cables For Input And Local Monitor Output
im Vertrieb von CAMBOARD Electronics ADAPTER / EXTENSION CABLES FOR INPUT AND LOCAL MONITOR OUTPUT The CIA116 has 15-pin HD VGA-type input and local monitor output connector ports. The following cables / adapters are available: Computer 3’ 6’ 12’ 25’ 35’... - Page 8 im Vertrieb von CAMBOARD Electronics www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...

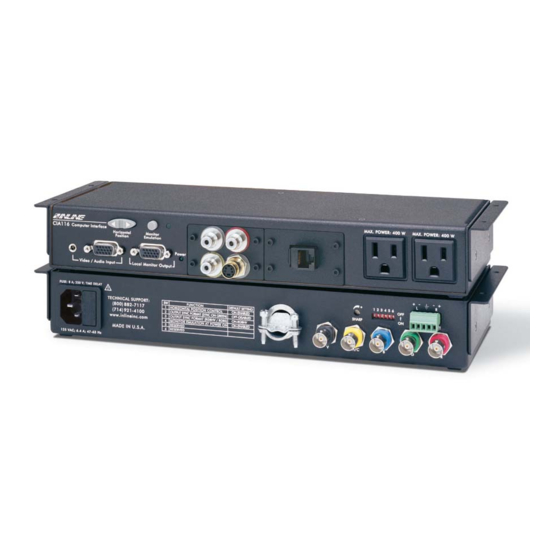

- Page 9 im Vertrieb von CAMBOARD Electronics CIA116 FRONT PANEL CONNECTORS AND CONTROLS Horizontal Monitor Position Emulation with A / V Control LED Indicator Connector Modules Stereo Video Local Power Audio Input Monitor Indicator Input Output Convenience Outlets CIA116 REAR CONNECTORS AND CONTROLS Audio A / V Connector Output...
-
Page 10: Horizontal Position Control
im Vertrieb von CAMBOARD Electronics HORIZONTAL POSITION CONTROL The location of the horizontal position control is shown in the Front Panel Connectors and Controls Diagram on the previous page. Press and release the rocker button to shift the image by one step to the left or right. -
Page 11: Dip Switch Settings
im Vertrieb von CAMBOARD Electronics DIPSWITCH SETTINGS Most installations will not require any changes to the dipswitch settings. The factory default and specialized dipswitch settings are indicated below. Factory Default Settings: Dipswitches ON: 1, 3 & 4 Horizontal Position Control: Enabled Signal Format: RGBHV... -
Page 12: Specifications
im Vertrieb von CAMBOARD Electronics Specifications CIA116 Table Mount / Rack Mount Computer Interface Input Connector Type (1) 15-pin HD female - standard VGA pin-outs RGB Video Signals Analog, 1.5 Vp-p max. Input Impedance 75 ohm Sync Signals TTL compatible Horizontal Scan Rate 30 KHz - 130 KHz Vertical Sync Range... -
Page 13: Troubleshooting
im Vertrieb von CAMBOARD Electronics Required Accessories (Ordered Separately) Input and Local Monitor Adapter and Extension Cables: VGA: IN8000 Series 15-pin HD male to 15-pin HD female, various lengths from 3’ to 100’ For Other Computers: Refer to the table on page 5 Optional Accessories Audio Input Cables: IN9106: 3.5mm stereo mini male to 3.5mm stereo mini male, 6’... - Page 14 im Vertrieb von CAMBOARD Electronics Problem: The power LED is on but there is no image on the display device. Œ Solution: Check the RGBHV cable connections at the interface output and at the display device input to make sure that the vertical and horizontal sync wires are not reversed.
-
Page 15: A/V Connector Modules
im Vertrieb von CAMBOARD Electronics A/V CONNECTOR MODULES Connector Module Black / White Description Type Size Video Modules IN9351B / IN9351W (2) BNC Female Barrel Single IN9352B / IN9352W (1) 4-Pin Mini DIN Female (S-Video) Installation Single IN9357B / IN9357W (2) F-Connector Female Barrel Single... - Page 16 im Vertrieb von CAMBOARD Electronics Connector Module Black / White Description Type Size Control / Computer Modules IN9356B / IN9356W (1) 5-Pin Captive Screw Terminal Installation Single (1) Contact Closure Switch (Momentary - Single IN9360B / IN9360W Pole with LED) Installation Single (1) 3.5mm Stereo Mini Female...
- Page 17 im Vertrieb von CAMBOARD Electronics CIA116 DIMENSIONS ” ” ” 11.75 12.25 CIA116 - Top 0.25 ” ” ” ” 11.75 CIA116 - Front ” 4.28 CIA116 - Side Optional Rack Mounting Brackets ” 6.25 ” ©2001 - INLINE, Inc. CIA116 Operation Manual - V1.3 01/03/01 www.camboard.de Tel.
-
Page 18: Warranty
im Vertrieb von CAMBOARD Electronics Warranty ♦ INLINE warrants the equipment it manufactures to be free from defects in materials and workmanship. ♦ If equipment fails because of such defects and INLINE is notified within two (2) years from the date of shipment, INLINE will, at its option, repair or replace the equipment at its plant, provided that the equipment has not been subjected to mechanical, electrical or other abuse or modifications.
