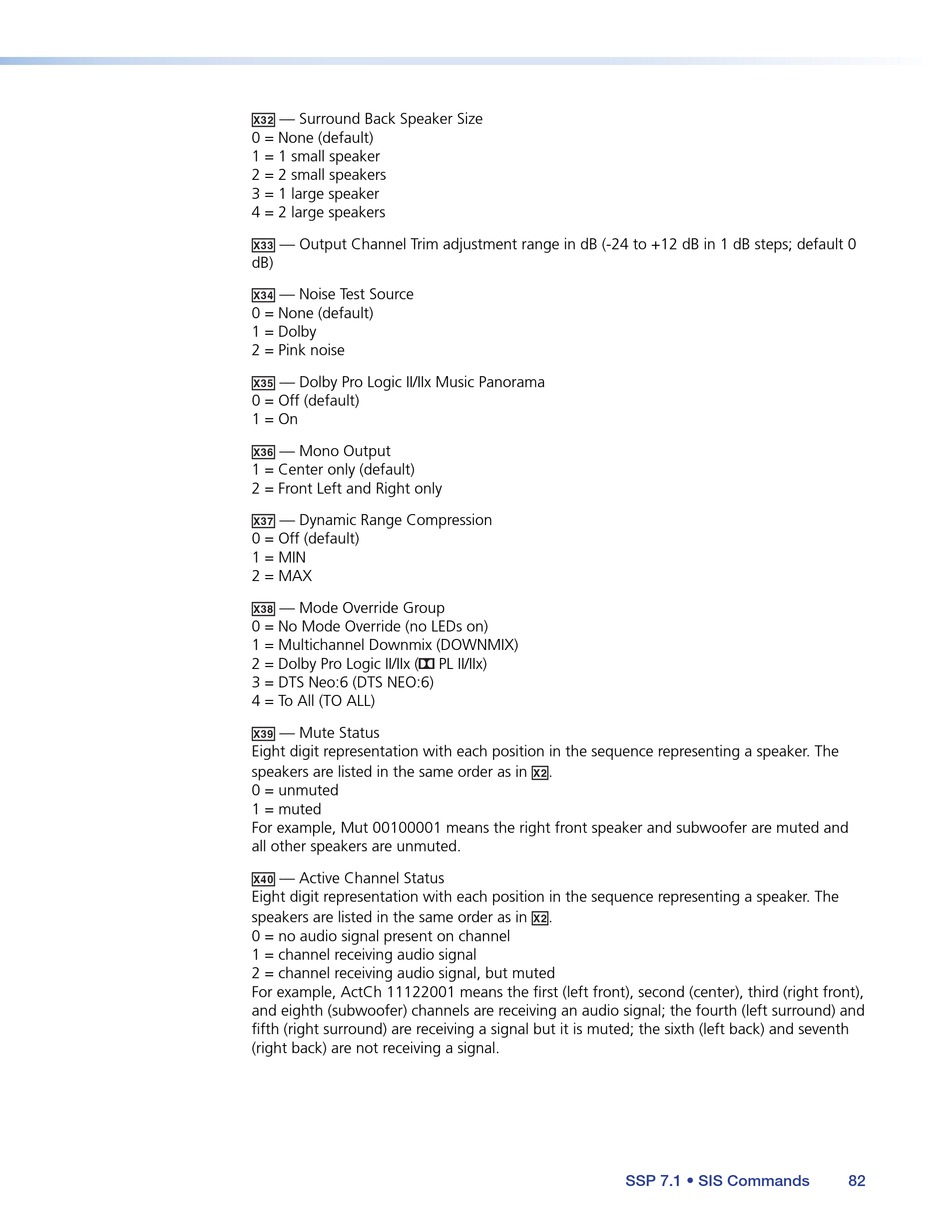

X3@
— Surround Back Speaker Size
0 = None (default)
1 = 1 small speaker
2 = 2 small speakers
3 = 1 large speaker
4 = 2 large speakers
X3#
— Output Channel Trim adjustment range in dB (-24 to +12 dB in 1 dB steps; default 0
dB)
X3$
— Noise Test Source
0 = None (default)
1 = Dolby
2 = Pink noise
X3%
— Dolby Pro Logic II/IIx Music Panorama
0 = Off (default)
1 = On
X3^
— Mono Output
1 = Center only (default)
2 = Front Left and Right only
X3&
— Dynamic Range Compression
0 = Off (default)
1 = MIN
2 = MAX
X3*
— Mode Override Group
0 = No Mode Override (no LEDs on)
1 = Multichannel Downmix (DOWNMIX)
2 = Dolby Pro Logic II/IIx (
3 = DTS Neo:6 (DTS NEO:6)
4 = To All (TO ALL)
X3(
— Mute Status
Eight digit representation with each position in the sequence representing a speaker. The
speakers are listed in the same order as in
0 = unmuted
1 = muted
For example, Mut 00100001 means the right front speaker and subwoofer are muted and
all other speakers are unmuted.
X4)
— Active Channel Status
Eight digit representation with each position in the sequence representing a speaker. The
speakers are listed in the same order as in
0 = no audio signal present on channel
1 = channel receiving audio signal
2 = channel receiving audio signal, but muted
For example, ActCh 11122001 means the first (left front), second (center), third (right front),
and eighth (subwoofer) channels are receiving an audio signal; the fourth (left surround) and
fifth (right surround) are receiving a signal but it is muted; the sixth (left back) and seventh
(right back) are not receiving a signal.
PL II/IIx)
X@
.
X@
.
SSP 7.1 • SIS Commands 82
